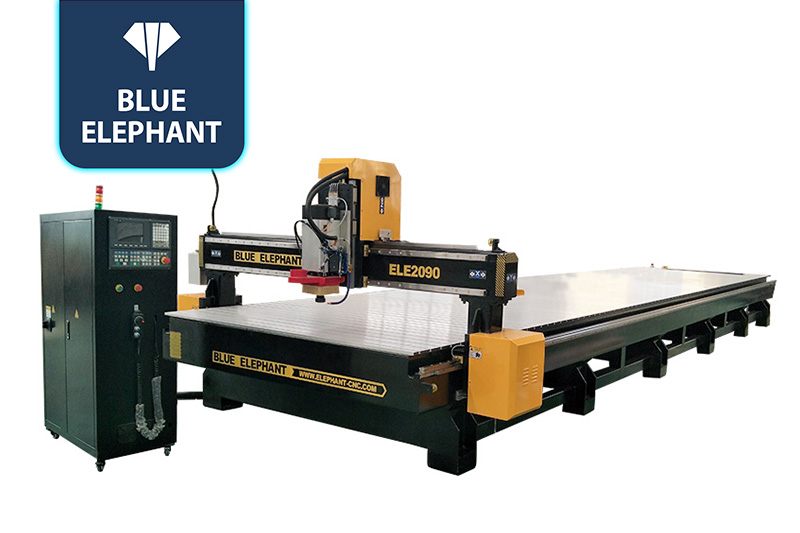

Large 2090 CNC Woodworking Machine in CA ,US for Sale

☆It is a super-large 3 axis CNC router with a 2000*9000mm working table. It is tailor-made for our customer to support his ship business.

CNC Router Machines Video

FEATURES

  • It adopts the Germany LROSA linear square guide rail to acquire much more precision.
  • 13.5kw HSD air cooling spindle can provide strong working power when cutting and engraving non metals or soft metals.
  • Using an automatic oil mist cooling system, which is suitable for processing aluminum.

Parameters

Model ELECNC-2090
Working Area 2000*9000*200mm
Working Voltage 380V,3Phase,50Hz (Option)
Control System Taiwan SYNTEC 6MB Control System with handle
Spindle 13.5kw HSD Brand Air cooling spindle, manual tool change spindle
Spindle Speed 0-24000rpm
Inverter 15KW Taiwan DELTA Inverter
Motor & Driver Japan FUJI 1.5kw servo motor and drive
Table Surface T-slot with PVC covered
Lubrication System Auto Lubrication System
Gantry Structure Gantry Moving
Option Automatic Oil Mist Cooling
Frame New Type Heavy Duty Body
X,Y axis Helical rack and LROSA Linear Square Guide rail
Z axis TBI Ball screw transmission and LROSA Linear Square Guide rail for 3 axis
Dust Collection System 5.5KW New Type Double Bag Dust Collection System
Tool Sensor Auto Tool Sensor Calibration
Wire High Soft Shield with Copper Wire to Protect Against Static Electricity

Application

CNC Routers for wood working have wide applications in not only the wood working field but also the following industries: advertising, crafts, artworks, molding, electronics, construction, printing and packaging, decoration, tombstone, crystal products, etc. The most common purpose of the CNC wood cutting machine is to make panel furniture. For example, cabinets, cabinet doors, doors, office desks, etc.

Production Facility

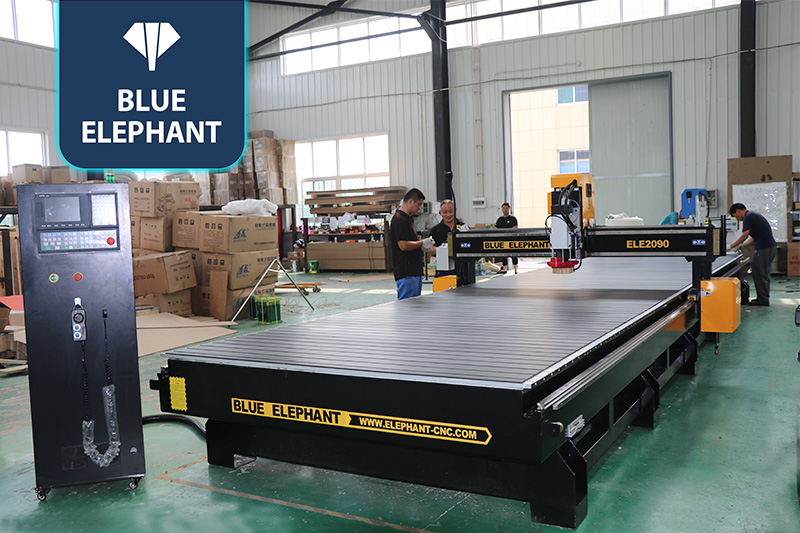

Blue Elephant CNC Factory View

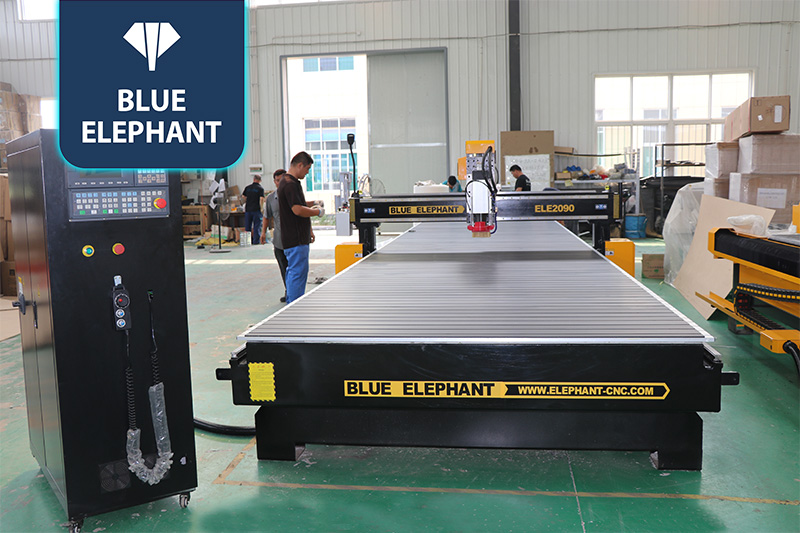

Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

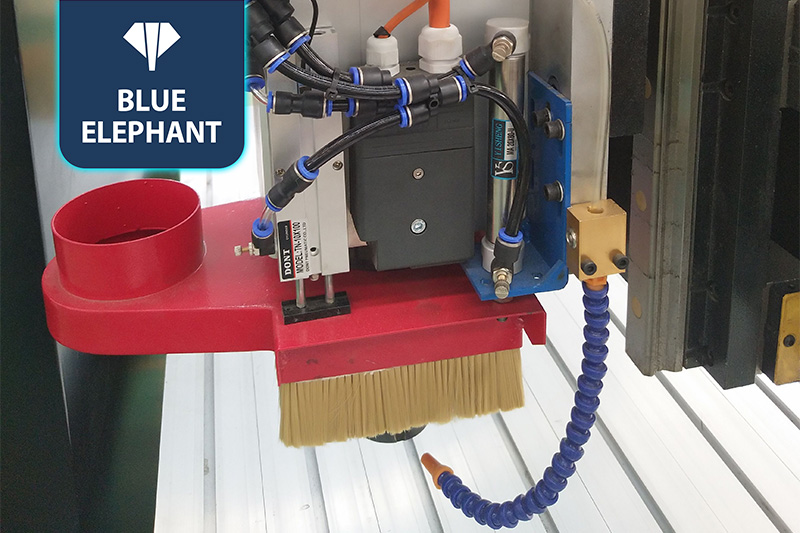

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
