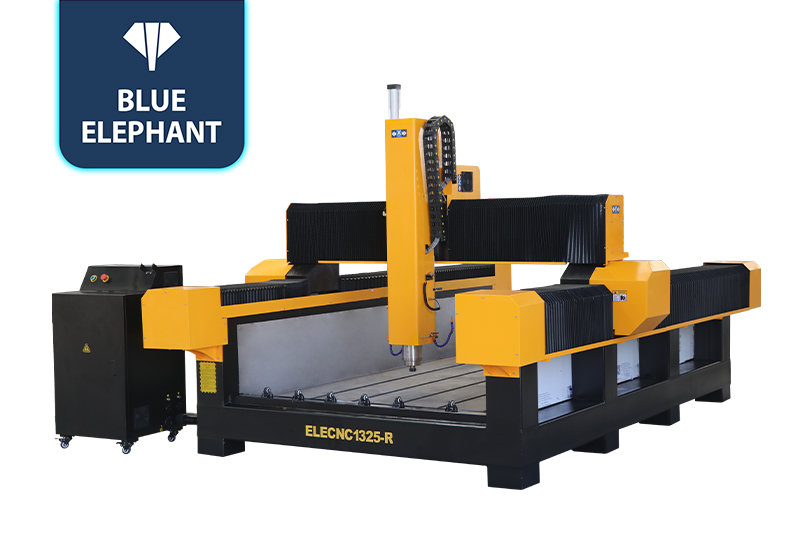

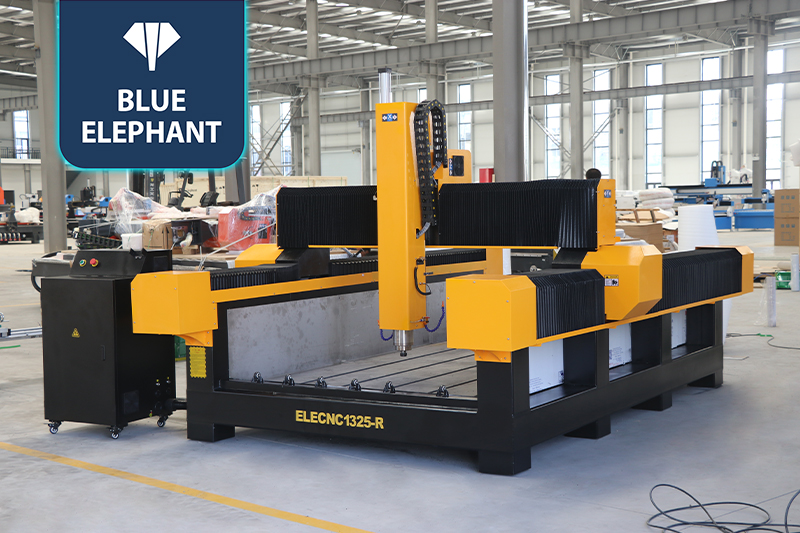

3D 1325 ATC Rotary Axis Stone CNC Router at Cost

☆This machine can change tools automatically. And with high-quality and world-class cnc software, the machine can achieve high efficiency and high precision.

Stone Engraving Machines Video

features

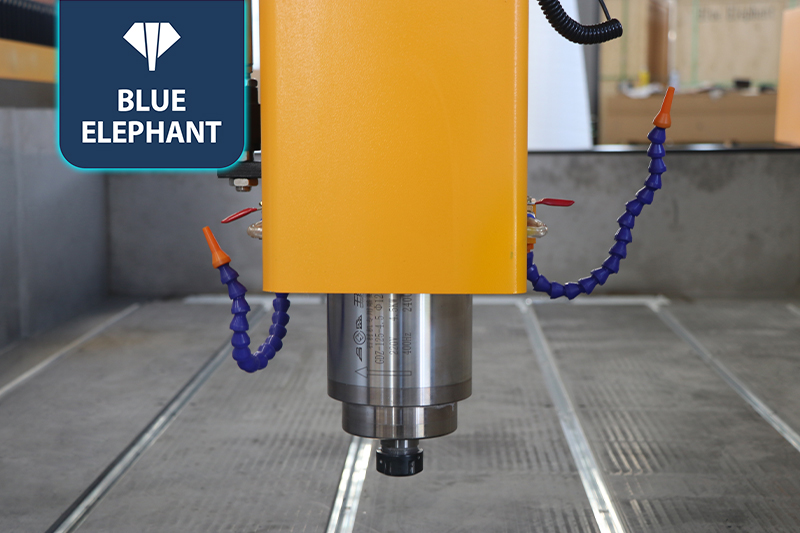

  • Changsheng water cooling spindle has the features of fast cutting speed, low noise, cheap cost, etc.
  • Taiwan Syntec control system can keep good machining stability during the processing.
  • Auto lubrication system can save labor, improve operational efficiency, and prolong the life of lubricated components.

Parameters

Descriptions Parameters
Working Area 1300*2500*600mm
Spindle CS water cooling spindle+ water cooling sprayer
Linear guide Taiwan PMI #25 linear guide line
Motor and driver Fl118 stepper motor+Yako 2811 drive
Rotary device 200mm diameter
Software Artcam or Aspire
Inverter Fuling inverter
Working table T-slot working table +water tank
Control system DSP B18

Application

Stone CNC engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, plastic, chemical composite board, and other materials. It is widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, drain tanks, etc.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
