Custom 3D CNC Router Wood C N C Machine for Purchase in Iran for Sale

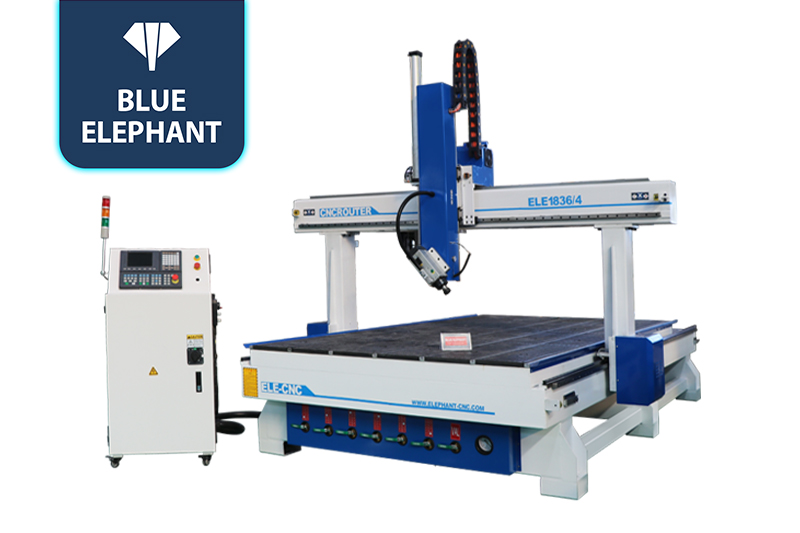

☆This customized CNC router machine is provided with a large working size and a big Z-axis travel. It is widely used to process three-dimensional foam and wooden molds and statues. All parts and components are high-quality products to ensure long service life.

4 Axis CNC Router Machines Video

Features

  • Custom worktable size and high Z-axis travel can meet customers’ processing demands effectively.
  • The rotary CNC router spindle and high Z-axis travel enable this CNC router to process large-sized and tall wood statues.
  • The whole vacuum worktable has a strong adsorption capacity to prevent the panel from sliding or moving during operation.

Parameters

Descriptions Parameters
Model ELE1836
Working area 1800*3660*600mm
Control system SYNTEC 6MB control system
Working Voltage 380V,50HZ,3Phases

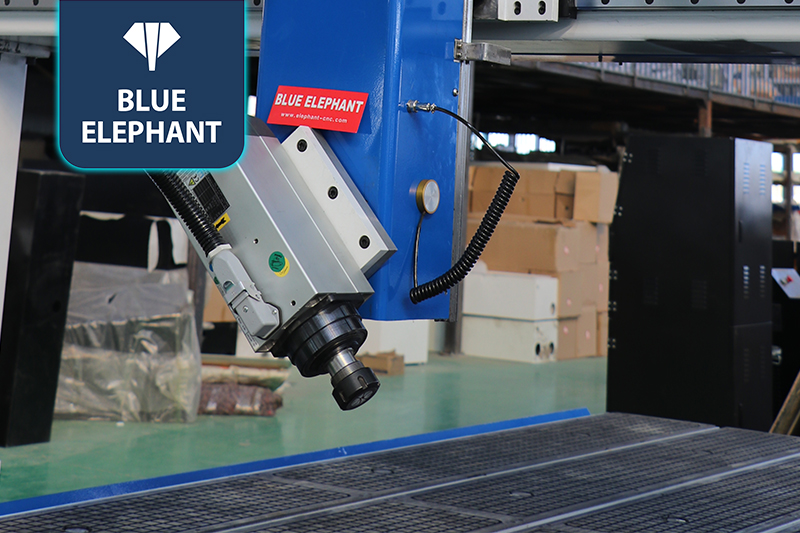

Spindle Italy 6kw HSD air cooling spindle rotating +-90 degree
Spindle speed 0-18000rpm
Inverter 7.5KW Taiwan Delta inverter
Motor and Driver Japan YASKAWA 750w servo motor and driver
Table surface T-slot and vacuum working table
Structure Industrial class square tube strong structure
Lubrication system Automatic lubrication system
Transmission ABBA linear guide for X,Y,Z axis

Helical rack on X, Y axis and Taiwan Ball Screw on Z axis

Vacuum pump 7.5kw air type vacuum pump
Limited switch Japan Omron
Software UG

Application

4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.

Production Facility

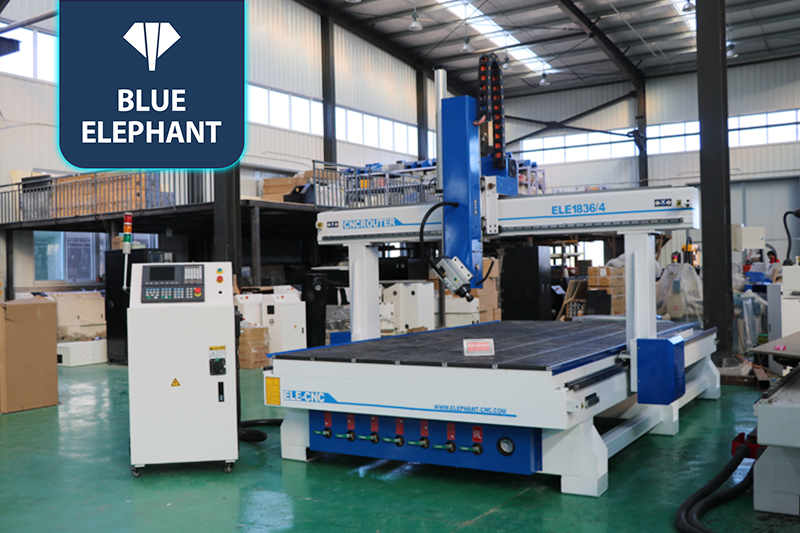

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images

Get Price & Details
