The best 4 axis CNC router 3D engraving machine for sale in Russia and Australia at affordable prices

☆This is one of the best-selling rotary axis CNC routers for carving and engraving 3D parts in the woodworking, decoration, and craft industries. It can process both 2D and 3D products with fast speed and high precision. It’s quite popular with small workshop keepers and individual woodworkers.

Rotary Axis CNC Router Machines Video

The rotary axis is installed beside the worktable and used to carve and engrave cylindrical parts, such as handrails, balusters, furniture legs, building columns, etc.
Its new-type big square tube welded structure is rigid and strong, preventing the machine from deformation and vibration during operation.
Specifications of this CNC router machine can be customized to meet different processing demands.

Parameters

Description Parameter
X,Y,Z Working Area 1300x2500x300mm
Table Surface Vacuum and T-slot working table
Structure New type big square tube welded structure
X, Y Structure Rack and Pinion Drive, Taiwan HIWIN Linear guide Rail
Z Structure TBI Ball Screw

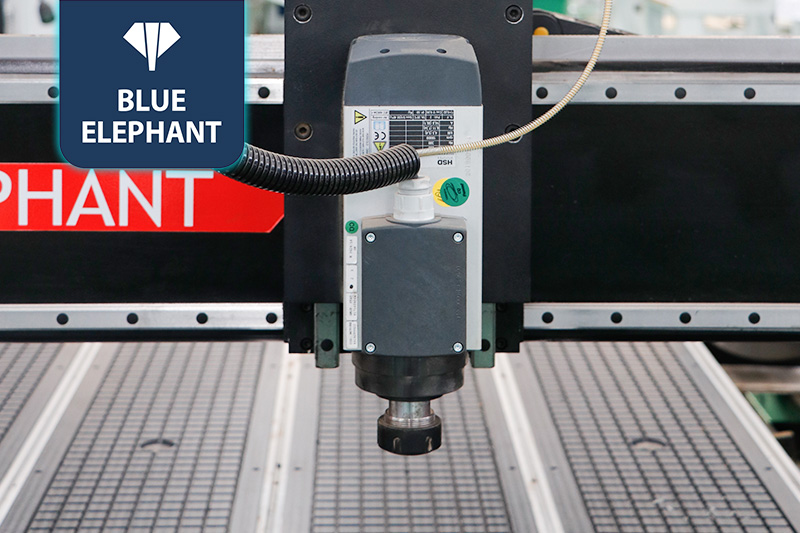

Spindle Power 4.5kw Italy HSD air cooling spindle
Spindle Speed 0-18000RPM
Driver and Motors FL118 Stepper motor and YAKO driver
Working Voltage AC220V,60Hz,3PH
Command Language G Code
Operating System Mach3 4 axis control System
Computer Interface USB

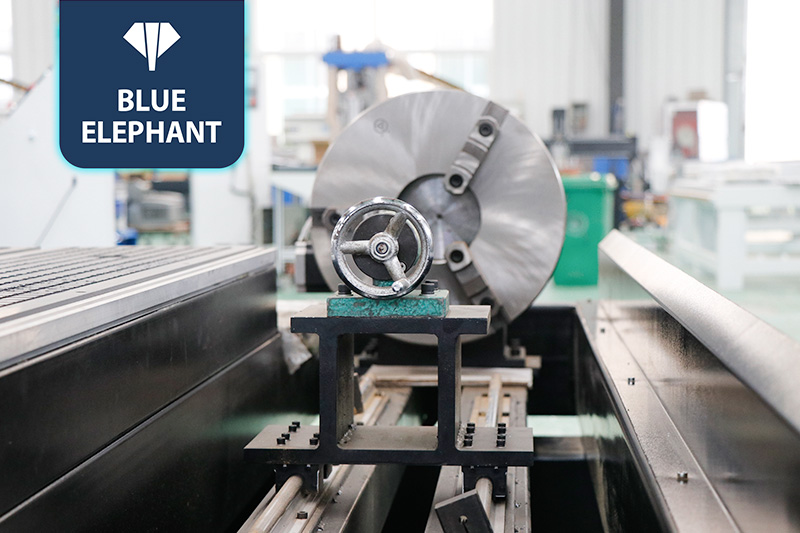

Rotary device 400mm diameter*2000mm length
Software Compatibility ARTCAM Software
Dust collector 1.5kw new type double packet dust collector
Vacuum pump 5.5kw water circulation vacuum pump

Application

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images

Get Price & Details
