4th Axis CNC Router with Water-cooled Spindle for sale in US and Philippines at a very affordable price

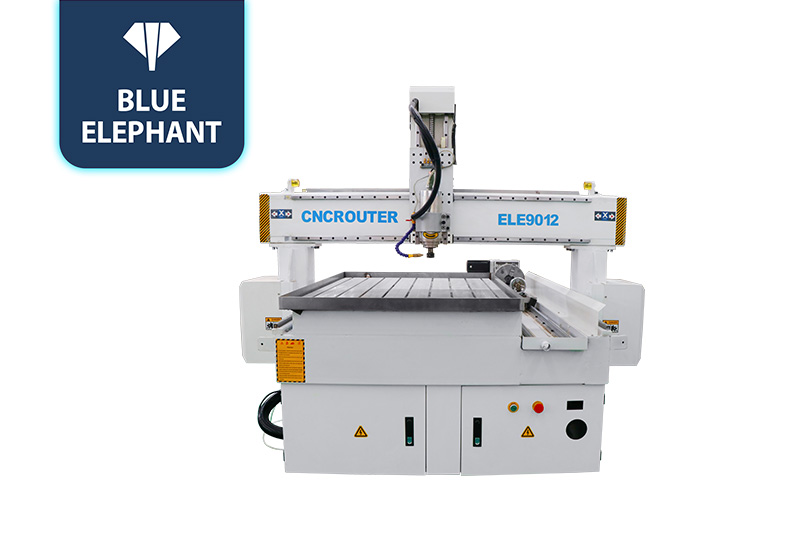

☆This is an economical custom CNC router with a 900x1200mm worktable and a rotary device. Adopting a water-cooled spindle and aluminum table, it can process hard and heavy workpieces. It is suitable for the woodworking and stoneworking of small businesses.
Rotary Axis CNC Router Machines Video
Features

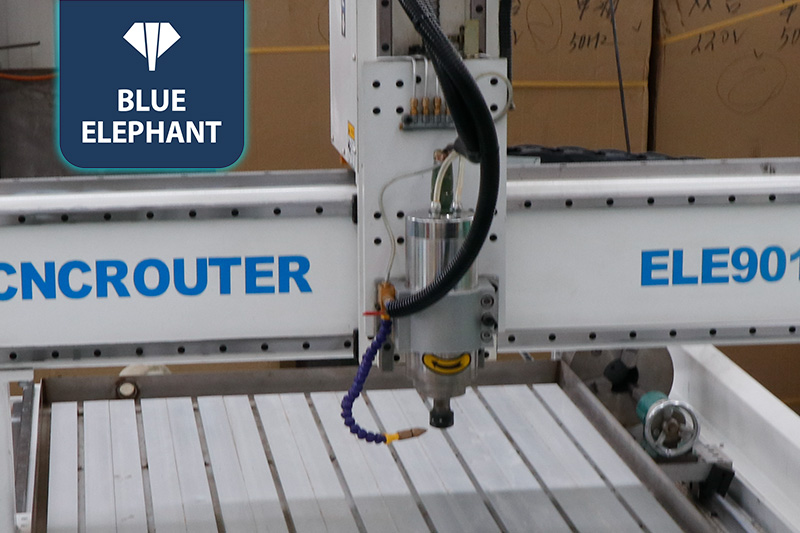

It uses an aluminum T-slot worktable with a water tank to facilitate the use of water-cooled spindles.

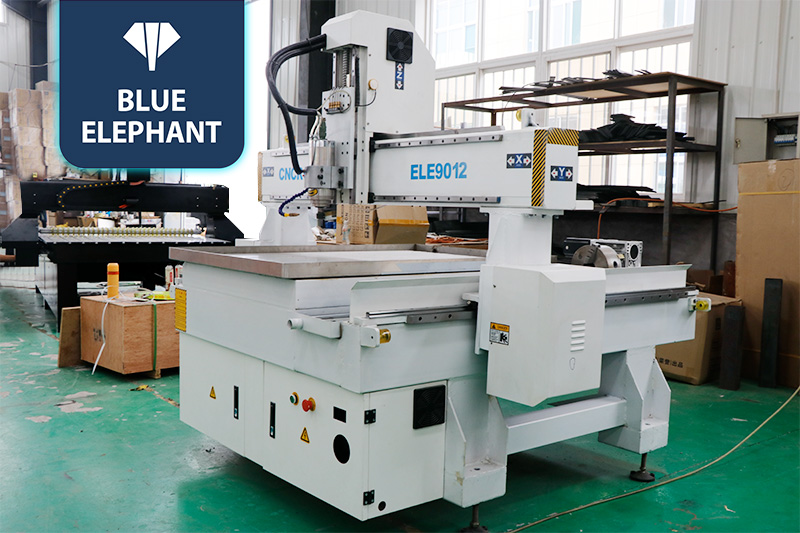

The control cabinet is built under the machine bed, saving space and costs.

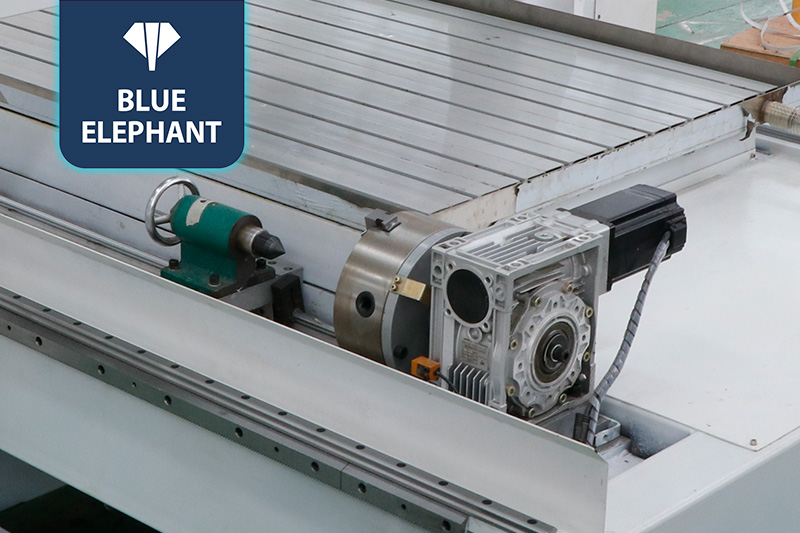

The rotary axis is installed beside the worktable and used to carve and engrave cylindrical parts.
Parameters
Description Parameter
Model ELECNC-9012-4
X,Y,Z Working Area 900*1200*200mm
Table Surface T-slot working table with a water tank
Structure 10-12mm industrial class square tube strong structure
X Y Z Structure
Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel;
all axis Sweden SKF group ABBA linear guide and rails, 20#
Max. Working Speed 12000m/min
Spindle Changsheng 3KW water cooling spindle
Spindle Speed 0-24000RPM
Option
Oil mist cooling system for choice;
Rotary attachment for cylinder objects making
Drive Motors Leadshine servo motor and drive
Inverter Fuling 3.7KW inverter
Command Language G Code
Control System Mach3 4 axis control with USB port
Computer Interface USB
Lubrication Manual Lubrication system
Tool sensor Manual tool sensor calibration
X,Y Resolution <0.01mm
Spare parts
Japan OMRON limit switch for X, Y, Z axis;
Highly flexible towline, fire-resistant double-sheathed Shanghai Cardiff cable;
French Schneider electric parts ;
Control box inside
Software Compatibility Artcam 2012 software for free, (Option: Artcam Type3 Software)
Working voltage 380V/50HZ/3PH or option
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
