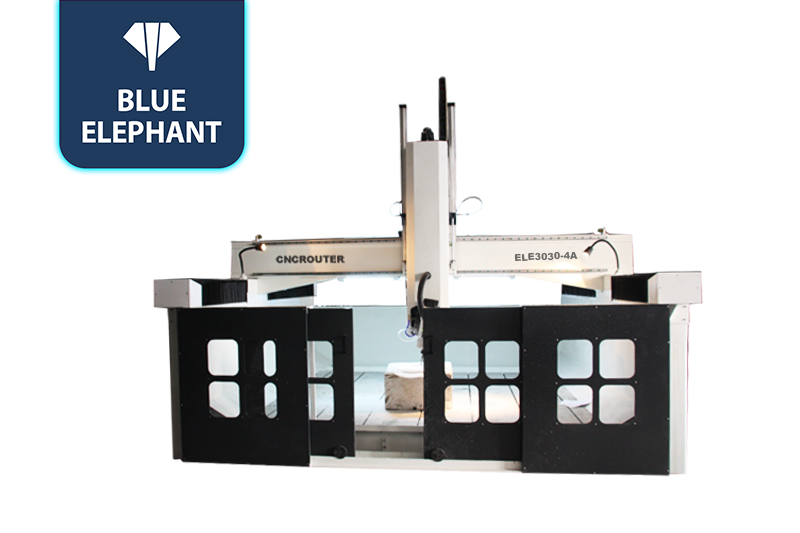

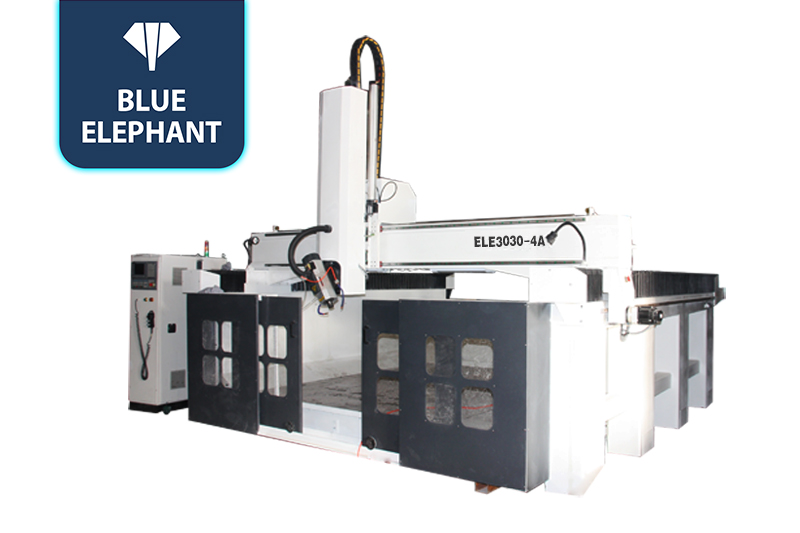

Best 5 Axis Styrofoam EPS Cnc Cutting Machine in France, UK, CA for Sale

☆This is an economical foam c and c router machine designed with high z axis. It is widely used in the 3D mold manufacturing industry, automotive industry, trains and other wooden molds making.

CNC Router Machines Video

features

  • Adopts cast iron welded structure, it can ensure high stability during the processing.
  • Using 9kw HSD ATC spindle, which can reach the speed at 24000rpm/min.
  • All the machine components can be customized according to your needs.

Parameters

X,Y,Z Working Area 3000x30000x1000mm*180°
X,Y,Z Traveling Positioning Accuracy ±0.01/300mm
X,Y,Z repositioning Accuracy ±0.01mm
Table Surface Milling steel table (T-slot)
Frame Welded structure (cast iron)
X, Y Structure Oblique Rack and Pinion Drive from Taiwan, Hiwin Rail Linear Bearings:

X axis, Y axis, 30mm

Z Structure Ball Screw, Hiwin Rail Linear Bearings :

Z axis, 25mm

Max. Power Consumption (Without spindle)  6.5Kw
Max. Rapid Travel Rate 40000mm/min
Max. Working Speed 25000mm/min
Spindle Power 9KW Italy HSD ATC air cooling spindle
Spindle Speed 24000RPM
Drive Motors Yaskawa servo system : 1.3kw

Z axis is with band brake

Working Voltage AC380V/50/60Hz,3PH (Option: 220V))
Command Language G code
Operating System Syntec control System (Osai for option)
Computer Interface Ethernet
Flash Memory 256 M(with CF card)
tool holder ISO 30
X,Y Resolution  <0.01mm
Software Compatibility Type3, Ucancam, Art cam, UG, Powermill
Running Environment  Temperature 0degree – 45 degree
Relative Humidity 30% – 75%
Packing Size 2300X4800X1900mm (in parts)
N.W. 7300KG
G.W. 8000KG
Guarantee One year from the date of commission
Optional Parts Air cooling spindle or Water cooling spindle
Dust collector
Rotary system
Mist-cooling system
Panasonic Servo motors/Delta servo motors

Application

Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.
Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials. Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.
