Upgrade Sheet Metal Laser Cutting Machine in Spain, Italy, Lithuania Price

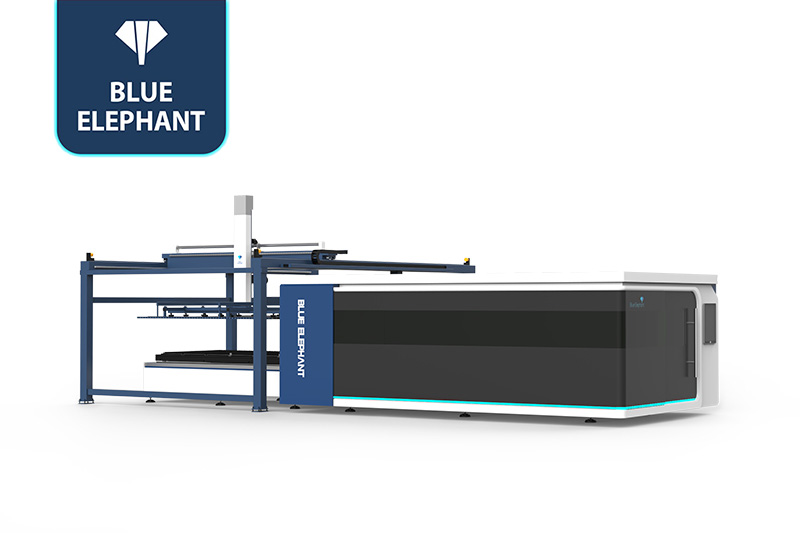

☆This laser metal cutting machine equipped with an automatic loading and unloading system, which significantly improves working efficiency.
Laser CNC Machines Video
Features

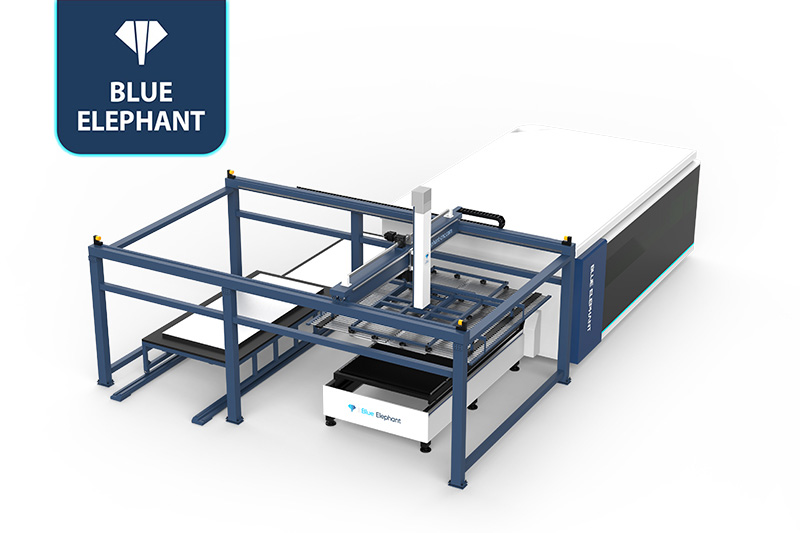

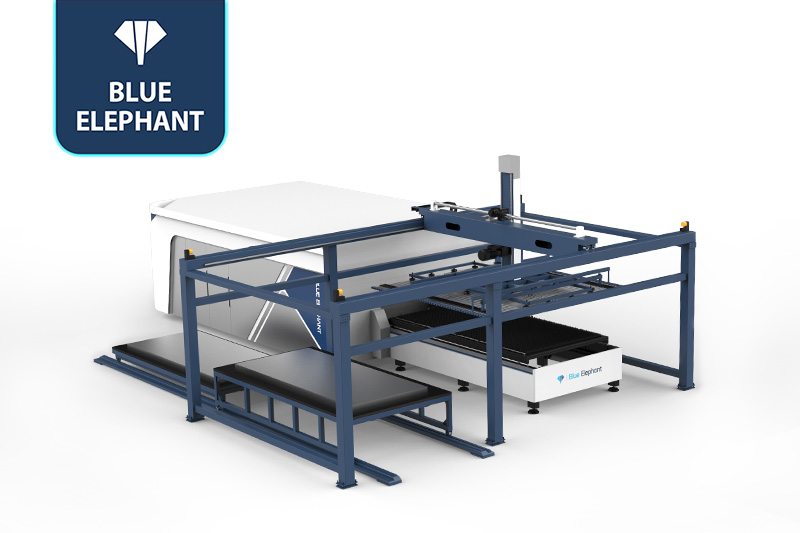

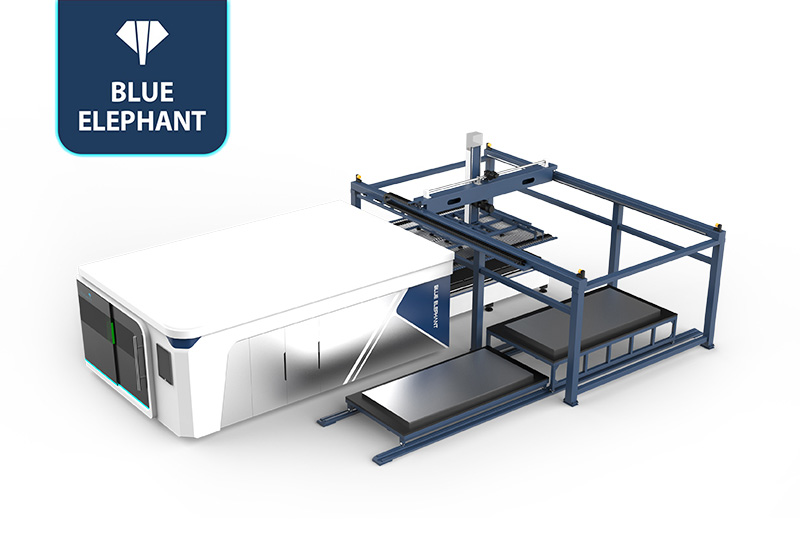

- Automatic loading and unloading system can realize full automation to ensure the process is unattended.
- Two platforms can exchange automatically with the exchanging time of 20s to 25s, which greatly improves work efficiency.
- The automatic focusing laser head reduces human interference with a focusing speed of 10m/min and repeated positioning accuracy of 50um.
The Tube Welded Bed
High strength, not easily deformed
Heavy duty design ensures that the bed will not be deformed for many years, it is more stronger and has a high tensile.
More stable
We choose rectangular tubes with thicker wall than common machines. It is well welded, and make the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.
Aviation Aluminum Gantry
High hardness
Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
High speed
Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.
Raytools
Optimized optical configuration and smooth and efficient airflow design;
Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;
A variety of fiber interfaces for adapting to a variety of fiber lasers;
The collimating mirror, focusing mirror and nozzle have a cooling structure.
Parameters
| Model | ELECNC-1530AS | ELECNC-2040AS | ELECNC-2060AS |
| Working area | 1515*3030mm | 2020*4040mm | 2020*6050mm |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Repositioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Min. sheet thickness | 1mm | 1mm | 1mm |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| X axis speed | 25m/min | 25m/min | 25m/min |
| Z axis speed | 20m/min | 20m/min | 20m/min |
| Laser power | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW |
| Laser | Multiple options | Multiple options | Multiple options |
| Machine bed | Tube welded bed | Tube welded bed | Tube welded bed |
| Max. runing speed | 140m/min | 140m/min | 140m/min |
Application
Therefore, with the above processing advantages, this type of laser cutter machine is widely used in advertising sign production, sheet metal structure, high and low voltage electrical cabinet production, textile machinery parts, kitchenware, automobiles, machinery, elevators, electrical parts, spring sheets, subway parts, etc.
