Purchase Best All Cover Metal Laser Cutting Machine for Sale in Melbourne, callao

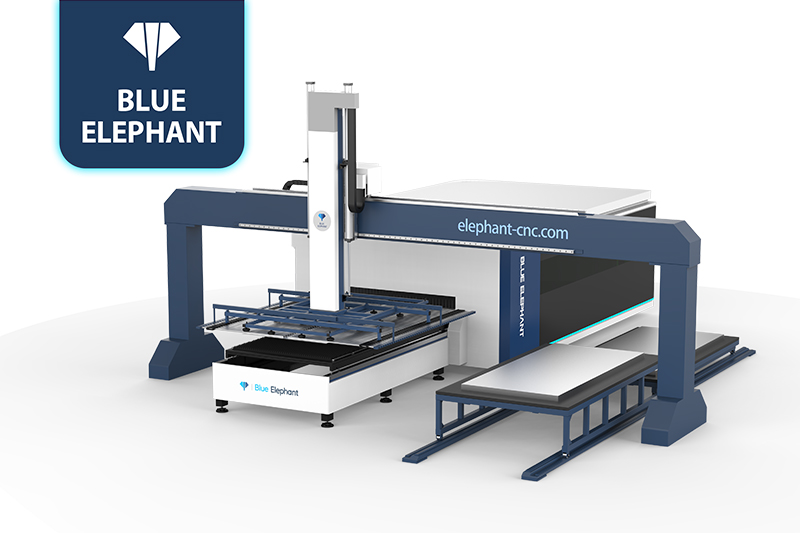

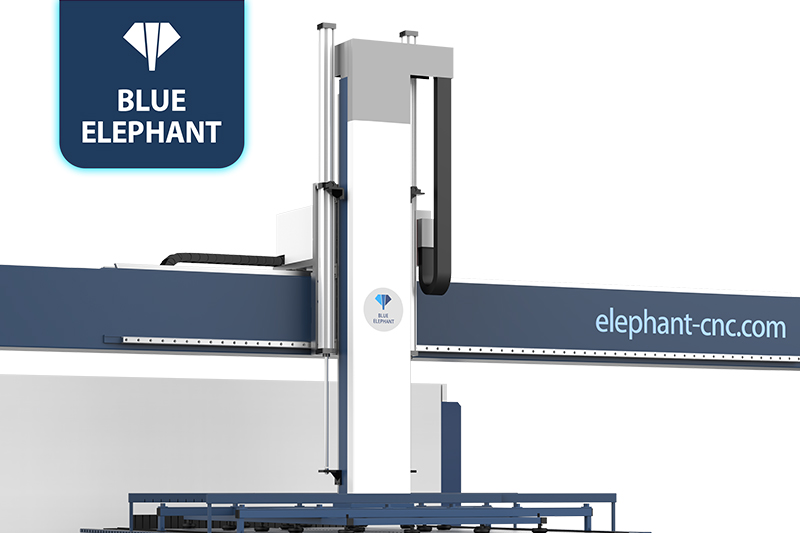

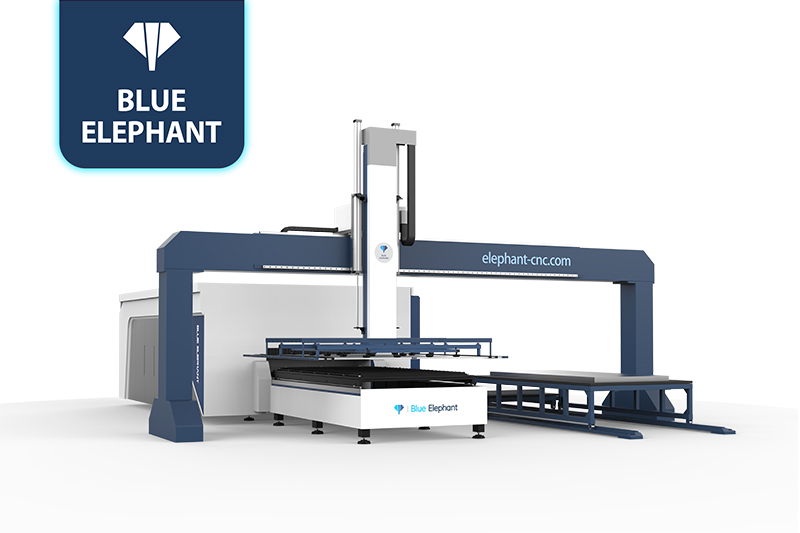

☆This fiber laser machine is equipped with a protective cover and loading & unloading system. Therefore, it needs no manual sorting, improves working efficiency, and saves labor costs.
Laser CNC Machines Video
Features
- The dual-working table reduces the loading and unloading time.
- The imported high precision gear and rack transmission system ensure the high speeding, high precision, and good dynamic characteristics.
- Imported lens, water cooler, and gas positive pressure protection, ensure clean and life of lens.
The Tube Welded Bed
High strength, not easily deformed
Heavy duty design ensures that the bed will not be deformed for many years, it is more stronger and has a high tensile.
More stable
We choose rectangular tubes with thicker wall than common machines. It is well welded, and make the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.

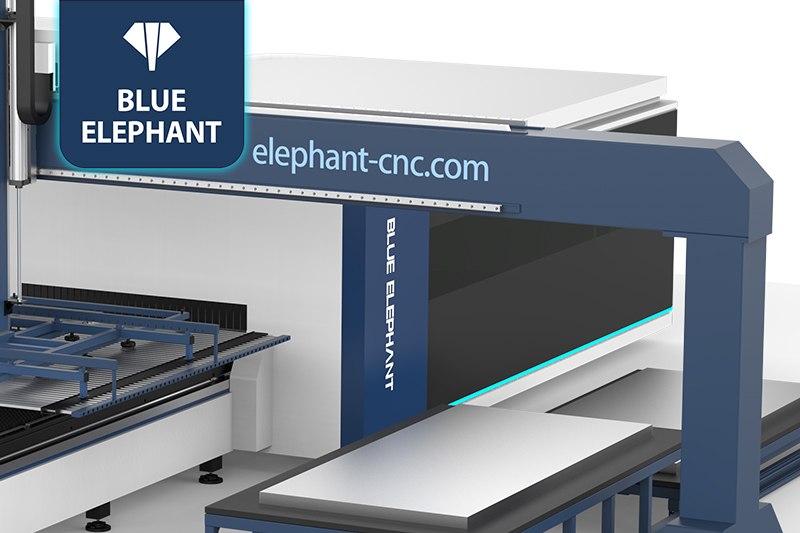

Aviation Aluminum Gantry
High hardness
Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
High speed
Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.
Raytools
Optimized optical configuration and smooth and efficient airflow design;
Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;
A variety of fiber interfaces for adapting to a variety of fiber lasers;
The collimating mirror, focusing mirror and nozzle have a cooling structure.
Parameters
| Model | ELECNC-1530AS | ELECNC-2040AS | ELECNC-2560AS |
| Working area (mm) | 1515*3030mm | 2020*4040mm | 2525*6050mm |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Repositioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Min. sheet thickness | 1mm | 1mm | 1mm |
| X axis speed | 25m/min | 25m/min | 25m/min |
| Z axis speed | 20m/min | 20m/min | 20m/min |
| Laser power | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW |
| Laser | Multiple options | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual | Auto/manual |
| Machine bed | Sheet welded bed | Sheet welded bed | Sheet welded bed |
| Servo motor and driver | YASKAWA/FUJI | YASKAWA/FUJI | YASKAWA/FUJI |
| Reducer | Shimpo | Shimpo | Shimpo |
| Relay | Schneider | Schneider | Schneider |
| Circuit breaker | Schneider | Schneider | Schneider |
Application
Suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
