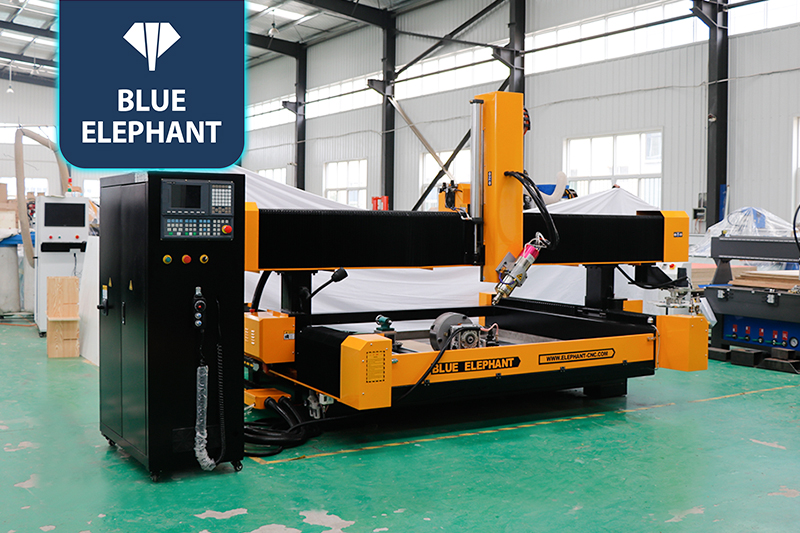

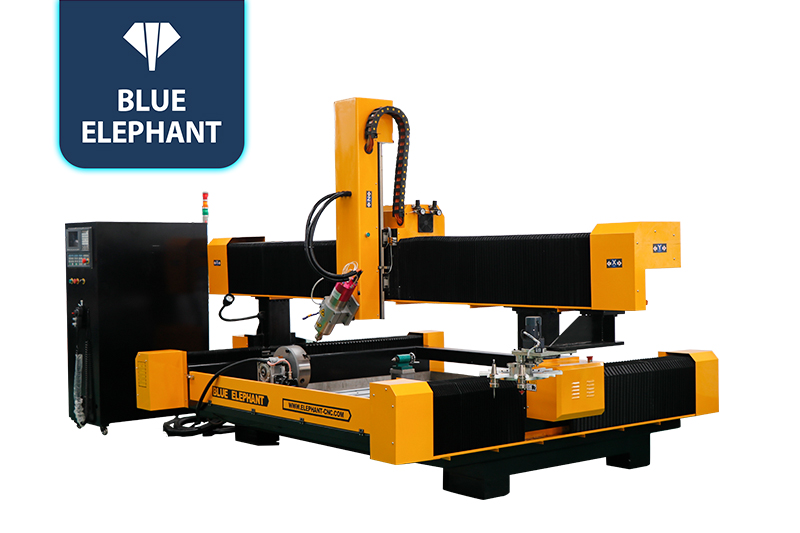

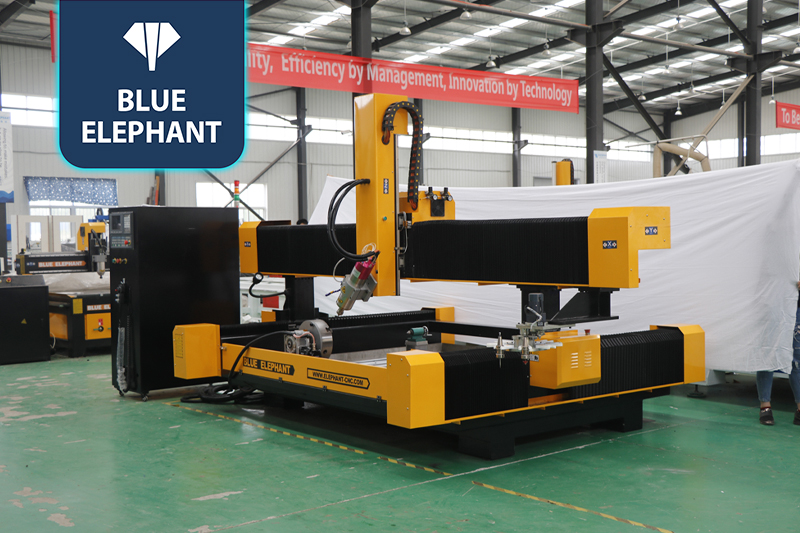

Rotary Axis ATC 3D Stone Carving Machine for Sale
☆Distinguished from other stone CNC routers, this ATC stone CNC machine was designed with a carousel automatic tool changer. Different knives installed in tool holder, which can greatly promote the working efficiency.
Stone Engraving Machines Video
Features
- 2100x1300mm effective working table size is big enough to process large stone plates. Moreover, the worktable size can be costomized according to customers’ needs.

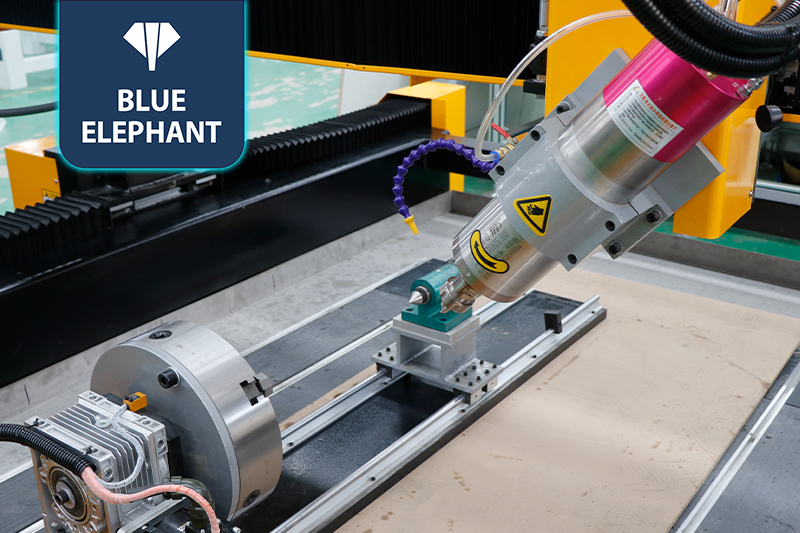

- Cycloidal pin wheel precision reducer can swing from -90 degree to +90 degree. It has high transmission accuracy and torsional stiffness.
- 1.5L automatic lubrication system can save labor, improve operational efficiency, and prolong the life of lubricated components.
Parameters
| Model | ELECNC2113ATC-4A |
| X,Y axis travel | 2100*1300mm, option: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 600mm, option: 500mm, 600mm, 700mm, etc. |
| Spindle type | 5.5kw ATC water cooling spindle, NBT30, ER32 |
| Inverter type | 5.5kw |
| The 4th axis | Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer |
| Tool holder with collet | NBT30,ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Stainless work table |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Cooling system | Water cooling |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Stone CNC engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, plastic, chemical composite board, and other materials. It is widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, drain tanks, etc.
