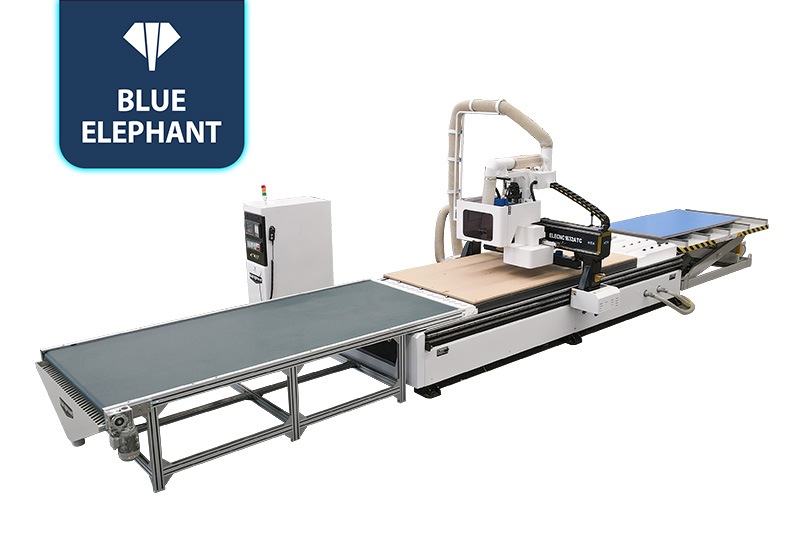

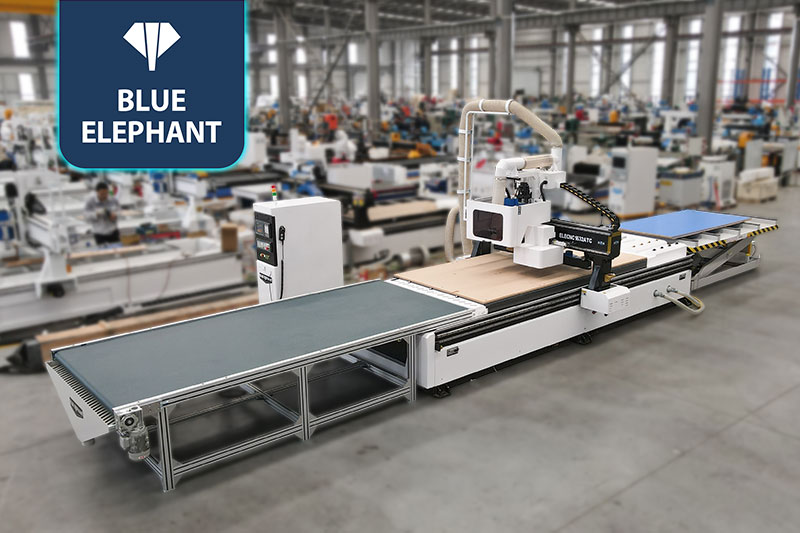

Auto Feeding ATC CNC Router for Furniture for Sale in Argentina, CA

☆The effective working size of 1600*3200mm is very suitable for processing 1220x2440mm wooden boards. Adopting a 9.6kW ATC spindle, it has a strong power to cut panels and can change tools automatically. Besides, the auto-feeding and unloading platforms improve work efficiency significantly.

Nesting CNC Machines Video

Features

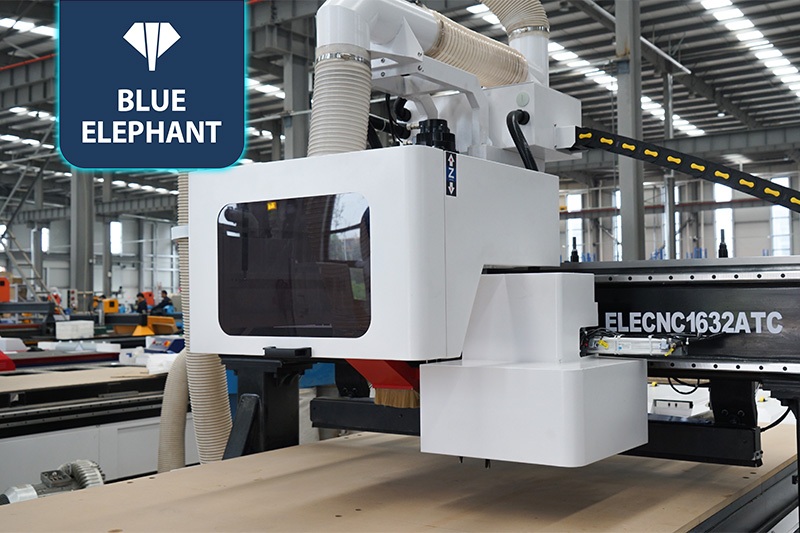

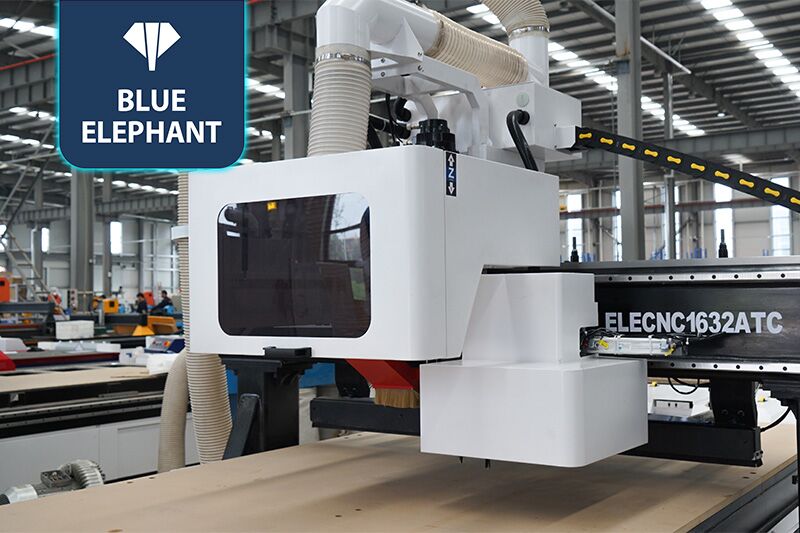

  • It is equipped with a carousel tool magazine mounted beside the ATC spindle, which reduces tool changing time and saves human labor.

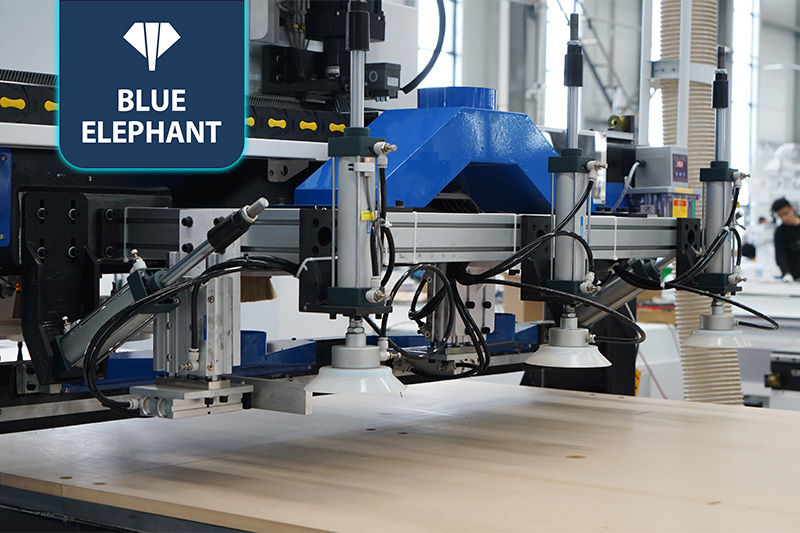

  • The automatic loading device and positioning mechanism ensure high work efficiency and excellent machining accuracy.
  • Its entire vacuum worktable has a strong adsorption capacity, fixing the wooden panels firmly on the worktable during processing, avoiding vibration and sliding.

Parameter

Working area 1600x3200x200mm
Spindle 9.6kw Italian HSD ATC air cooling spindle
Spindle speed 6000~24000rpm
Inverter 11kW Taiwan Delta  inverter
Tool magazine Carousel tool magazine with 12 tools
Control system Taiwan SYNTEC 60WE panel control system, M3 bus board control system
Motor and driver 850W Japan YASKAWA servo motor, 1kw servo driver
Working Table Entire vacuum work table,6 zones
limit switch Japan OMRON limit switch
Lubrication system Automatic lubrication
Voltage 220V, 60Hz, 3 phase
Vacuum pump 5.5kw Tongyou vacuum pump
X,Y,Z Transmission Helical rack gear transmission for X,Y axis, Taiwan TBI ball screw for Z axis
X,Y,Z Rail  Taiwan PMI/ABBA square linear guide for all axis,#25 for X and Z axis,#30 for Y axis
Dust collector Double bag dust collector, 7.5kw
Software Compatibility Artcam/Aspire software
Guarantee  12 months

Application

Wood furniture industry: Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising industry: Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

atc-cnc-router-sample126_1643074727
atc-cnc-router-sample22_1641781803
atc-cnc-router-sample70
sample2_1641454929

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images

Get Price & Details
