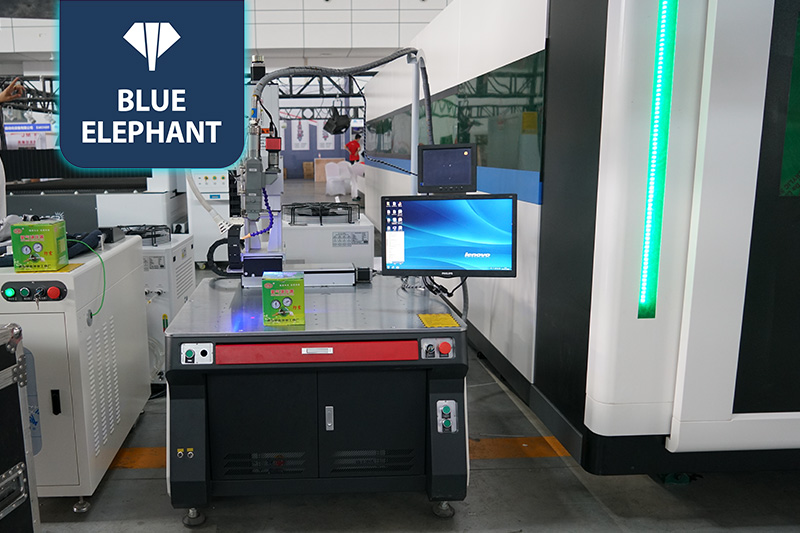

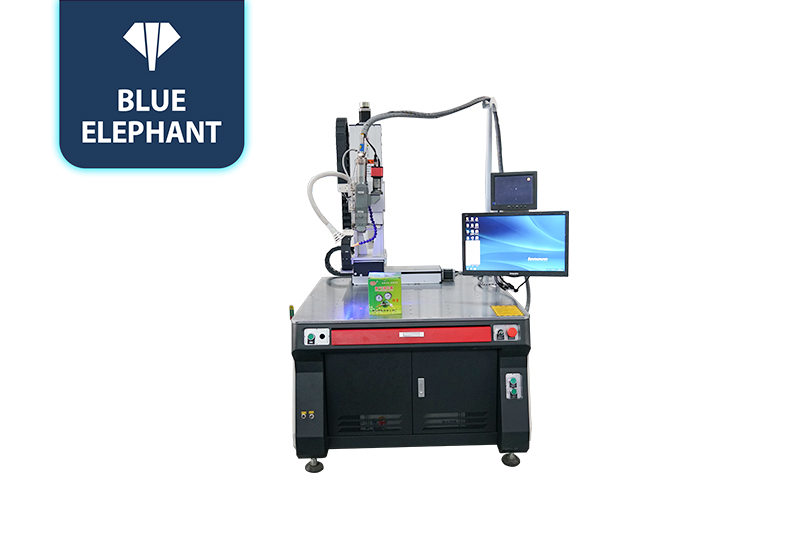

Best Automatic Laser Welding Machine in Romania, Peru Price

☆This fiber laser welder machine has the advantages of deep welding depth and high welding strength. And the welding head can choose coaxial or paraxial protection module, multi-axis motion platform or robot welding.

Laser CNC Machines Video

Features

  • Dedicated welding software are easy to operate.
  • Multi-axis motion platform can weld products with any plane graphics.
  • Equipped with a swing welding head, it can laser weld more kinds of products.

High Precision Laser Head

The drawer type protective lens installation method is convenient for the replacement of the protective lens

Equipped with waterway integration and has a better cooling system

Equipped with an infrared beam module and a CCD camera module to quickly find the focus position and watch the welding effect.

Fiber Laser Source

Using Raycus/MAX/JPT/RECI/IPG fiber laser, laser output stability, high electro-optical conversion rate, maintenance free.

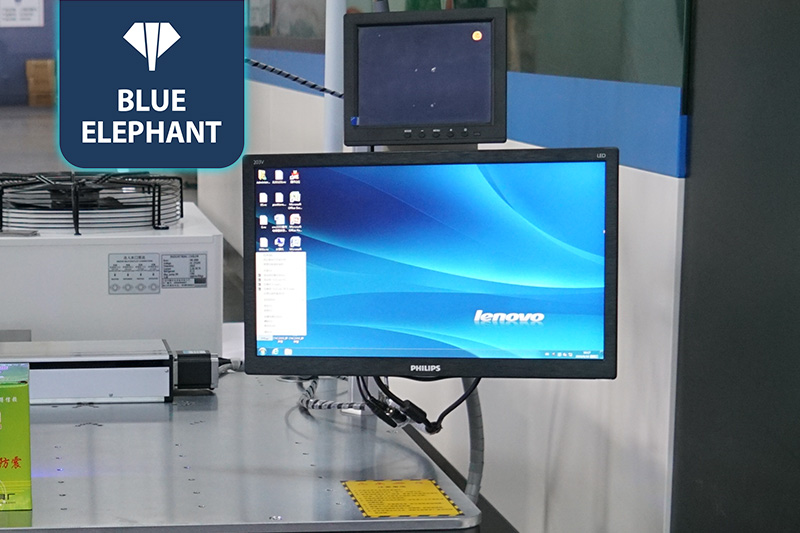

Brand industrial computer with powerful performance and many expansion interfaces, suitable for long-term continuous and stable use.

Parameters

Model XTW-1000
Max laser power 1000w
Laser source Raycus brand from China
Beam quality 1.3m²
Laser wavelength 1080±5nm
Welding head XT brand with QBH
Water chiller 1.5P
Power required 220V 50Hz 1PH
Power Consumption 7kw
Fiber optical length 8m
Stanless steel Maximum 3mm
Iron Maximum 3mm
lifetime 100,000 hours
Wattanty 2 years

Application

Widely used in aviation, aerospace, sporting goods, jewelry, golf head, medical equipment, aluminum denture, instrumentation, electronics, machining, automotive and other industries, especially for gold and silver jewelry fill the hole, point weld lines, mosaic pieces and claw foot unit area, such as welding.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Laser Cutting Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images

Get Price & Details
