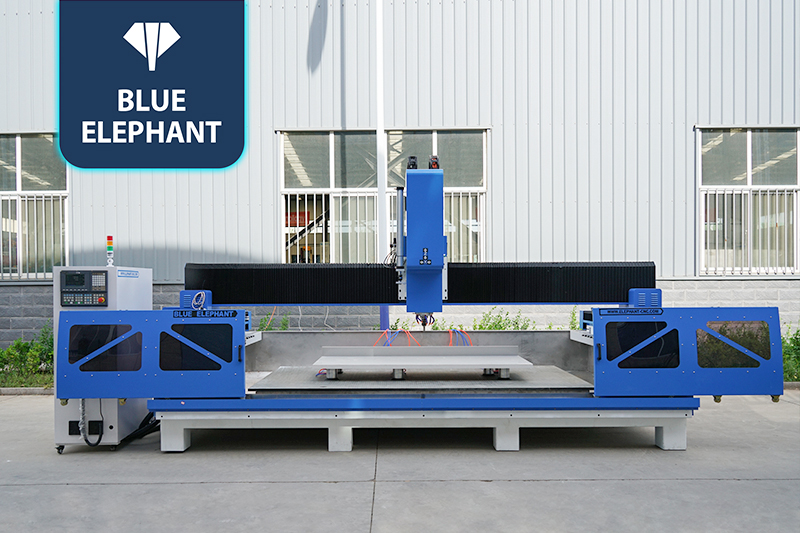

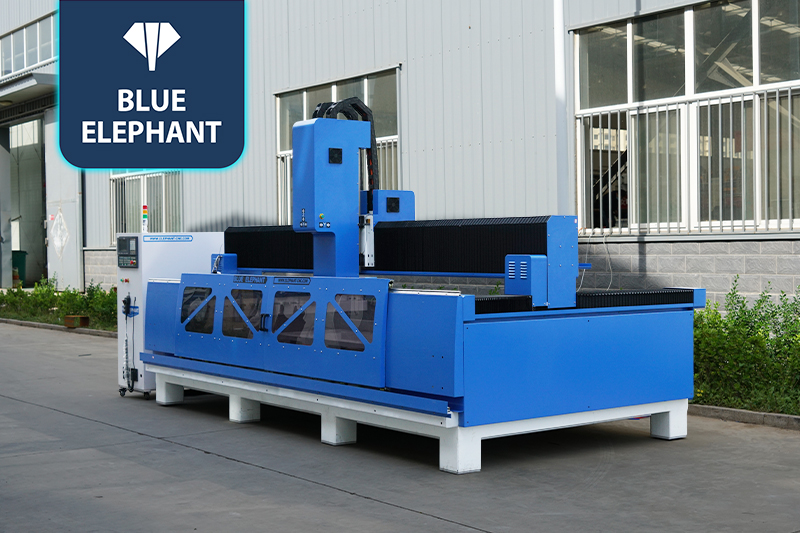

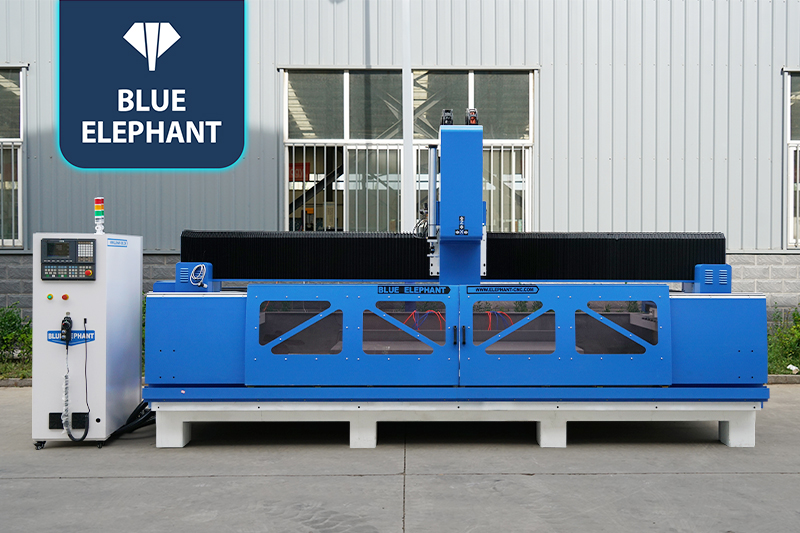

Automatic 3015 Quartz Stone CNC Machining Center Price

☆This stone CNC machining center is suitable for processing various kinds of stones such as granite, marble, quartz, etc. And it is widely used in the making of stone kitchen sinks, stone countertops, basins, etc.

CNC Machining Center Video

Parameters

Model ELECNC3015
X,Y axis travel 3000*1500mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 500mm, option: 400mm, etc
Spindle type Kenturn 7.5kw water cooling ATC spindle
Inverter type 7.5kw inverter
Tool magazine 12pcs tool magazines
Tool holder with collet 12pcs BT40
Control system Syntec 60WE
Driving system 1KW YASKAWA servo driver and motor
Reducer Japan Shimpo reducer
Machine structure Heavy duty body with quenching treatment
Work table Stone special working table
Linear guide TaiwanLinear guide
Transmission X,Y axis: Taiwan Helical Rack and Pinion
Z axis:Taiwan TBI high precision ball screw
Lubrication system automatic lubrication system
Tool calibration Autotool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam / Aspire, etc
Command language G Code & M Code
Traveling speed 60m/min
Working speed 0-30m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure More than 0.6mpa
Working voltage 380V 3PH 50HZ/ 60HZ

Application

A stone machining center is designed for the deep processing of quartz, marble, granite, slate, and other artificial stones. It can cut and drill holes, engrave letters and patterns, and mill and grind the stone surfaces. It is widely used to make kitchen countertops, bathroom washbasins, bar counters, coffee tables, stone statues and sculptures, tombstones and gravestones, and other artificial stone crafts and artworks.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
