Best Six Sided CNC Drilling Machine for Mass Production of Cabinets in Dominican, Guyana for Sale

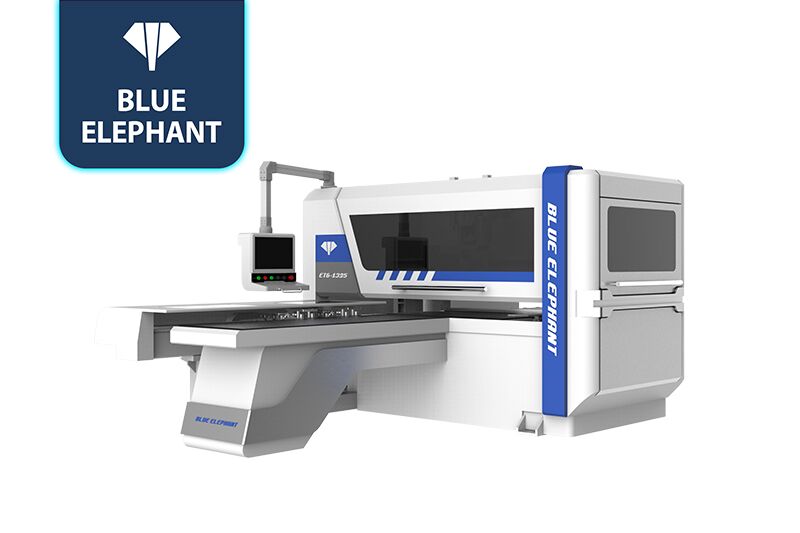

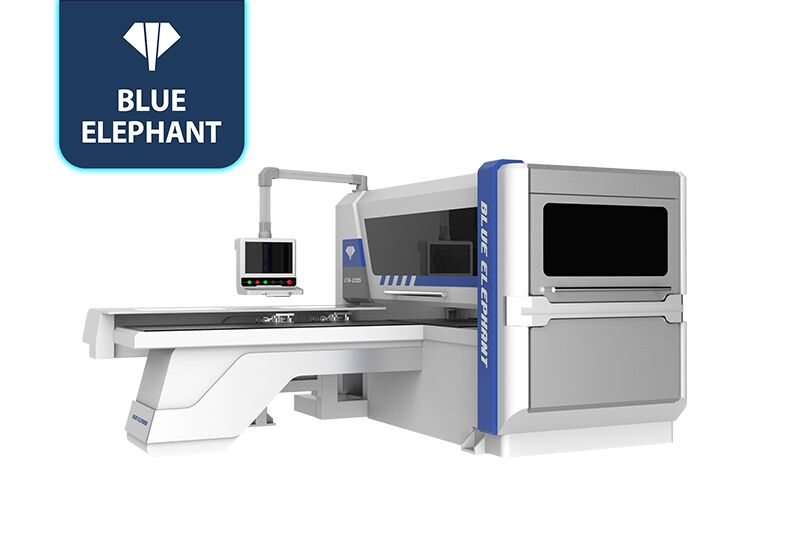

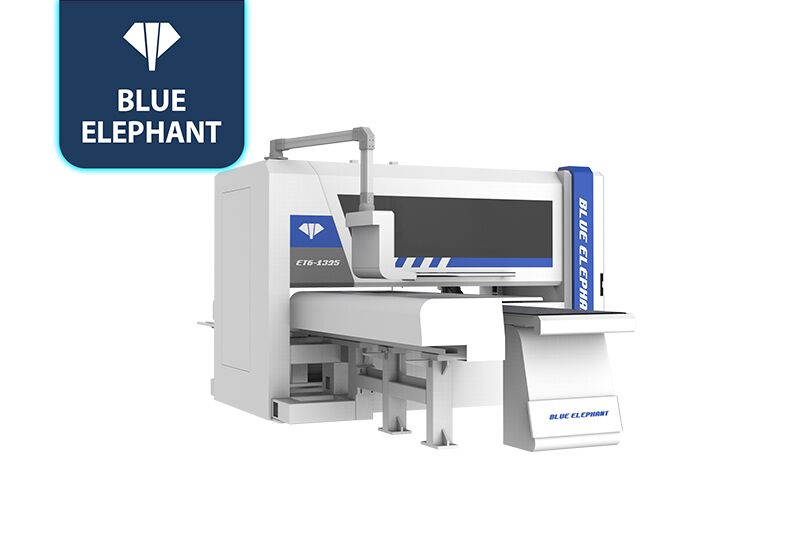

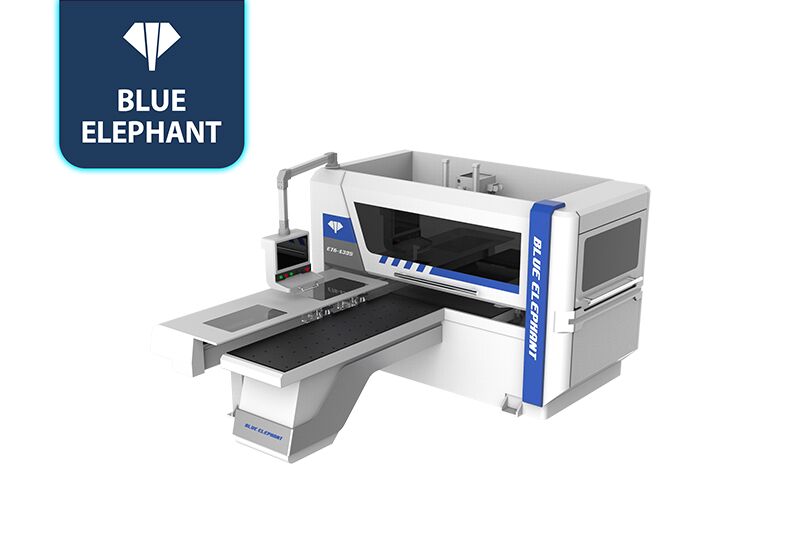

☆This highly automated CNC drilling machine can complete the drilling work on six sides and slotting on two sides of a wooden board at one operation. It can directly connect with a variety of order splitting software and is mainly used for mass production of cabinets, and other panel furniture.

Wood Drilling Machines Video

Features

  • Using computer operation, the six-sided CNC drill supports CAD drawing and importing files to CAM. Besides, you can also directly import open data formats such as DXF, MPR, xml, etc.
  • It is easy to learn and operate this wood drilling machine due to its high-level of automation.
  • It can process both small-sized and large-sized panels, and complete drilling and slotting work with high efficiency.

Parameters

Model ET6-1325
Working size: 1300x2500mm
Spindle type 3.5KW Air Cooling Spindle*2
Number of tools 12 Vertical top drilling+8 horizontal drilling +9 bottom vertical drilling
Control system Blue Elephant Custom System
Driver system Absolute servo motor
Transmission Taiwan helical rack
X axis Travel speed 120m/min
Y axis Travel speed 80m/min
Re-positioning accuracy ±0.03mm
Software Blue Elephant Custom System
Working voltage 220V /380V/ 50-60HZ
Machine overall size 5832*2727*2367mm

Application

The six-sided CNC drilling machine is an advanced CNC equipment for drilling wooden boards. It is equipped with six-direction drills, which can complete 6-sided drilling at one time without turning the sheet over. The six-sided wood drilling machine are widely used in the production of wooden furniture, such as cabinets, doors, office furniture, etc.

side-drilling-machine-samples-1_1642986355
side-drilling-machine-samples-2_1642986379
side-drilling-machine-samples-3_1642986394
side-drilling-machine-samples-4_1642986409
