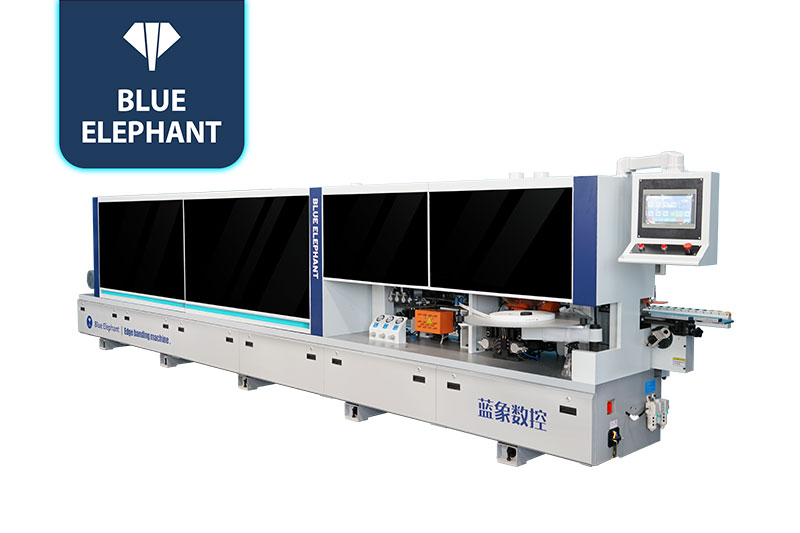

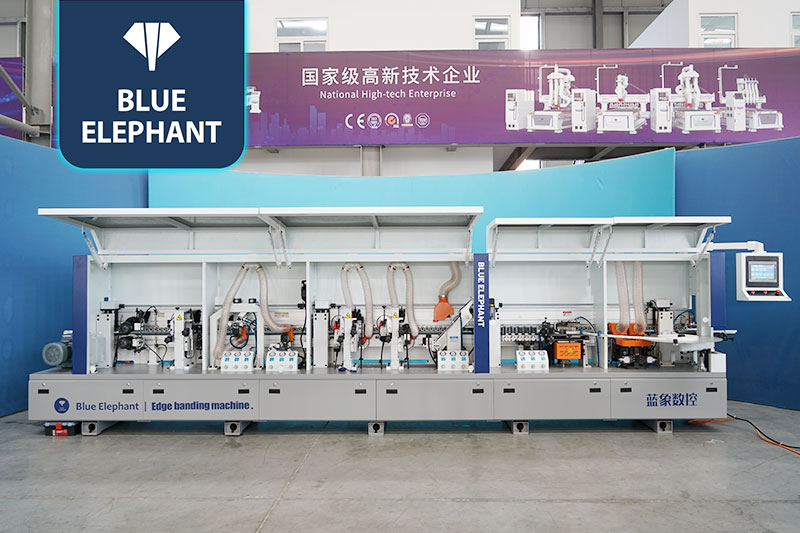

Best Auto MDF Edge Banding Machine for Sale

☆This E70J edge bander machine can realize edge banding automatically and quickly. For example, it can complete pre-milling, edge banding, end cutting, rough and fine trimming, tracking and trimming, scraping, polishing, etc.

Edge Banding Machines Video

features

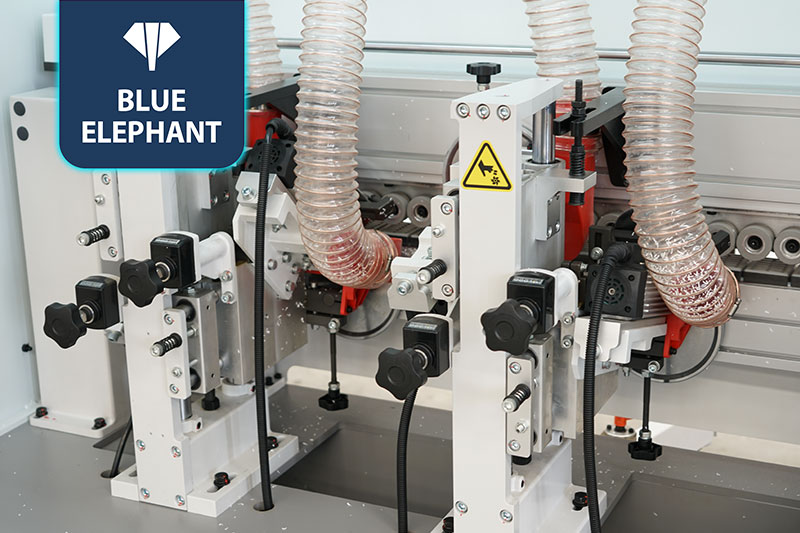

  • The profile tracking and trimming function can trim the banded panel corners more smooth.
  • The self-designed tracking motion and gas circuit stabilize the tracking and rounding process.

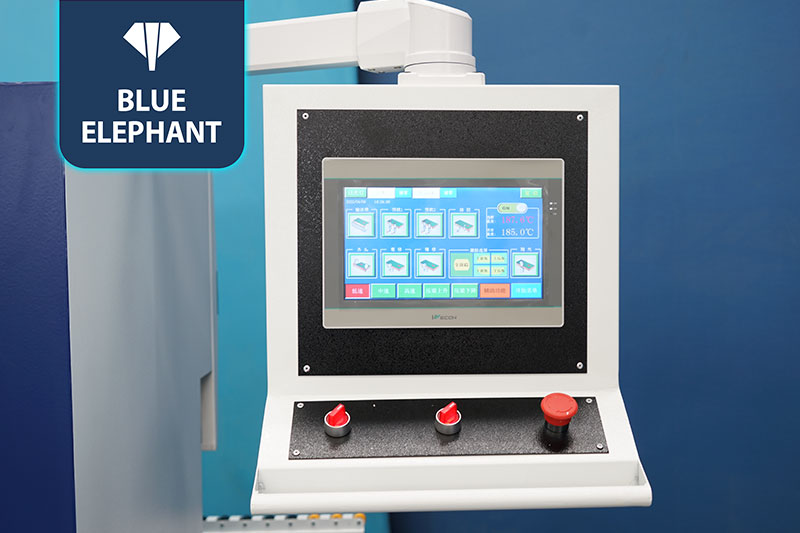

  • Adopts an industry-leading touchscreen, it has the advantages of quick response.

Parameters

Overall size 6800x970x1800mm
Total power 16.5kW
Feed speed 15-23m/min
Electric lifting 0.37kW
Panel Thickness 10-60mm
Panel length ≥120mm
Panel width ≥60mm
Edge band thickness 0.4-3mm
Working pressure 0.6Mpa
Voltage 380V, 50Hz, 3PH
Optional: 220V 3PH; 220V 1PH

Application

Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.

edge-banding-machine-sample-2_1642835686
edge-banding-machine-sample-4_1642835714
edge-banding-machine-sample-5_1642835816
edge-banding-machine-sample_1642835853

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
