Affordable Flatbed ATC CNC Digital Cutter for Sale in Russia, Finland, France

☆ATC CNC router with EOT-3 Oscillating Knife makes woodworking automatically, which helps the man out of the manual operation and saves much time.

Digital Cutting Machines Video

features

  • With EOT-3 oscillating knife cutter, it meets the cutting needs of leather, carpet, carton, cardboard, rubber, etc.
  • Using a linear automatic tool changer, it can fast and automatically change different tools to make various products.
  • All the machine configurations can be customized according to your needs.

Parameters

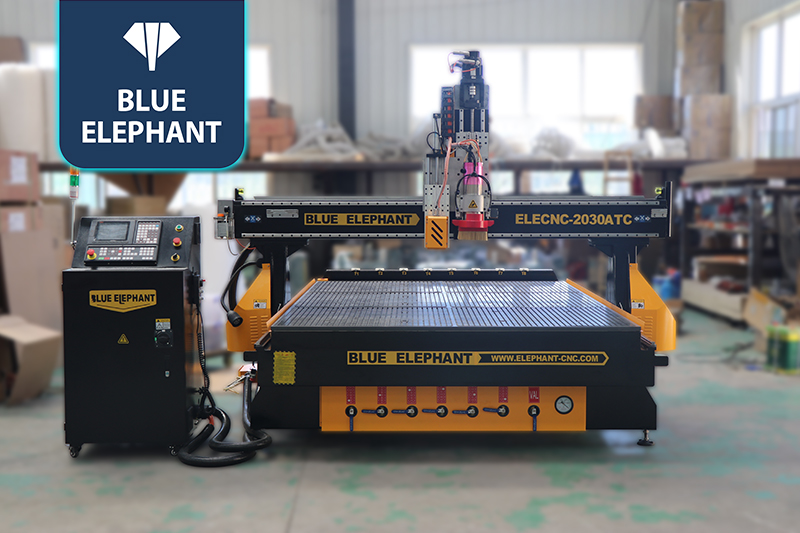

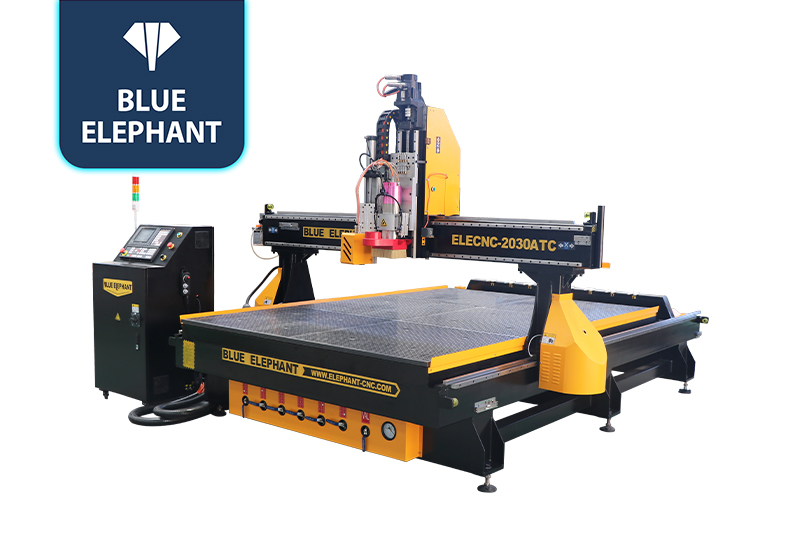

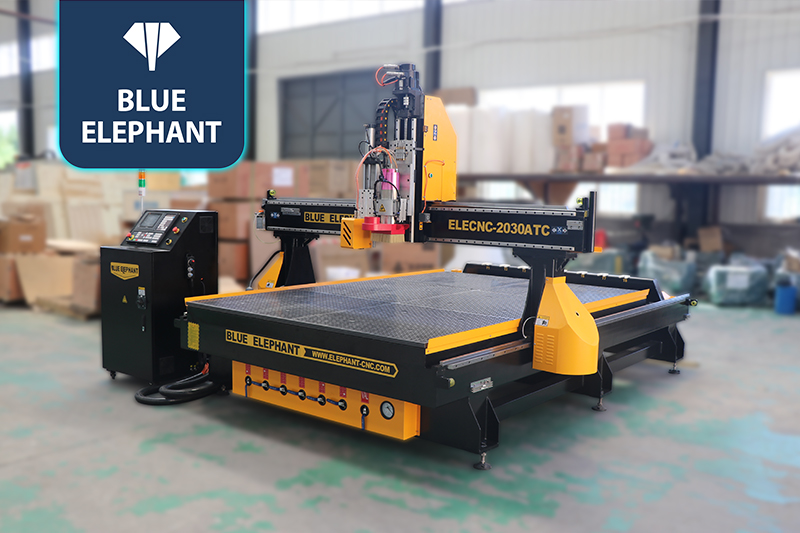

Model ELECNC2030ATC
X,Y axis travel 2000x3000mm, option: 1300*2500mm; 1500*3000mm; 2100*4000mm, etc.
Z axis travel 500mm, option: 200mm, 300mm, 400mm, 600mm, etc.
Spindle type 9kw ATC air cooling spindle, ISO30, ER32
Inverter type 11kw
Drilling bank Optional

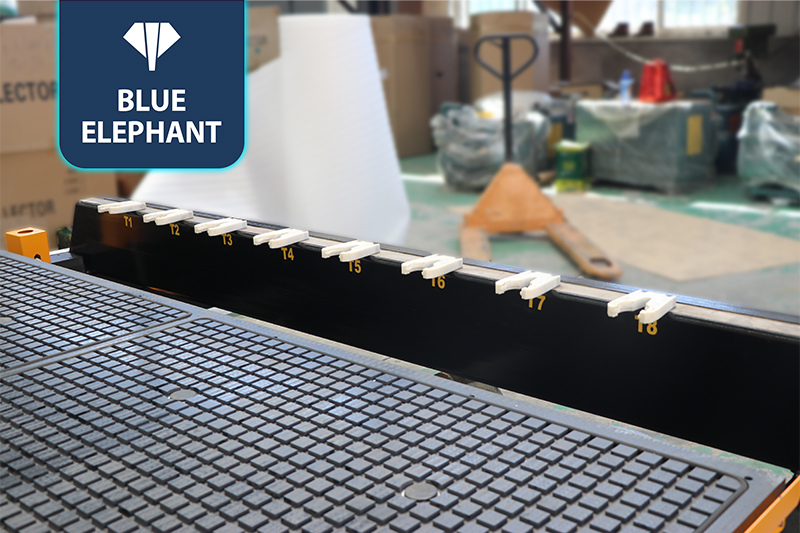

Tool magazine Linear type auto tool changer
Option: Carousel type auto tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan LNC controller, option:Taiwan Syntec
Driving system 850w Leadshine AC servo driver and 850w AC servo motor,4 sets. option:850w Japan Yaskawa servo
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder Optional: 7 pieces (X3,Y4)
Linear guide Taiwan Linear guide
Transmission X, Y axis: Taiwan /Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire,etc
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
