Pneumatic Multi Spindles CNC Router in Jinan with Affordable Price for Sale to Humburger, UK

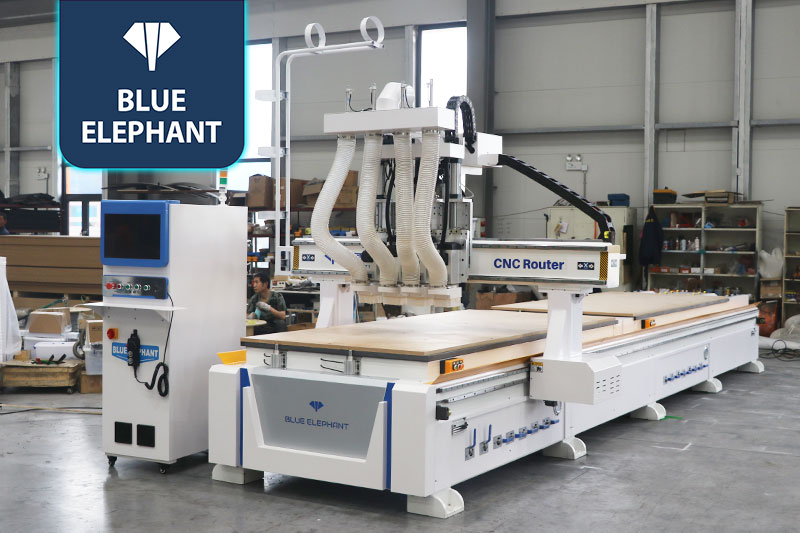

☆This wood CNC router is provided with 4 spindles, and each of them can carry a type of CNC tool. So it can be deemed as a simple version of automatic tool changing CNC router but only with four CNC tools. In addition, the two worktables improve working efficiency by processing at one worktable while loading or unloading at the other one.
Features

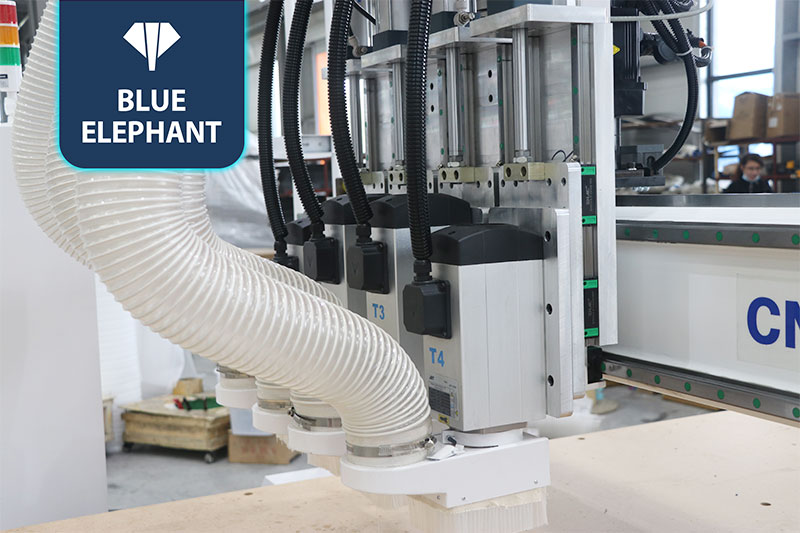

- This wood CNC machine is equipped with four spindles and only one of them can work at the same time. It can realize fast tool change during the process.

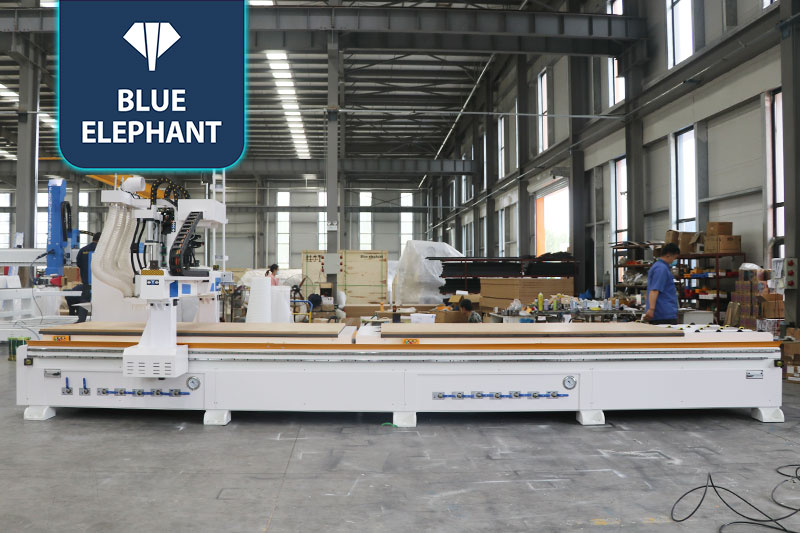

- Two worktables can realize simultaneous loading and unloading of wooden boards, greatly saving loading and unloading efficiency.
- The heavy-duty machine structure ensures good stability for the long Y-axis travel.
Parameters
| Descriptions | Parameters |
| Product Name | 1325 Bi-Zone Pneumatic 4 Spindles CNC Router Machine |
| Model | ELECNC-1325-4S |
| Travel Size | 1300*6000*200mm |
| Working Size | 1300*2500*200mm (bi- zone) |
| Table Size | 1200*2440*200mm (bi- zone) |
| Working Voltage | 380V, 3Ph, 50Hz (200V for option) |
| Frame | 10-12mm New type thicker and bigger heavy duty welded frame and gantry |
| X,Y,Z Axis Rail | Taiwan PMI linear square rail |
| X,Y,Z Axis Trasmission | Helical rack for X,Y axis and Taiwan TBI ball screw for Z axis |
| Control System | Taiwan LNC control system |
| Spindles | HQD air cooling spindles |
| Spindle Speed | 0-18000rpm/min |
| Motors and Drivers | Taiwan Delta servo motors and drivers |
| Table Surface | Vacuum working table with 4 zones for each working area |
| Lubrication System | Semi-automatic lubrication system |
| Limit Switch | Japan OMRON limited switch |
| Wire | High soft shield with copper wire to protect against static electricity |
| Tool Sensor | Automatic tool sensor |
| Positioning Cylinder | 12 sets |
| Dust Collector | New type double bags dust collector |
Application
Wood-working industry: Ideally suitable for furniture decoration,musical instruments,wooden crafts,solid wood furniture,MDF paint-free door,wood composite door,cabinet,kitchen doors,windows,night table,etc.
Decoration industry: Art model,Wall Art,screen felief engraving and cutting,decoration processing,gifts wrapping,waved plate,electrical cabinets panels,sports equipment,and other wooden industrial products.
