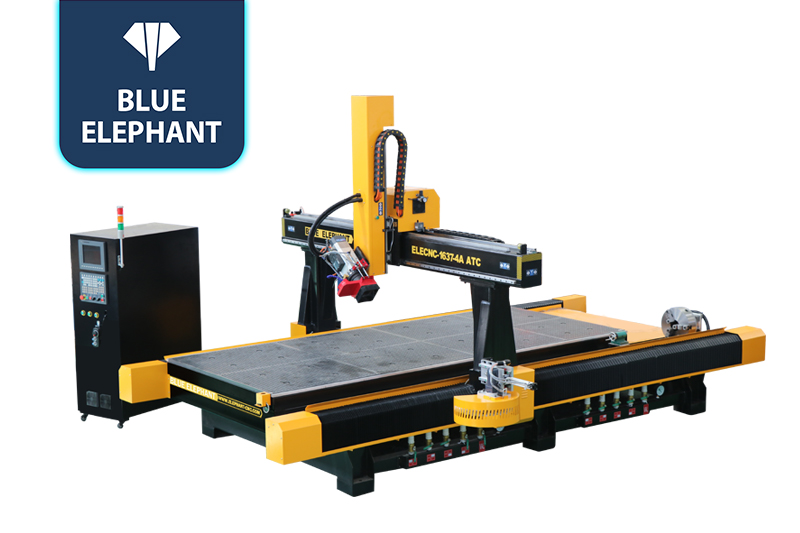

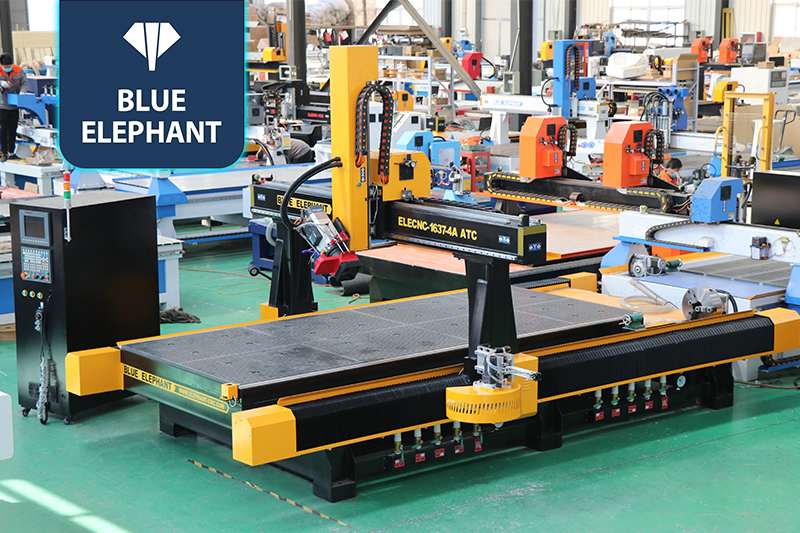

Custom 1637 ATC 4 Aixs CNC Machine for Sale in Haiti, Benin for Furniture Production
☆This heavy-duty 4 axis ATC CNC router has a custom working size of 1600x3700x600mm to meet customer’s processing demands. It is also equipped with rotary device for 3D carving and engraving on cylindrical workpieces.
4 Axis CNC Router Machines Video
Features
- The effective working size is 1600x3700x600mm, which is good at processing thick and tall workpieces.
- It is provided with a rotary device and a rotary spindle to process 3D workpieces.
- The vacuum worktable with 8 zones has a strong adsorption capacity to prevent the panel from sliding or moving during operation.
Parameters
| Model | ELECNC-1637ATC |
| Working Area | 1600*3700*600mm |

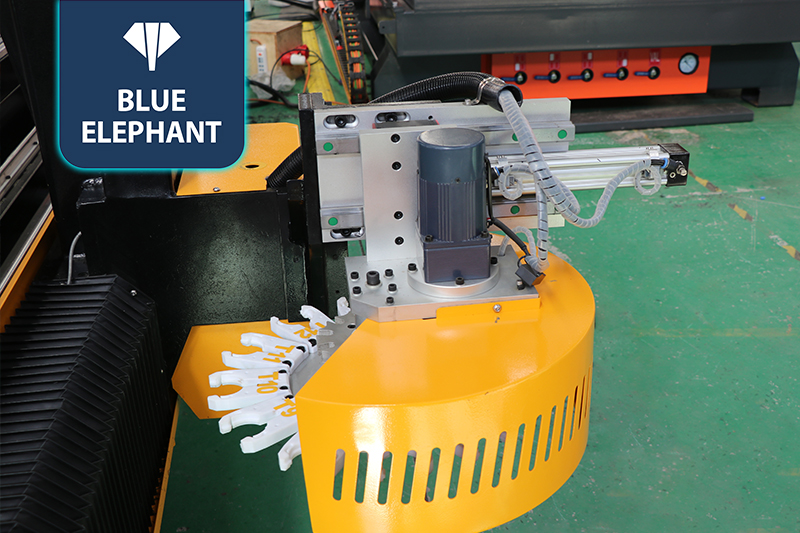

| Tool Magazine | 12 Tools Carousel Magazines |
| Working Voltage | 220v 3ph 60hz( Option) |
| Control System | Taiwan SYNTEC 21MA control system |
| Spindle | 9.6kw Italy HSD air cooling spindle, can swing ±90° |
| Spindle Speed | 0-24000rpm |
| Inverter | 11kw Taiwan Delta Inverter |
| Motor & Driver | 850w Japan YASKAWA servo motor and 1kw servo driver with 3 pieces Japan Shimpo Reducer |
| Table Surface | T-Slot and Vacuum Working Table,8 zones |
| Lubrication System | 1.5L Auto Lubrication System |
| Color | Yellow and Black (customizable) |
| Dust collector | 1.5kw new type double bag dust colltor |
| X,Y axis | Helical rack gear transmission |
| Vacuum Pump | 2 pieces 5.5kw Tongyou vacuum pump,220v 3ph 60hz |
Application
Wood furniture industry： Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Die industry： A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
