Top Ranked 2040 ATC CNC Router with Rotary Device for Sale in France and Britain at economic prices

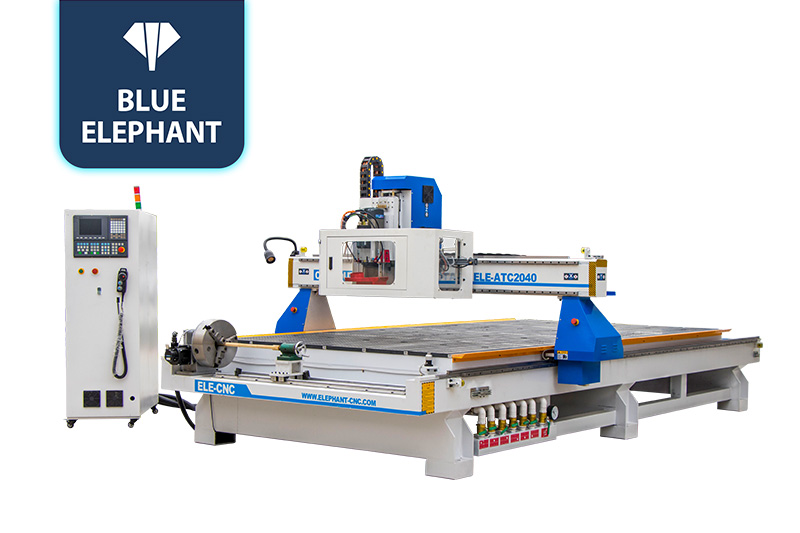

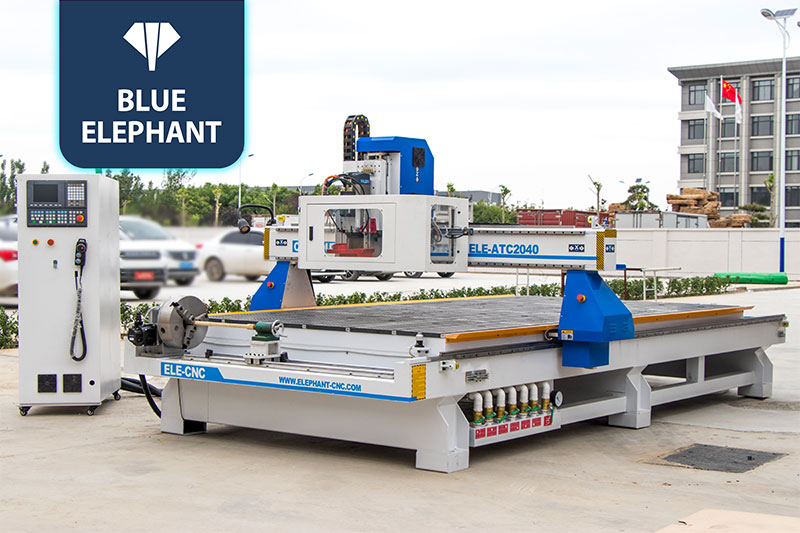

☆This is an automatic tool changing CNC router machine with a rotary device for the production of various furniture. It can process large-sized panels due to its big working size and a variety of cylindrical parts thanks to the rotary device.
Rotary Axis CNC Router Machines Video
Features
The large working size of 2000x4000mm can process most large-format wooden panel for various panel furniture production.
The CNC machine is equipped with a 9kW air-cooled spindle, which can quickly and accurately complete powerful cutting and engraving work.
The ATC CNC machine can switch between a large number of tools without manual operation, improving accuracy and efficiency.
Parameters
Description Parameters
Model ELECNC-2040ATC
Working size 2060*4000*200mm
Color White and Blue (customizable)
Working Voltage 380V, 3Phase, 50Hz
Control system SYNTEC control system
Spindle 9kw Italy HSD ATC air cooling spindle
Inverter 11kw Delta Inverter
Motor & Driver 850w Japan YASKAWA servo motor and 1kw driver

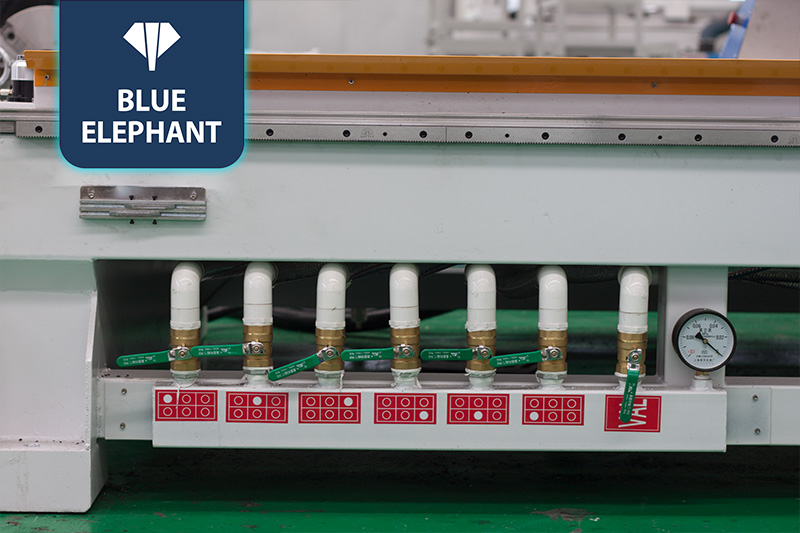

Table surface T-slot and vacuum working table
Lubrication system Auto Lubrication system

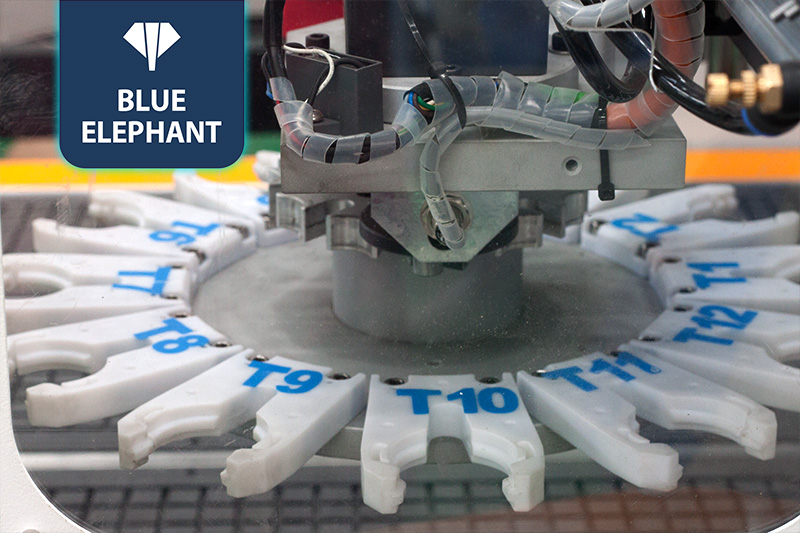

Automatic tool magazine 12
Gantry structure Gantry moving
Structure New type thicker and bigger heavy duty welded frame and gantry
Transmission X,Y rack and pinion drive, Z Taiwan TBI ball screw
Rail ABBA 25#
Mist cooling sprayer Automatic oil mist cooling sprayer
Vacuum pump 2 sets 5.5kw water circulation vacuum pump (380V, 3Phase, 50Hz)
Dust collector 1.5kw new type double packet dust collector (380V, 3Phase, 50Hz)
Tool sensor Automatic tool sensor calibration
Rotary device diameter 300mm
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
