Best ATC CNC Cutting Machine with CCD System for Price in Canada, Latvia

☆This machine is designed with a carousel tool magazine with 8pcs, which can automatically switch tools according to different machining requirements.

features

  • Adopting a 9kw ATC air cooling spindle, it has the characteristics of high speed and low noise.
  • Using the new generation CCD, it can scan the pattern edges quickly, which greatly improves the user’s machining efficiency.
  • Manufactured with the large working area, it can cut and engrave many large plates and panels.

Parameters

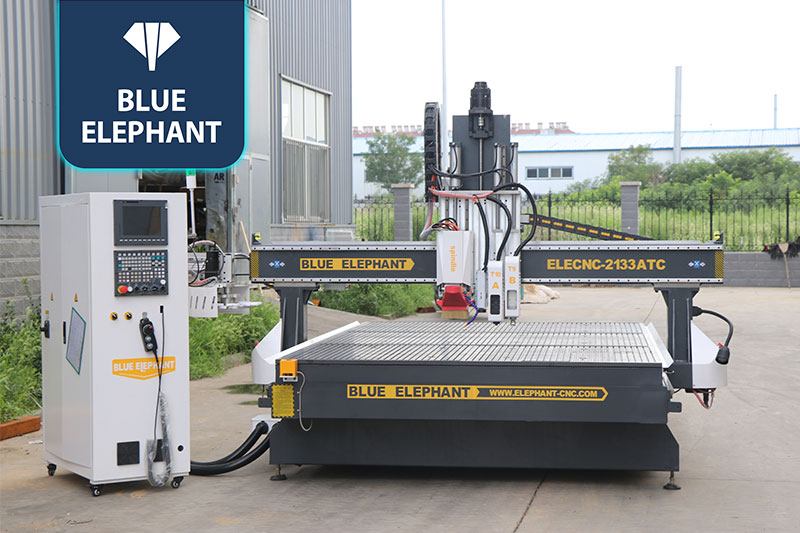

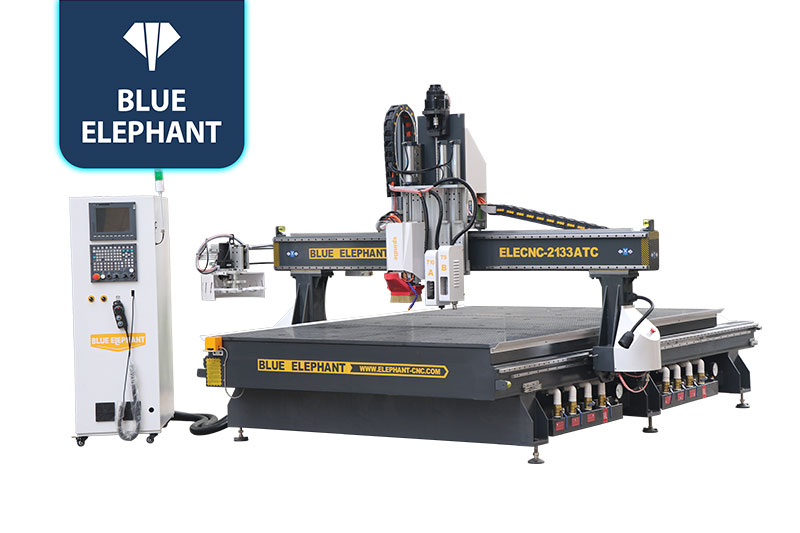

Model ELECNC2133ATC
X,Y axis travel 2100x3300mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc.
Z axis travel 200mm, option: 300mm, 400mm, 500mm, 600mm, etc.

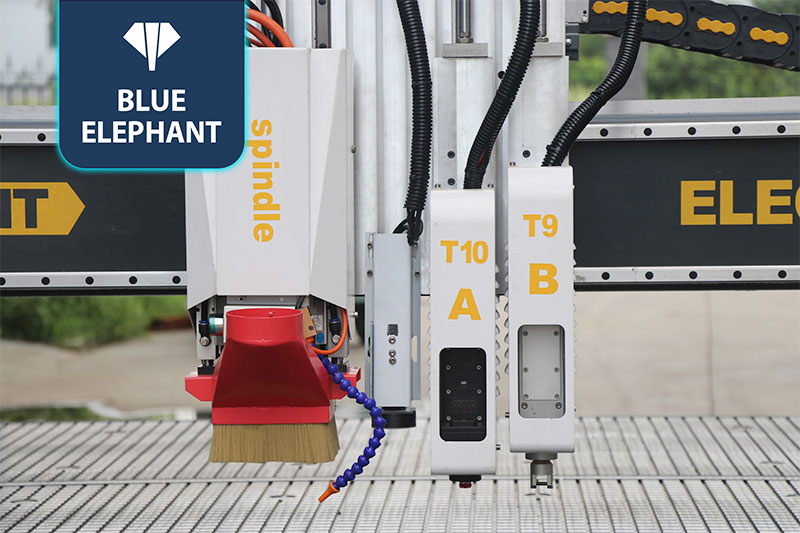

Spindle type 9kw ATC air cooling spindle, ISO30, ER32
Inverter type 11kw
Drilling bank Optional
Tool magazine Carousel type auto tool changer
Option: Linear type auto tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan SYNTEC /LNC controller, option: Ncstudio
Driving system 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder Optional
Linear guide Taiwan Linear guide with dust proof
Transmission X, Y axis: Taiwan / Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw

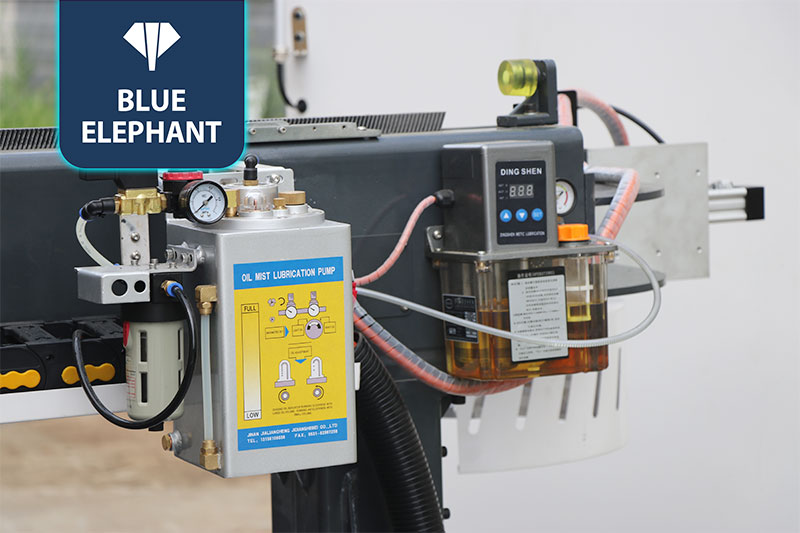

Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam,Type 3,Ucancam, Aspire, etc.
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

A CCD CNC router machine can complete all the work that a 3-axis woodworking machine can do. For example, cutting and carving wood, acrylic, fiberglass, etc. In addition, the CCD camera can automatically detect the edges of the image printed on the sheet, so as to cut irregular shapes. Therefore, CCD CNC router machine is widely used for cutting printed PVC boards, KT boards and other boards for advertising purposes.
