The best 4 th axis CNC Wood Router with ATC on Great Sale in Britain and Australia

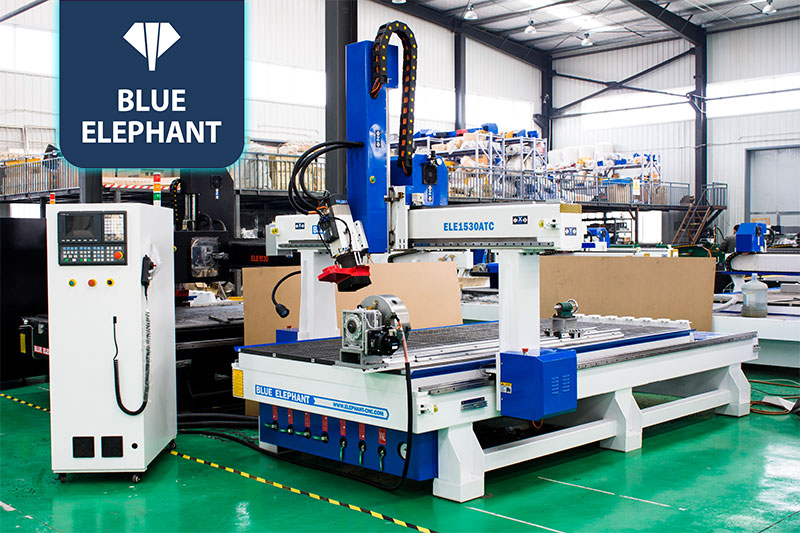

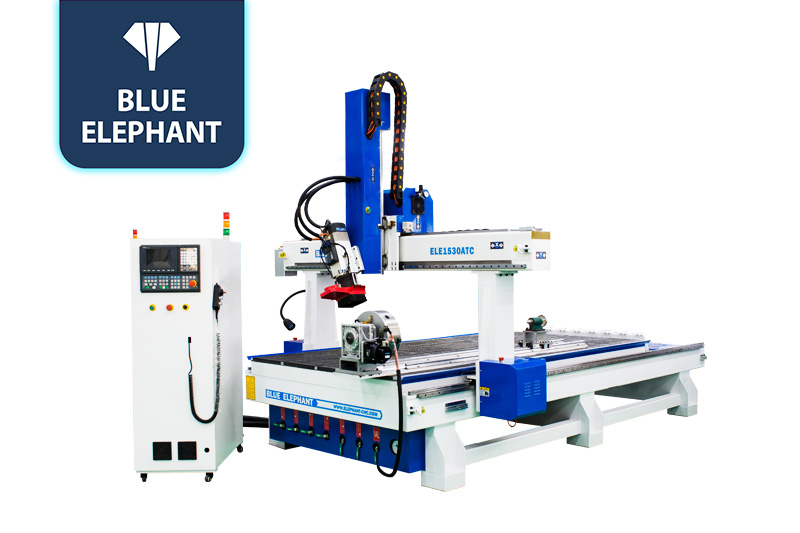

☆This multi-functional CNC router machine is provided with a rotary spindle as well as a rotary device. So it can process various 3D workpieces with wood, styrofoam, and other materials. It adopts the SYNTEC control system, which is easy to learn and operate due to its friendly human interface.
Rotary Axis CNC Router Machines Video
Features
The CNC router machine can carve and engrave thick and tall 3D workpieces due to its rotary spindle and the high Z-axis travel.
It is equipped with a movable rotary device, which can be fixed on or removed from the worktable according to customers’ demands.
The machine also has automatic tool change function to improve work efficiency and reduce labor force .
Parameters
Description Parameter
X,Y,Z Working Area 1500x3000x500mm
Table Size 1500×3000mm
Table Surface Vacuum and T-slot working table
Frame New Type Thicker and Bigger Heavy Duty Welded Frame and Gantry
X, Y Structure Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail
Z Structure Sweden ABBA #25 Linear Square Rail and TBI Ball Screw
Spindle Power 9kw Italy HSD ATC air cooling spindle
Spindle Speed 0-24000RPM
Drive Motors 850W Japan YASKAWA servo motors and drivers
Inverter 11kw Taiwan DELTA inverter
Working Voltage 380v, 3phase, 60HZ (Option: AC220V/50/60Hz,3PH)
Command Language G Code
Operating System Taiwan SYNTEC 4 axis control System
Computer Interface USB
Reducer Japan Shimpo reducer
Vacuum pump 4KW German baker pump
Collet ISO30
Software Artcam
Running Environment Temperature 0 – 45 Centigrade
Relative Humidity 30% – 75%
Lubrication system Automatic lubrication system
Tool sensor Automatic tool sensor calibration

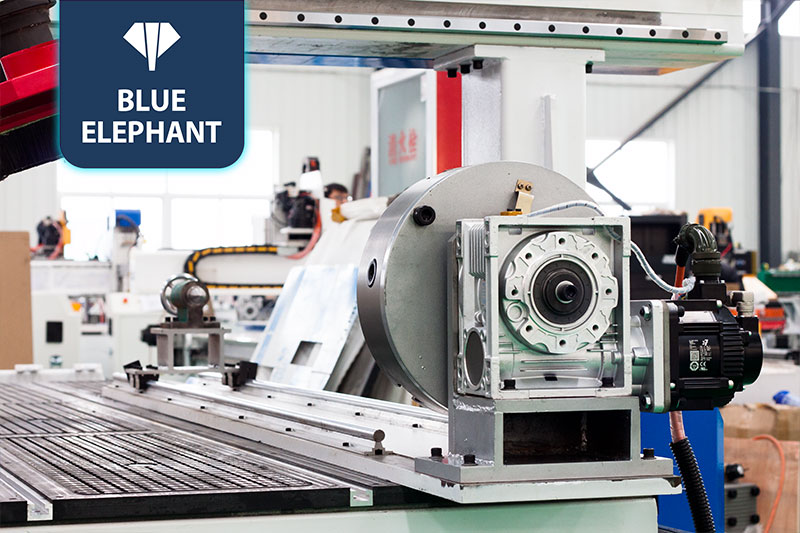

Rotary device
The rotary device can move for optional,
diameter: 200mm, length: 2000mm
Application

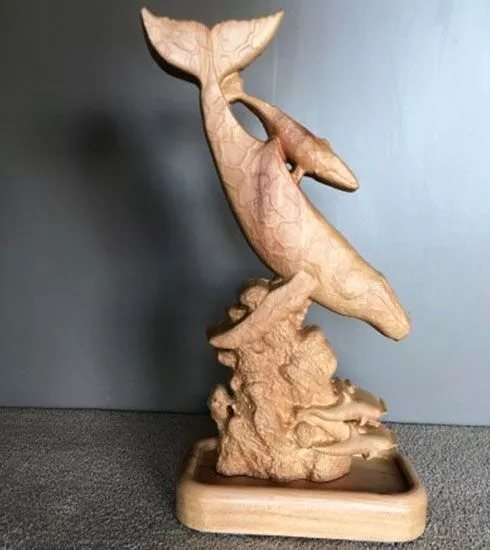

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
