ATC rotary axis CNC Router for 3D Carving is purchased in Britain, Australia and India at an economic price

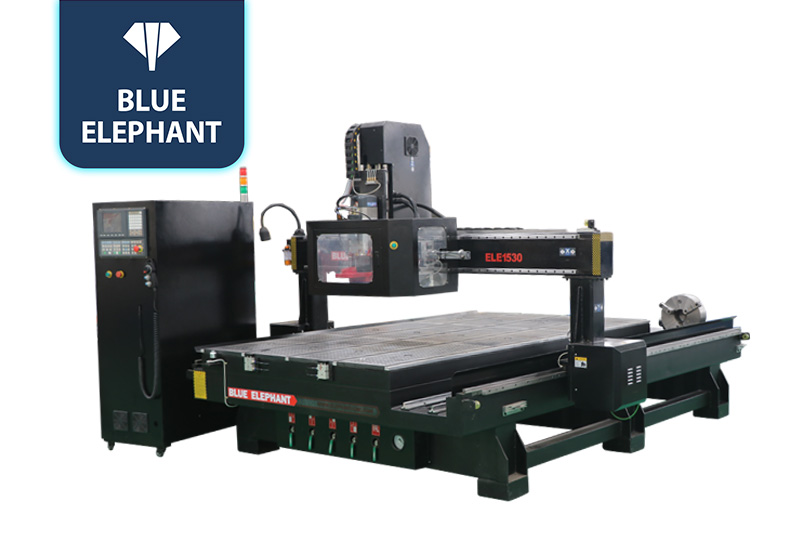

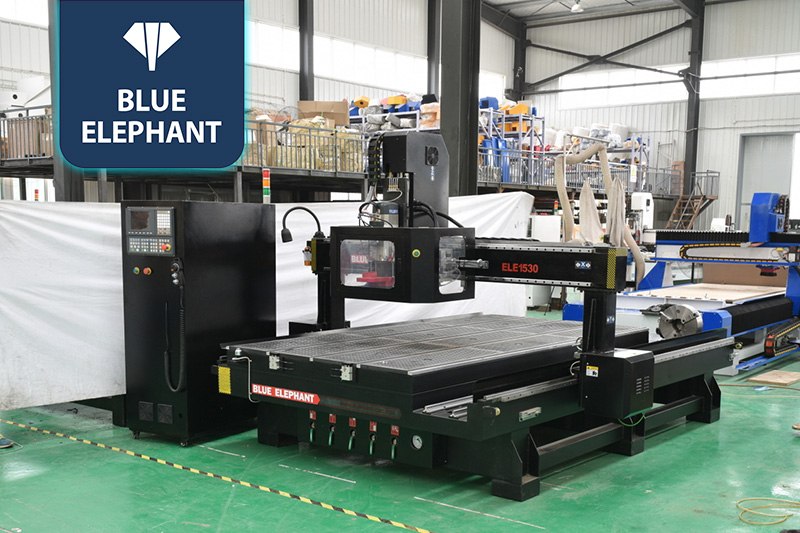

☆This is a hot sale 4th axis CNC wood router with an automatic tool changing function for small workshops. Its heavy-duty frame structure is sturdy and rigid to prevent vibration and deformation during operation. All parts and components adopt famous-brand products to ensure stable and reliable work.
Rotary Axis CNC Router Machines Video
Features
The carousel tool magazine is installed beside the ATC spindle, which reduces the tool changing time significantly.
The rotary device enables this CNC router to process cylinders, square sticks, rods, and other workpieces.
In order to meet different processing requirements, the specifications of the CNC router machine can be customized.
Parameters
Description Parameters
Model ELECNC-1530ATC-4
Working size 1500*3000*400mm
Color Black (customizable)
Working Voltage 220V, 3Phase, 60Hz

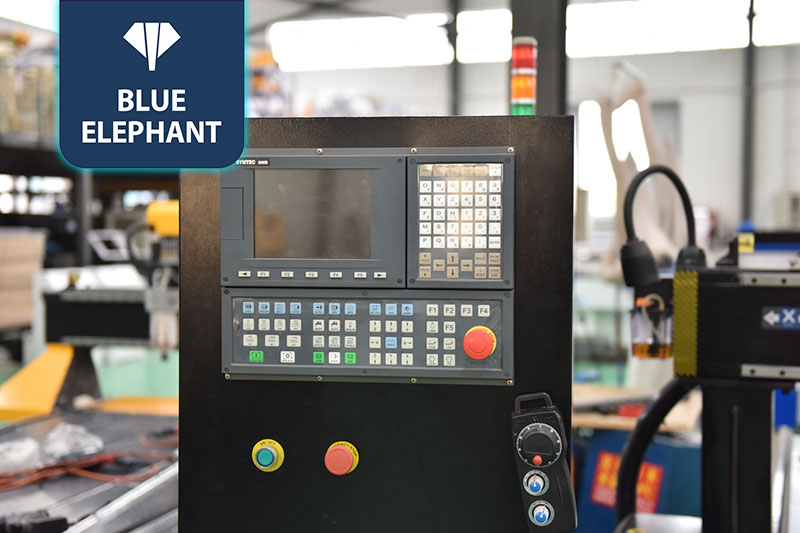

Control system Taiwan SYNTEC control system with handle
Spindle 9kw Italy HSD ATC air cooling spindle
Tool holder ISO30
Inverter 11kw Delta Inverter
Motor &Driver 850W Japan YASKAWA motors and 1kw drivers
Traveling speed 45m/min
Working speed 25m/min
Auto tool changer magazine Carousel
Tool slots 8
Table surface T-slot and vacuum working table
Lubrication system Automatic lubrication system
Gantry structure Gantry moving
Structure New type thicker and bigger heavy duty welded frame and gantry
Transmission X,Y rack and pinion drive, Z Taiwan TBI ball screw
Rail ABBA Linear square guide #25
Vacuum pump 5.5kw water circulation vacuum pump (220V, 3Phase, 60Hz)
Dust collector 1.5kw new type double packet dust collector(220V, 3Phase, 60Hz)

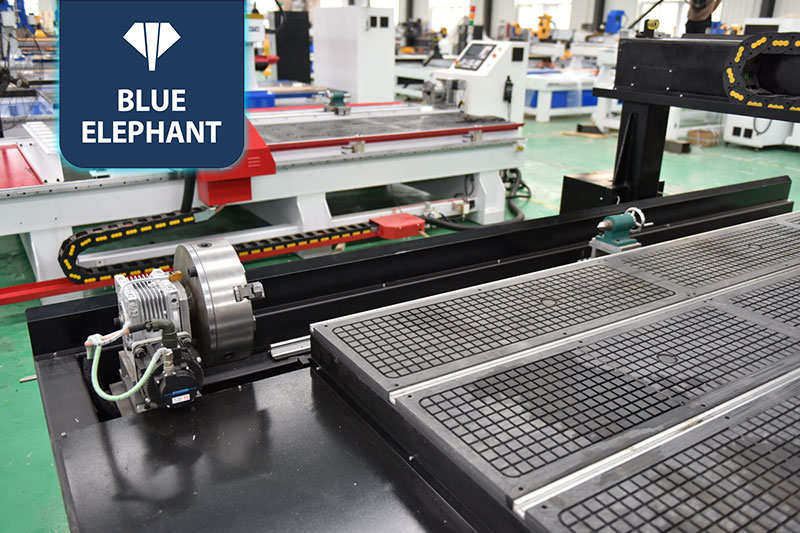

Rotary device diameter 300mm
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
