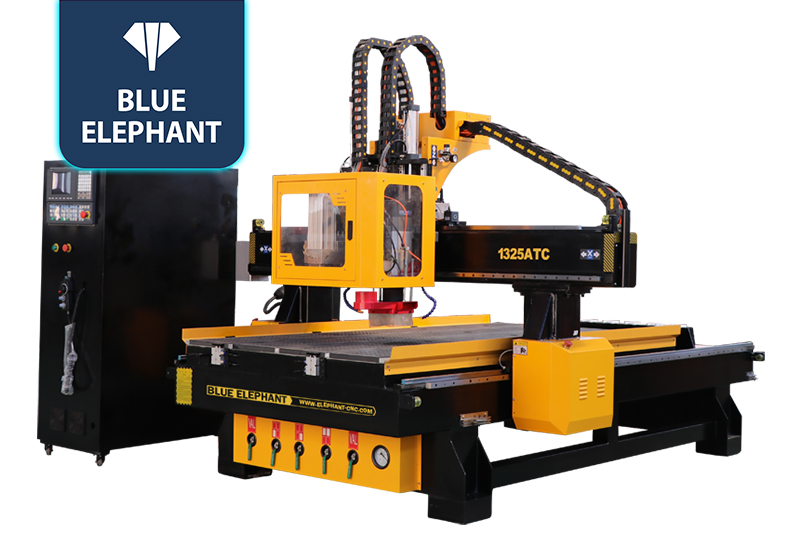

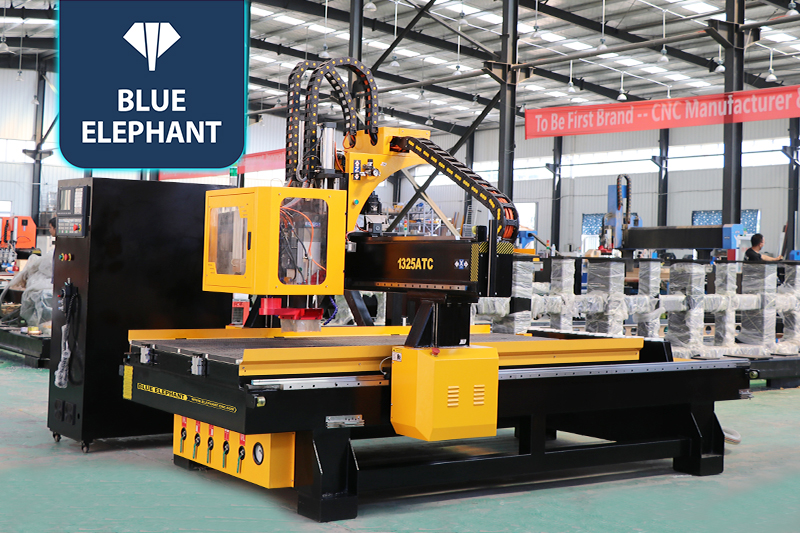

Top Ranked ATC 1325 CNC Router with Drilling head for Sale at Cost Price in Liechtenstein, Palestine
☆This heavy-duty 1325 ATC CNC router machine can realize the cutting, engraving, drilling, and other functions of most hardwood and softwood, PVC, acrylic, aluminum, etc. It can drill horizontal and vertical holes automatically and quickly due to the drill bank.
ATC CNC Router Machines Video
Features

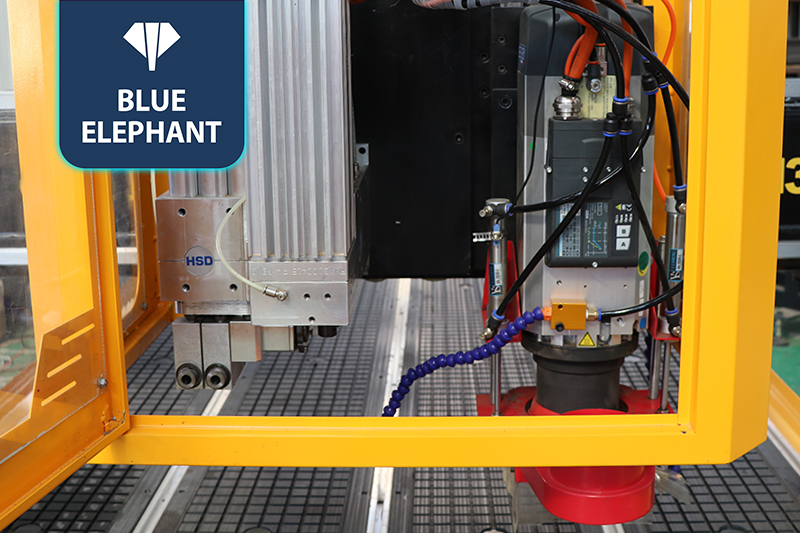

- With a drill bank carrying both vertical and horizontal drills, this ATC wood router can drill vertical and horizontal holes automatically without changing tools manually.
- The working size of 1300x2500mm is perfect for processing the MDF, plywood, and melamine boards with a size of 1220x2440mm.
- All parts and components of this CNC router machine adopt famous-brand or high-quality products to ensure long service life and safe and reliable operation.
Parameters
| Model | ELECNC1325ATC |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm,etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Taiwan or Italy 9+3+1 drill head |

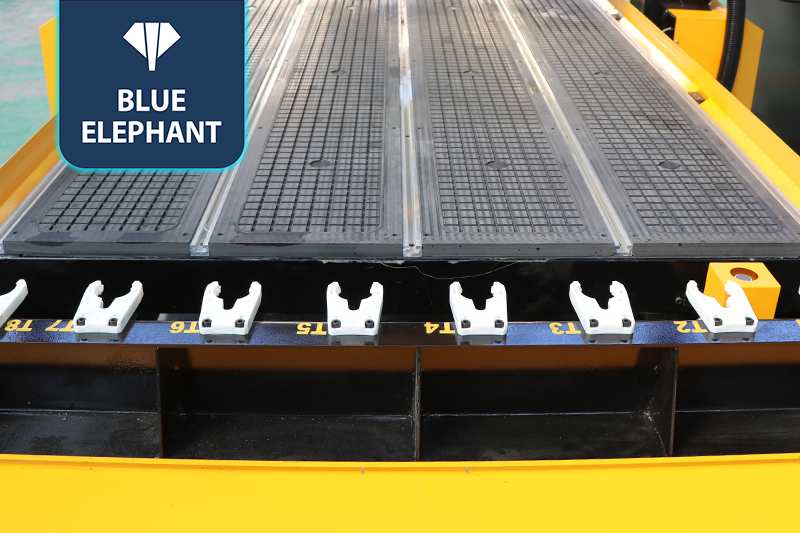

| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam,Type 3,Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
