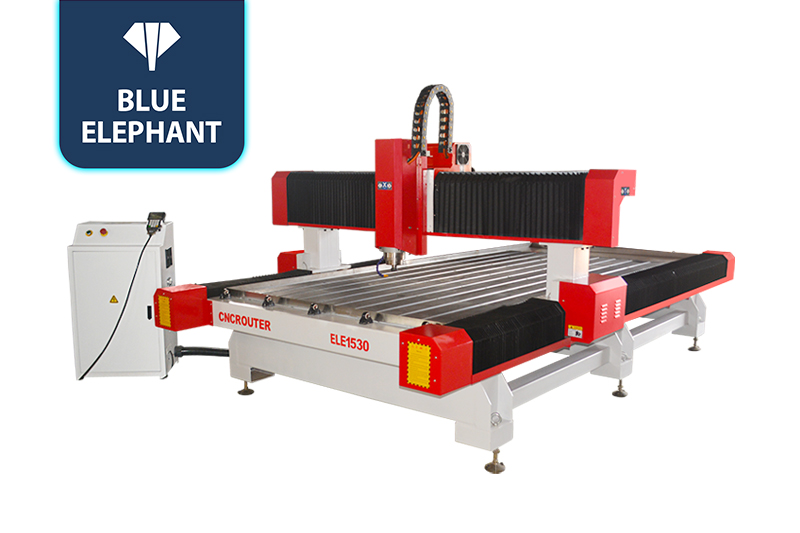

1325 CNC Marble Stone Engraving Machine for Sale

☆This CNC marble engraving machine is also called CNC granite carving machine. It is mainly used for various stone engraving and carving. Equipped with best CNC kits, it has the advantages of better cooling effects, high engraving speed, and high carving accuracy. Now it is for sale at the best price.

Stone Engraving Machines Video

Parameters

Model ELECNC1530S
X,Y axis travel 1500x3000mm
Z axis travel 200mm, option: 300mm, 400mm, 500mm, etc

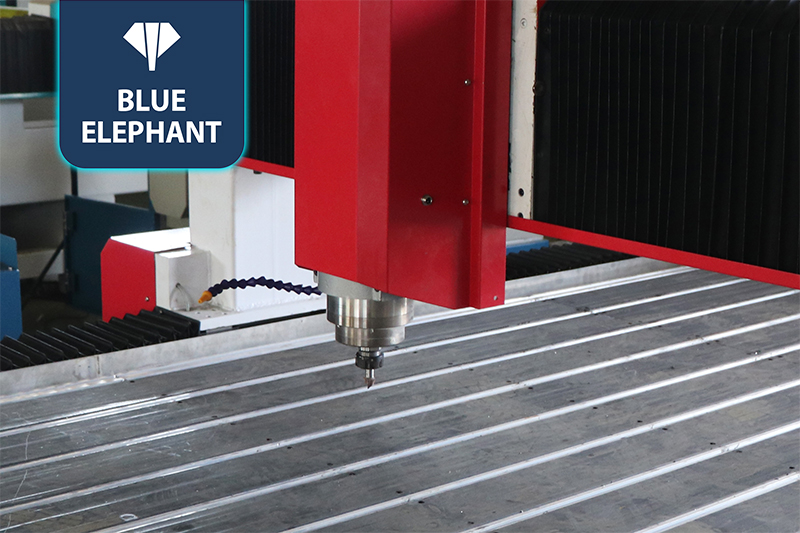

Spindle type 4.5kw water cooling spindle, ER25
Inverter type 5.5kw
Tool magazine Not included
Tool holder with collet ER25, collet: φ4, φ6, 1/8, 1/2
Control system DSP A11 handle controller, Option: NK105
Driving system Stepper motor FL118 bigger mode and Leadshine DM1182 option: Leadshine 750w Hybrid easy servo motor
Reducer Not included, optional Japan Shimpo
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder Option: 5 pieces (X2, Y3)
Linear guide Taiwan linear guide, 25mm
Transmission X,Y, Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Easy tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language G Code & M Code
Traveling speed 30m/min
Working speed 0-15m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Features

  • Heavy duty machine structure can ensure higher stability during the stone carving process.
  • DSP A11 handle control system can also be replaced by a NK105 controller, both are easy to use even for beginners.
  • 1500x3000mm effective working table size is big enough to process large stone plates. Moreover, the worktable size can be costomized according to customers’ needs.

Application

Stone CNC engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, plastic, chemical composite board, and other materials. It is widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, drain tanks, etc.
