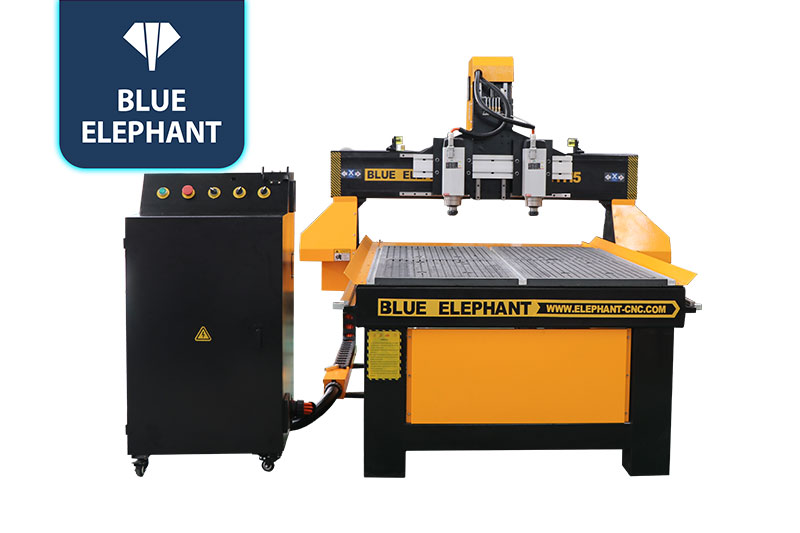

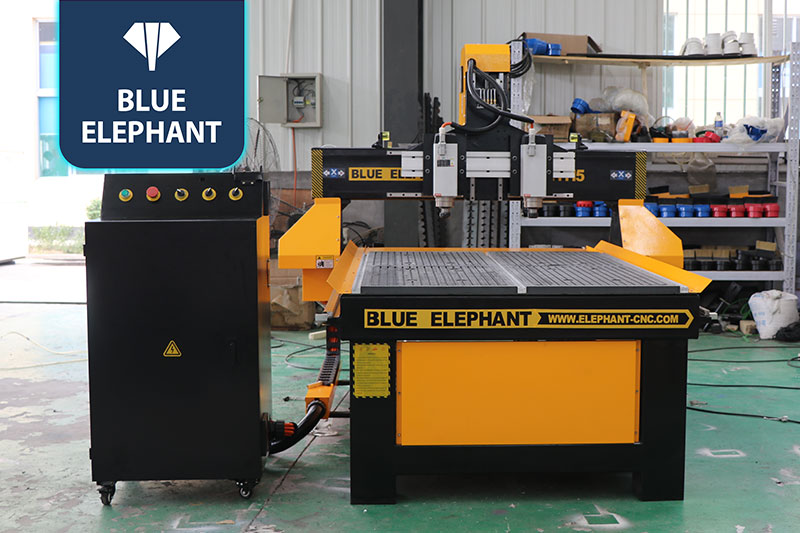

Custom1115 Multi-head CNC Wood Machine Price in UK, Egypt
☆It is an economical wood cnc router machine that specially designed for European furniture.
CNC Router Machines Video
features
- DSP control system is easy to learn and customer feedback is better.

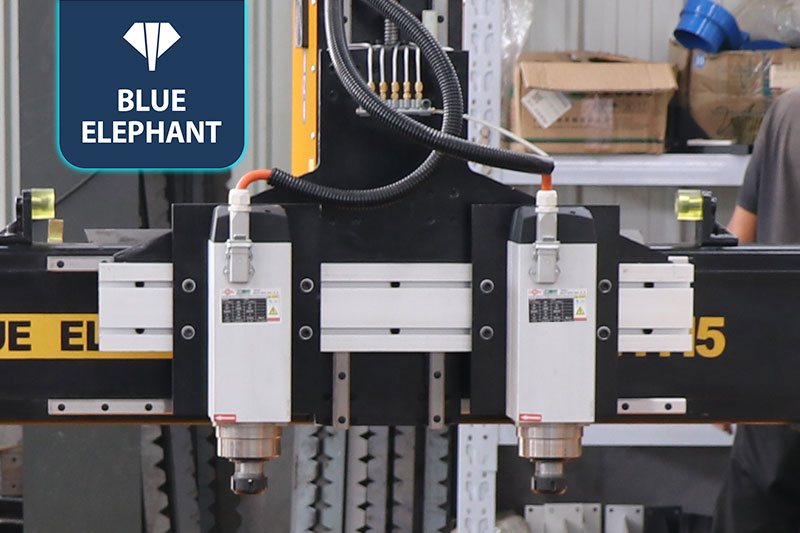

- There is no need to manually change the tool during working, and the two independent spindles work together to achieve high production efficiency and stable performance.
- All the specifications can be made and designed follow your own situation.
Parameters
| Model | ELECNC-1115 |
| Working area | 1100*1500mm*200mm ( can be customized) |
| Voltage | 380V, 3ph, 50Hz (option) |
| Control system | DSP A11 control |
| Spindle | Changsheng 5KW Air cooling spindle, 2 heads, 24000RPM |
| Inverter | Taiwan Delta inverter 5.5KW |
| Motor and driver | 750w Yaskawa servo motors and drive |
| Table structure | New type thicker and bigger heavy duty body |
| Table surface | T-slot and vacuum work table |
| X,Y, Z axis transmission | Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis |
| Linear rail | Taiwan HIWIN Linear square guide #20 |
| Control box | Independent computer control box |
| Limited switch | Japan Omron limited switch |

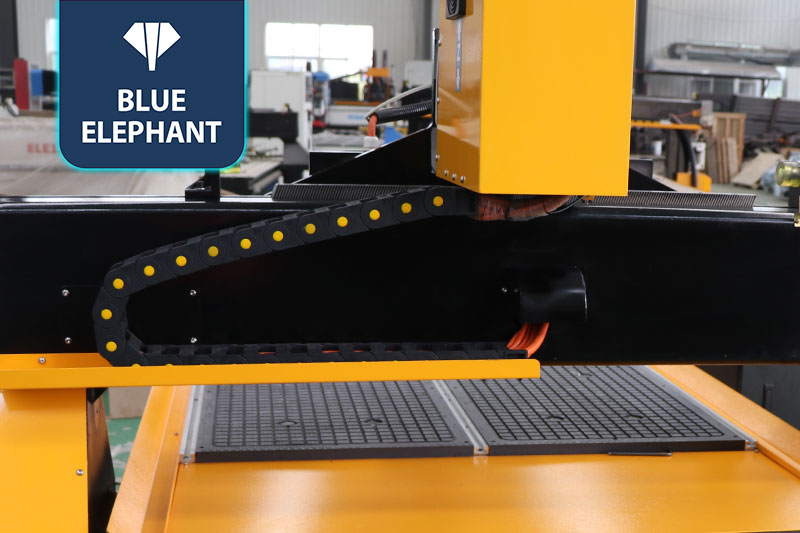

| Towline | Highly flexible towline, fire-resistant double-sheathed shanghai Cardiff cable |
| Option | whirlpool pump 5.5kw |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, couches, stools, benches, beds, desks, night stands, bunks, cupboard, tea boards.
Decoration industry: door frames, handrails, building columns, pillars, table legs, chair legs, photo frames, mirror frames, screens, lights, holiday decorations.
Craft industry: artworks, gifts, souvenirs, clock frames, stamps, badges, medals, trophies, holiday ornaments.
