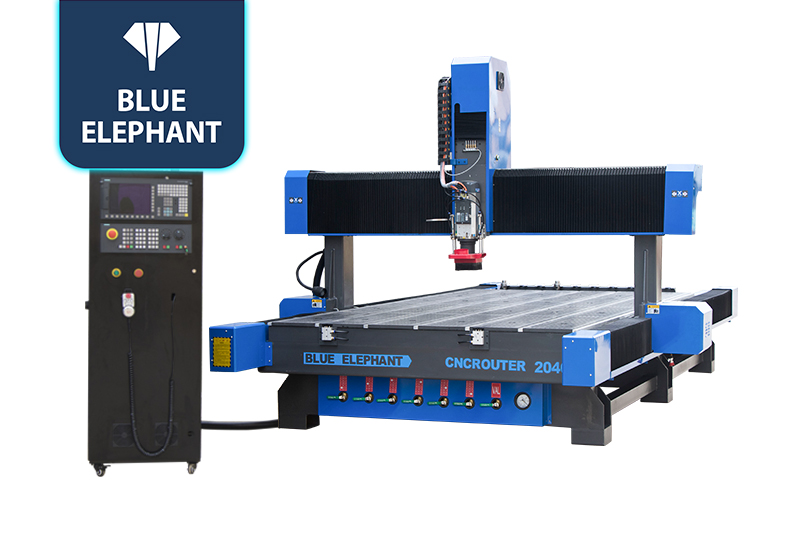

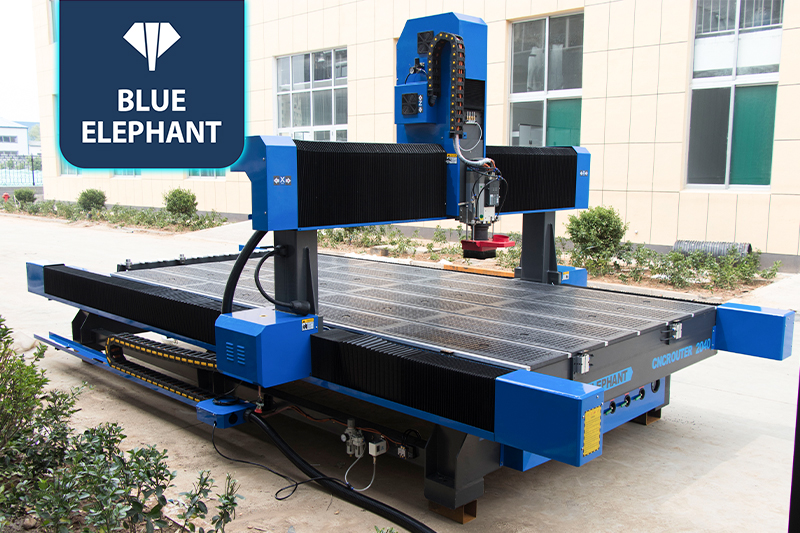

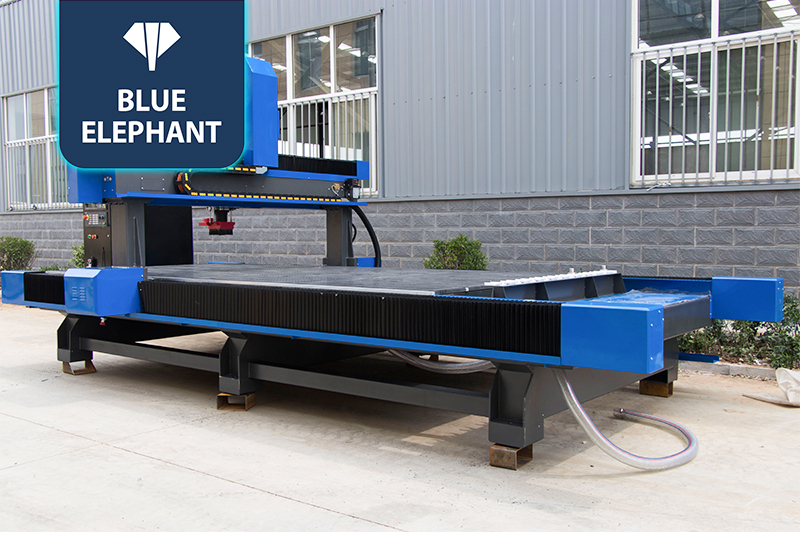

Best Selling 4 Axis Wood CNC Machine with Good Price for Sale in CA,Sri Lanka
☆The rotary CNC router spindle and high Z-axis travel enable this CNC router machine to carve and engrave thick and tall 3D workpieces. Besides, it can exchange among 8 CNC router tools automatically in the disc tool magazine, improving work efficiency and saving labor force.
4 Axis CNC Router Machines Video
Features
- Equipped with a 9kW air-cooled spindle that can rotate 90 degrees respectively to the left and to the right, this CNC machine can complete powerful cutting and engraving work with fast speed and high accuracy.
- Two press rollers on the worktable can help fix and press the wooden board during operation, avoiding moving and sliding.
- Specifications of this CNC router machine can be customized to meet different processing demands.
Parameters
| Description | Parameter |
| Model | ELECNC1540ATC-4 |

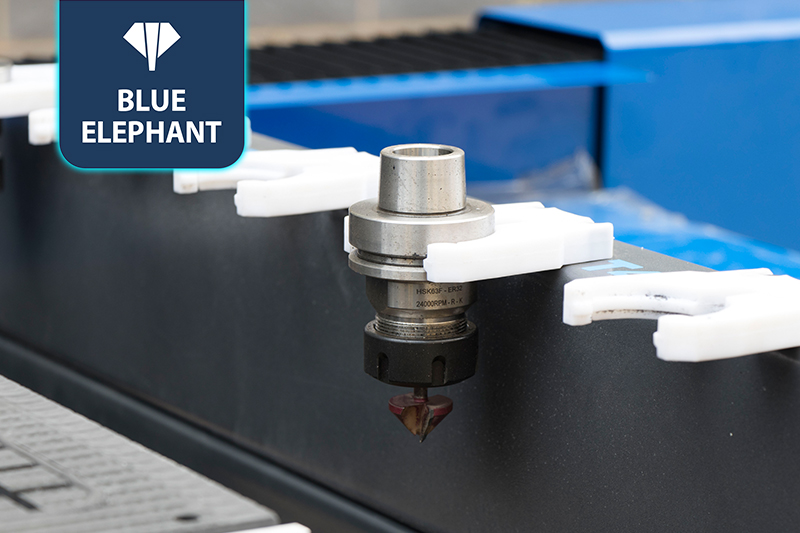

| Tool Magazine | Round or carousel type auto tool changer with 8 tools storage |
| X, Y, Z Working Area | 1500x4000x400mm |
| Table Surface | Vacuum and T-slot working table, 8 zones;
2 pcs roller in the front of table |
| Table Structure | New type thicker and bigger heavy duty welded frame and gantry |
| X, Y Structure | Rack and pinion drive, Sweden ABBA #30 square linear guide;
Dust cover for X, Y, Z axis |
| Z Structure | Sweden ABBA #30 square linear guide and TBI ball screw |
| Spindle | 9kW Chinese HQD air cooling spindle, swing to -90°to +90° |
| Spindle Speed | 0-24000rpm |
| Driver & Motor | 850W Japan YASKAWA servo motor and 1kW driver |
| Inverter | 11kW Fuling inverter |
| Working Voltage | 380V, 3phase, 50HZ (Can customize according to different countries’ policy) |
| Operating System | Taiwan SYNTEC 6MB control system |
| Computer Interface | USB |
| Lubrication system | Automatic lubrication system |
| Tool sensor | Automatic tool sensor calibration |
| Position cylinder | Auto position cylinder 6 pcs |
| Others | Japan Shimpo reducer;
Two sets of 7.5kW vacuum pumps; Japan Omron limit switch; 1.5kW new type double package dust collector |
Application
The 4 axis ATC CNC router here refers to the ATC CNC router with a rotating spindle, which can swing 180° from left to right. The working path of the 4 axis ATC CNC router includes X, Y, Z and A axis. So it is also suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.
