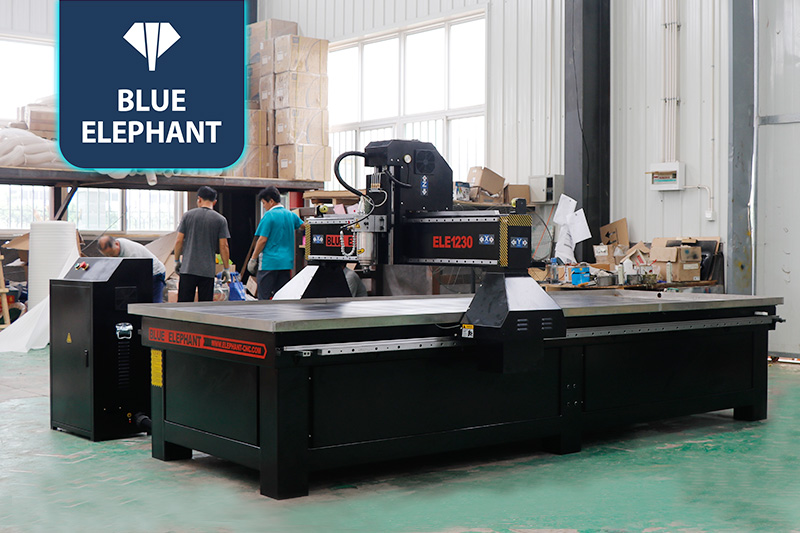

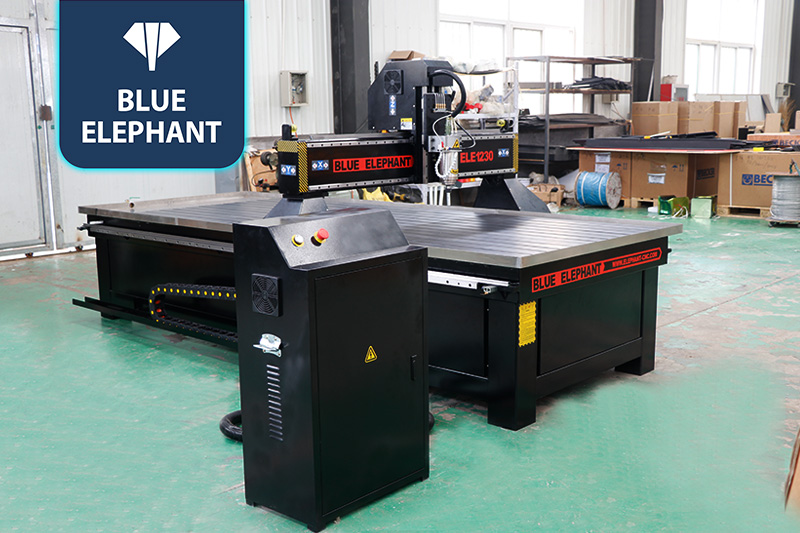

Best Cost 1230 Wood C N C Router for Thin Metal in Schwak, UK
☆It is the latest multi-functional CNC engraving machine designed for thin metal and heavy stone.
CNC Router Machines Video
features
- After improvement, the large water tank is more practical, avoiding the turbulent flow of water in the water spray process of spindle.
- Additional mist cooling spray device can help you process soft metals like gold, copper, aluminum, etc.
- The machine configurations such as working table, spindles, lubrication systm, and controll system can be made for your favor.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 1200x3000x200mm |
| Table Surface | T-slot +PVC protection working table |
| Structure | Industrial class square tube strong structure |
| X, Y, Z axis Structure | Rack and gear for 3 axis, X axis, Y axis, Z axis |
| Transmission | Taiwan PMI/ABBA square linear guide way for 20mm
Taiwan TBI ball screw |
| X,Y Resolution | <0.01mm |
| Spindle Power | Changsheng 3kw water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | FL118 stepper motor and YAKO2811 drive |
| Inverter | Fuling 3.7kw inverter |
| Control System | Mach3 3 axis control system |

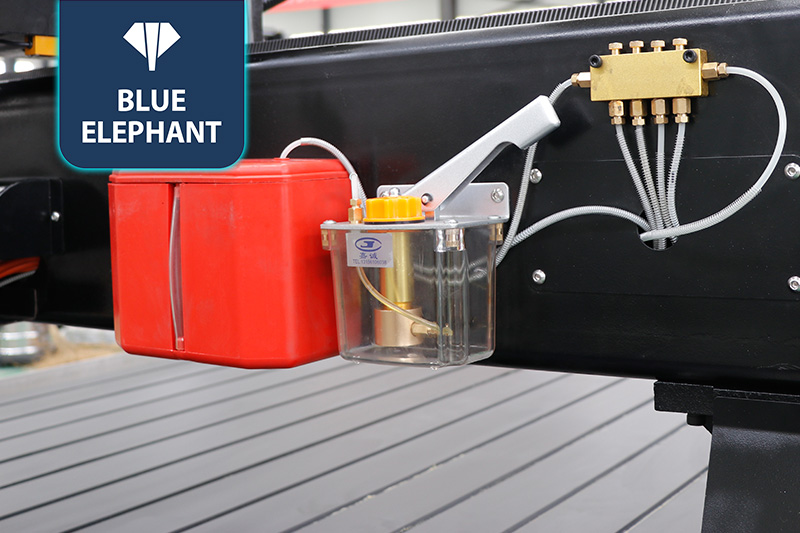

| Lubrication | Manual Lubrication system |
| Tool sensor | Manual tool sensor calibration |
| Control box | Single Control box |
| Option | Water tank for option;
Water mist cooling sprayer; Dust collector system |
| Limit switch | Japan OMRON limit switch for X, Y, Z axis |
| Command Language | G Code |
| Computer Interface | USB |
| Software Compatibility | ARTCAM software |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
Application
Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard.
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA.
Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones.
Soft metal: aluminum, brass, copper, mild steel.
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite.
