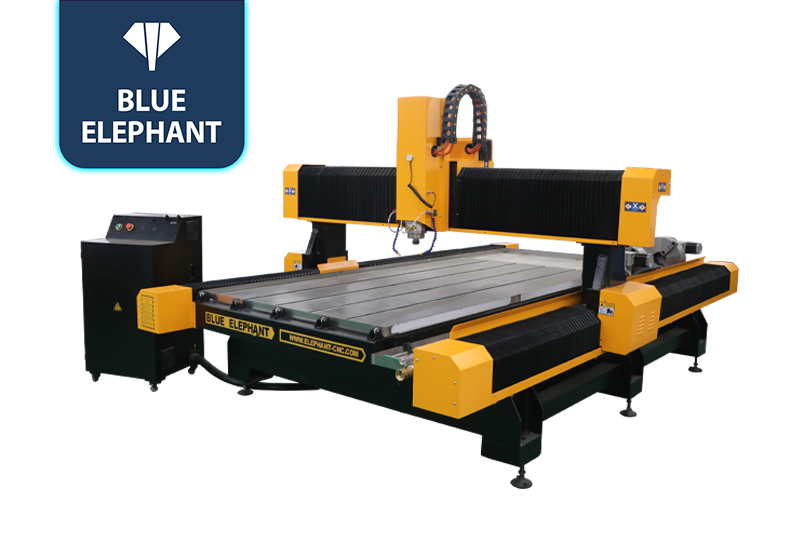

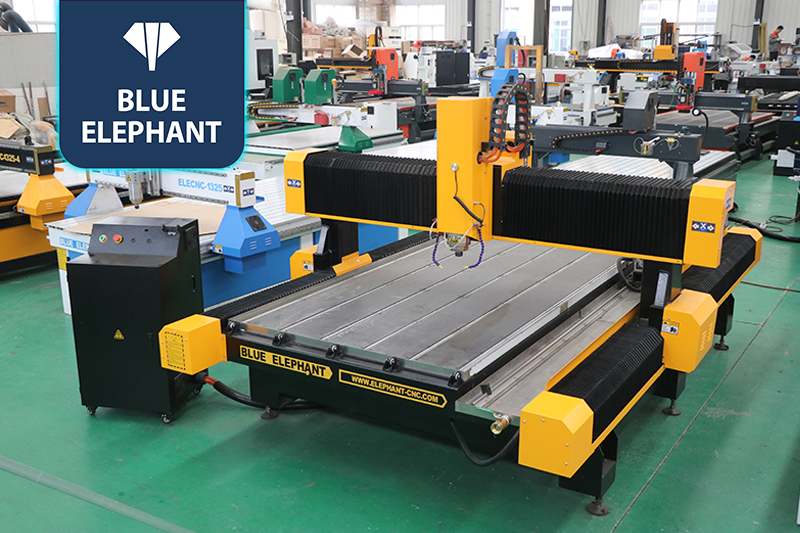

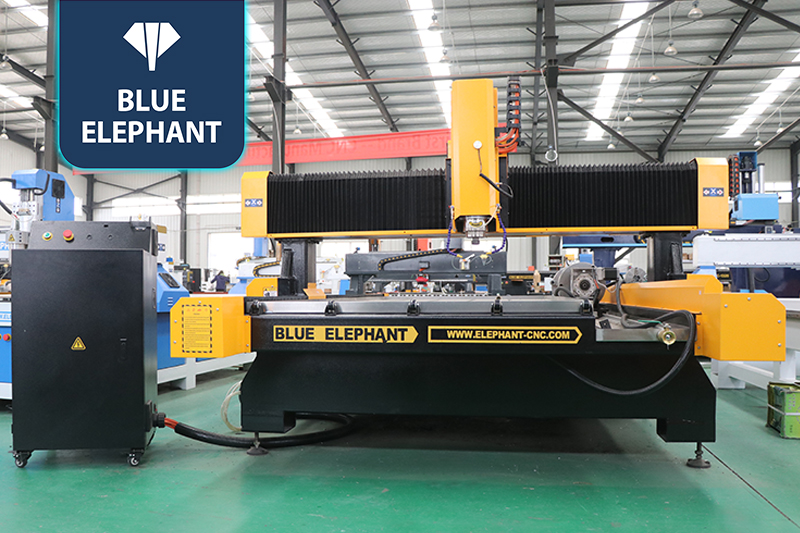

Customized 1325 Stone Carving Machine in Santos, Brazil Price
☆This typical stone CNC machine adopts accessories made of internationally renowned brands to ensure the machine has a long service life to the greatest extent. In addition, it has always been the ideal choice for the stone processing industry.
Stone Engraving Machines Video
Parameters
| Model | ELECNC1325 |
| X, Y axis travel | 1300*2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 300mm, option: 200mm, 400mm, etc |
| Spindle type | 4.5kw water cooling spindle |
| Inverter type | 5.5kw inverter |

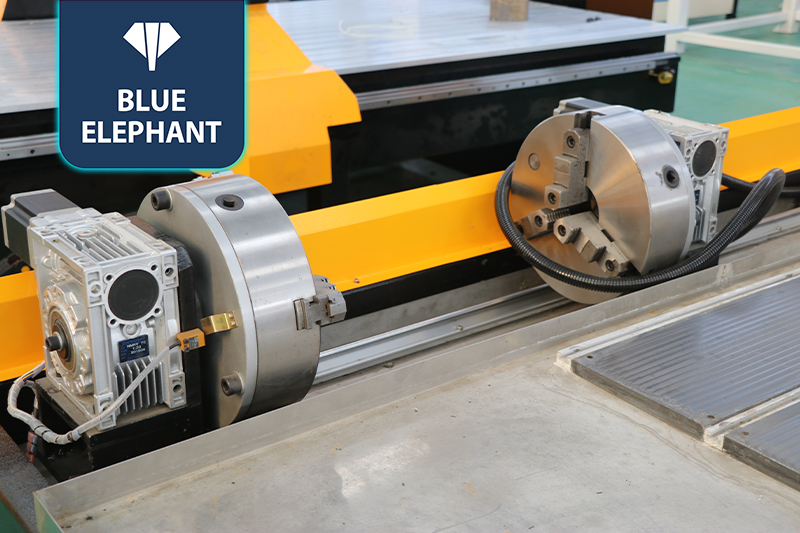

| Control system | Mach3 controller for 4 axis |
| Driving system | FL118 stepper motor and YAKO 2811 big driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Stone special working table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan helical rack and pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | automatic lubrication system |
| Tool calibration | Autotool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 25m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.05mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Features
- Heavy duty machine structure can ensure higher stability during the stone carving process.
- This stone machine accessories are made of internationally renowned brands to ensure the machine has a long service life to the greatest extent, and it has always been the ideal choice for the stone processing industry.
- Automatic lubrication system can save labor, improve operational efficiency, and prolong the life of lubricated components.
Application
Stone CNC engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, plastic, chemical composite board, and other materials. It is widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, drain tanks, etc.
