Purchase Cylindrical Plate turning Machine for Sale in Lithuania, US

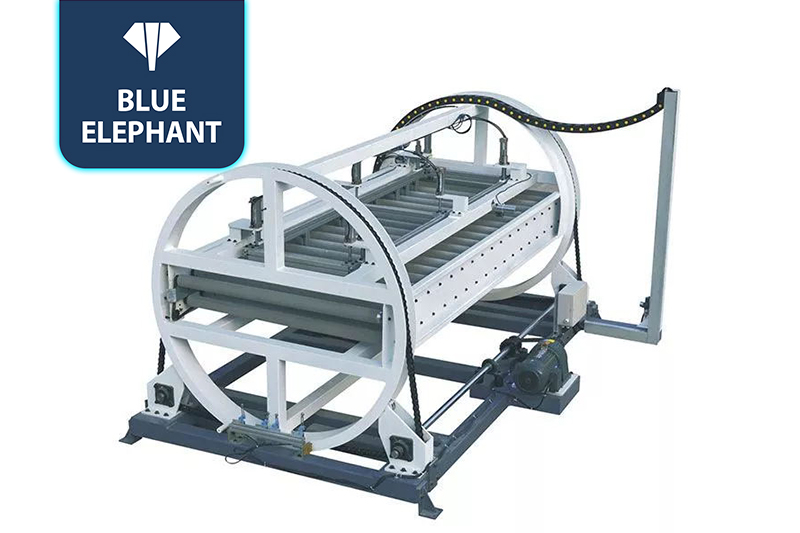

☆This is a kind of machine that mainly used to process plate-shaped stack material. It can automatically turn 180° during processing. Moreover, it is a necessary auxiliary equipment for the furniture automation production line.
Features
- It can reduce the labor intensity and improves the production efficiency.
- Adopts the hydraulic control mode, it is simple to control.
- The workpiece is turned by 180° by clamping the workpiece on both sides, which has the characteristics of stable operation, safety and reliability, high efficiency, and low energy consumption.
- The crank rocker mechanism or gear mechanism will readuce the surface scratches.
Parameters
| Model | FQ-HFBJ24 |
| Workpiece length | 1500-2440 mm |
| Workpiece width | 300-1220 mm |
| Workpiece thickness | 10-60 mm |
| Max workpiece weight | Max.50 kg |
| Working air pressure | 0.4-0.6Mpa |
| Working voltage | 380V/50Hz |
| Feeding height | 820-900 mm |
