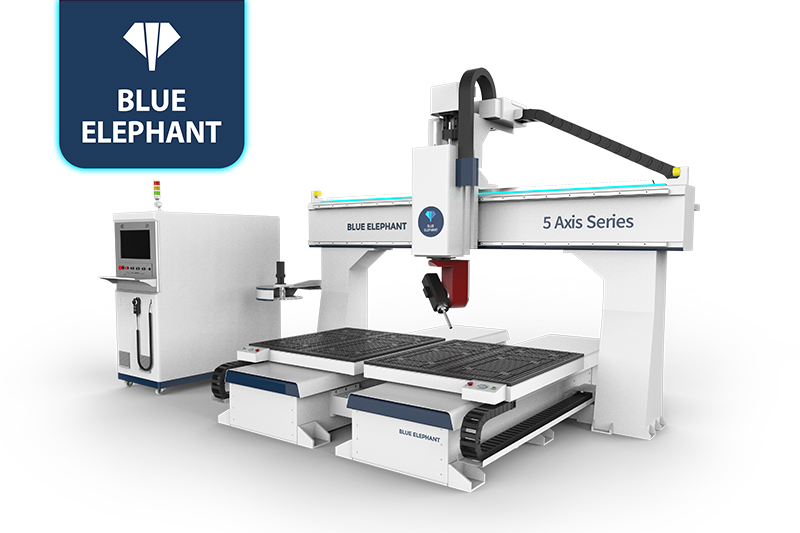

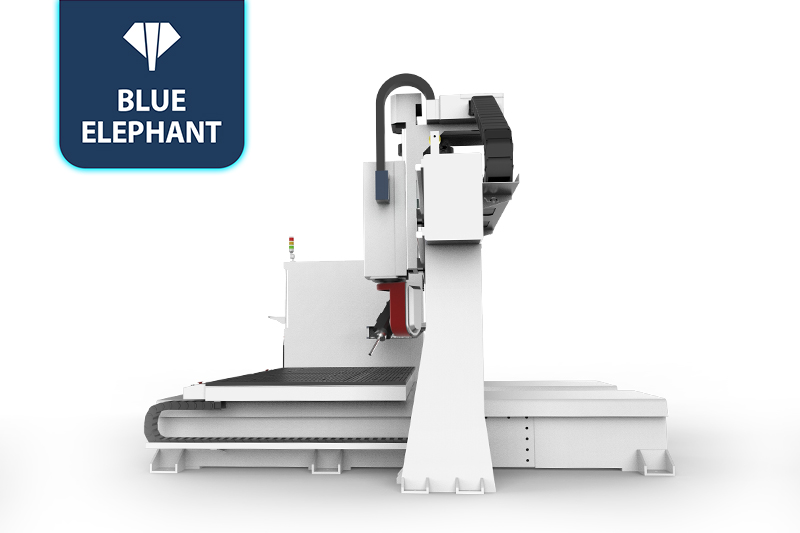

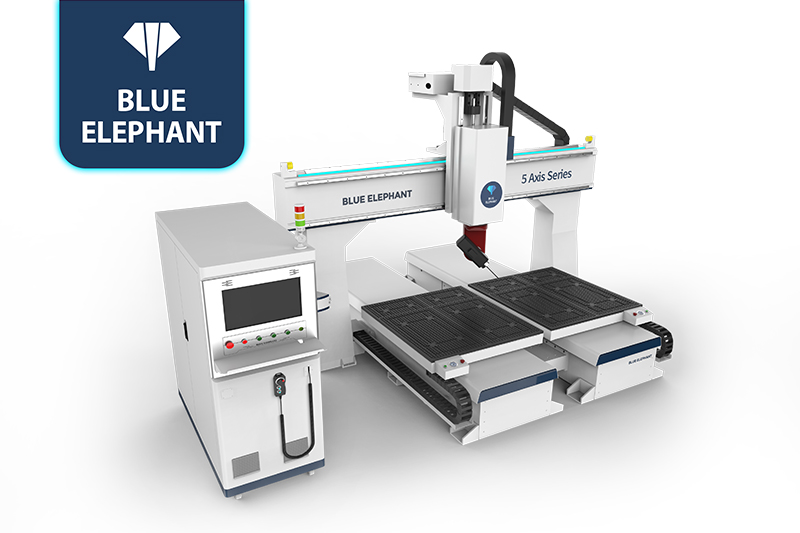

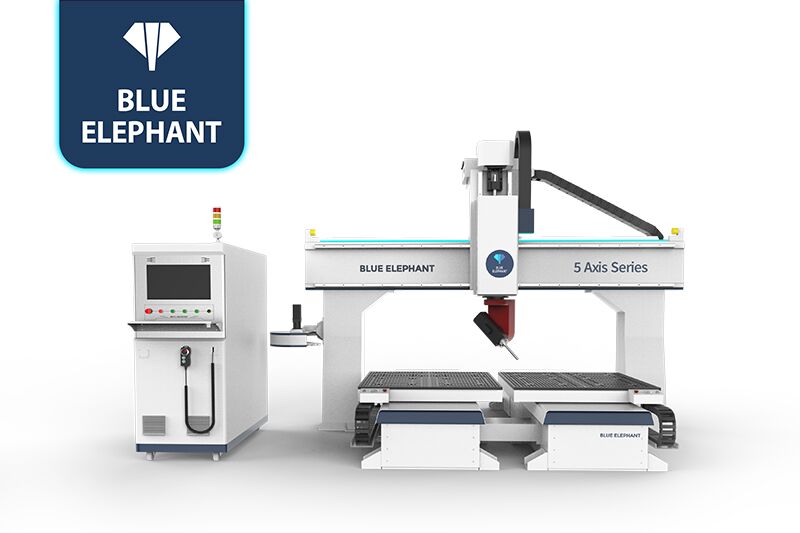

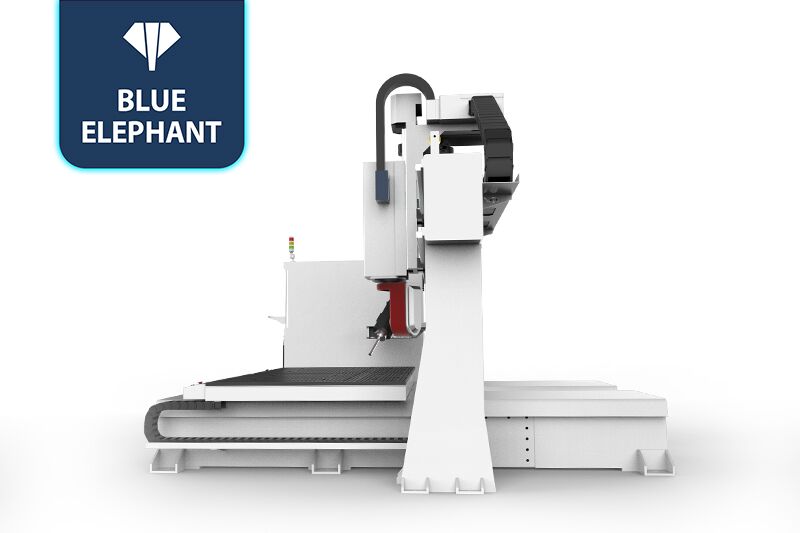

Purchase Double Table 5 Axis CNC Machining Center for Sale
☆This is a high end and upgrade 5 axis CNC router machine with two worktables. It can reduce non-productive time and improve work efficiency.
CNC Router Machines Video
features
- All components are from international famous brands, which will prolong the machine service life and ensure good processing effetcs.
- Two movable worktables can realize processing and loading & unloading at the same time, which greatly improves work efficiency.
- With a carousel tool magazine, it can extend the processes and increase work efficiency.
Parameters
| Model | 1200×1200-2-850 5 axis machine |
| X,Y axis travel | 1200X1200mm |
| Z axis travel | 850mm |
| Spindle type | 10KW Italy Hiteco TILT-JQS-02 |
| Inverter type | 15kw Taiwan Delta inverter |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Carousel tool changer with 8pcs magazine |
| Tool holder with collet | 8 pcs HSK F63 tool holder |
| Control system | Syntec 610-E5 5 axis control system with RTCP functions |
| Driving system | X,Y,Z axis 1.8kw Japan Yaskawa servo motors A,C axis: 750W Japan Yaskawa servo motors |
| Reducer | Japan Shimpo VRB-115C-10-K3-1.8KW |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Removable working table T-slot working table with PVC protection |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | X axis: Taiwan 30# Linear guide, 2 sets Y axis: Taiwan 30# Linear guide, 4 sets Z axis: Taiwan 30# Linear guide,1 sets |
| Transmission | X axis:Taiwan Linear Grinding grade racks M2-1000, 4 sets Y axis:Taiwan TBI Grinding grade screw, 4040-3100, 1set Z axis:Taiwan TBI Grinding grade screw, 3210-1300, 1set |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill software |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-60m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 380V 3PH 50HZ/ 60HZ |
Application
5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove.
In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.
