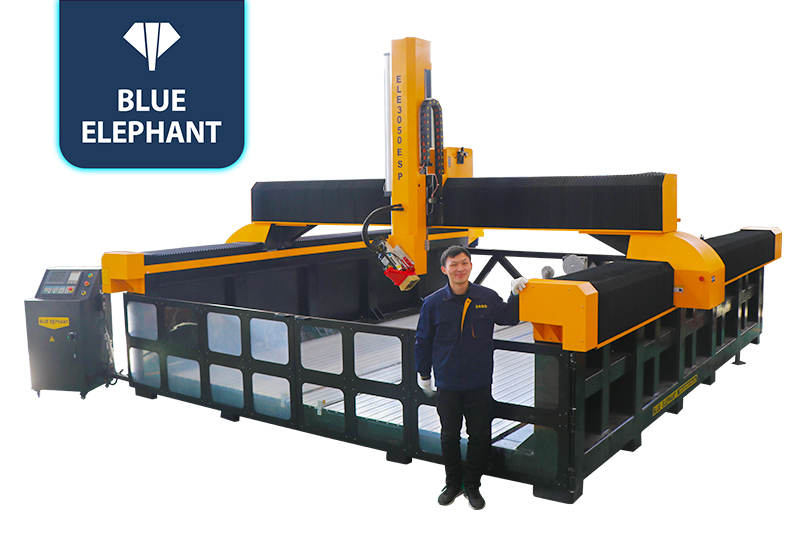

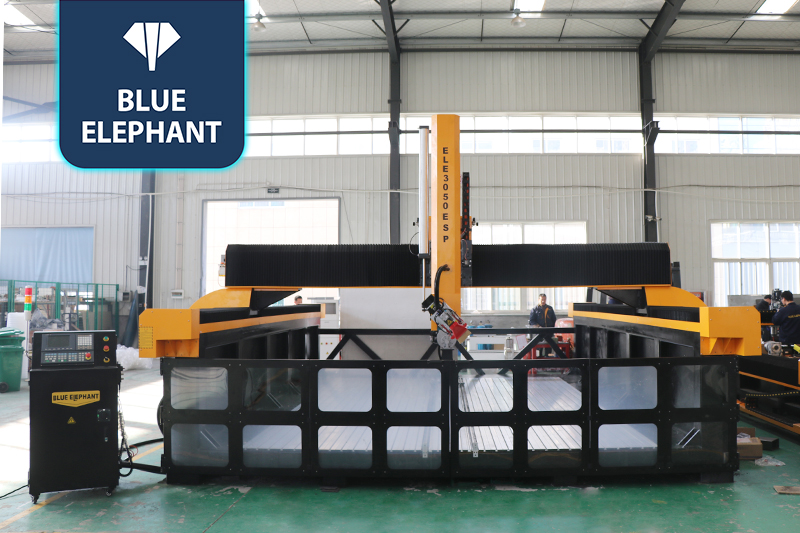

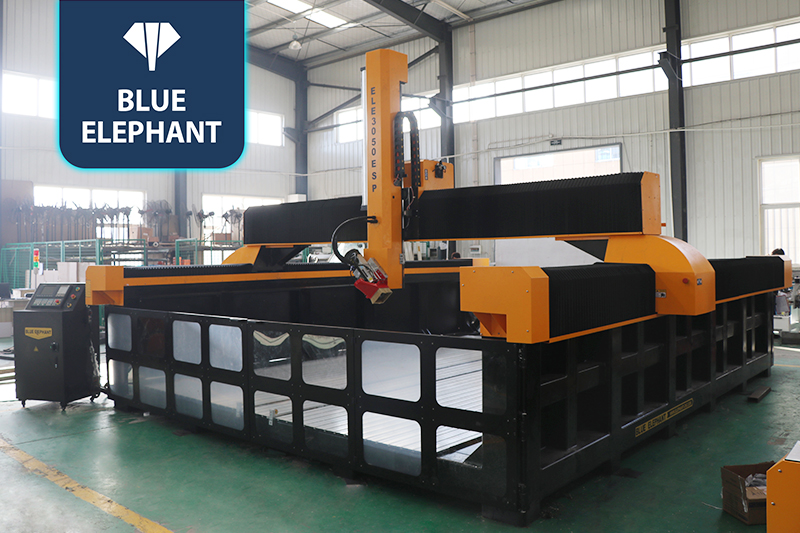

Buy 3050 EPS CNC Foam Engraving Machinery in Australia
☆Equipped with a linear tool magazine and four-axis spindle, the machine has wider use.
CNC Router Machines Video
features
- Heavy Duty 5-8 mm Steel welded machine structure can ensure very good stability during the processing.
- The z-axis is obviously heightened, which is especially suitable for mold industry.
- All the machine configurations can be customized according to you needs.
Parameters
| Description | Parameter |
| Serial Number | S20200119M |
| X,Y,Z Working Area | 3000x5000x1100mm |
| Frame | Heavy Duty 5-8 mm Steel welded, 5 axis CNC machine center milling the steel bed in smooth |
| Y Structure | Helical rack gears for X, Y axis |
| X,Z Structure | Taiwan TBI ball screw for Z axis |
| Spindle Power | 9KW HQD Original Air cooling spindle |
| Spindle Speed | 6000-18000rpm/min. |
| Drive Motors | 1.5KW Japan Fuji Servo Motor with its driver |
| Working Voltage | AC380V/50Hz,3PH (Option: 220V)) |
| Inverter | 11KW Fuling Inverter |
| Linear rails | Taiwan PMI Square linear rails |
| Operating System | Taiwan 6MB Control System |
| Lubrication system | Automatically lubrication system |
| Computer Interface | USB |
Application
Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.
Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials. Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.
