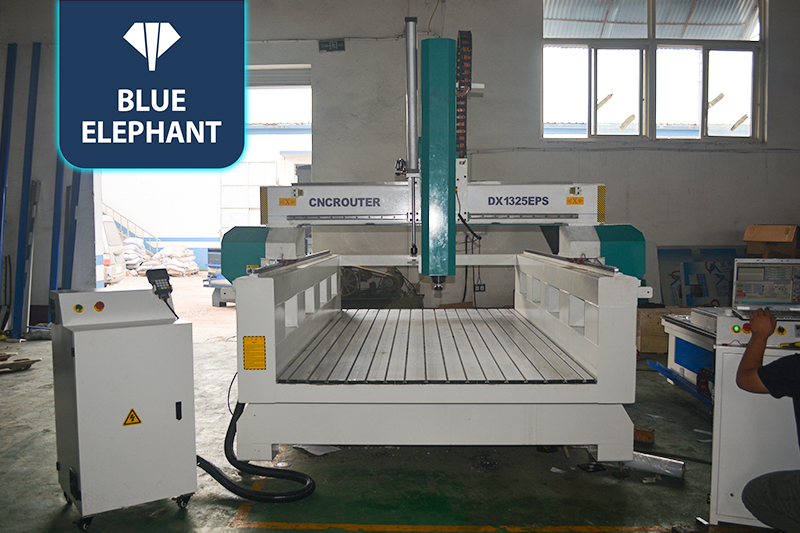

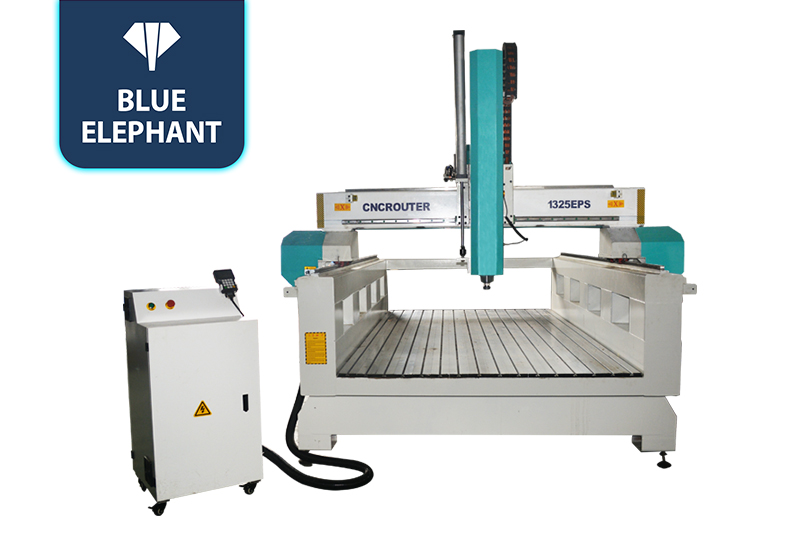

Affordable 1325 EPS Foam CNC Engraving Machine for Sale in the USA, Belarus, Austria
☆It is one of the most popular eps foam C N C router machine for sale in China. Adopts various famous and good-quality components, it has high precision, good cutting effects, high stability, high efficiency, etc.
CNC Router Machines Video
features
- DSP A11control system is easy to use even for beginners.
- 1300x2500mm effective working table size is big enough to process common stone plates.
- All accessories are made of internationally renowned brands to ensure the machine has a long service life.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x700 mm |
| Frame | Divided structure bed structure ,Fixing with screws |

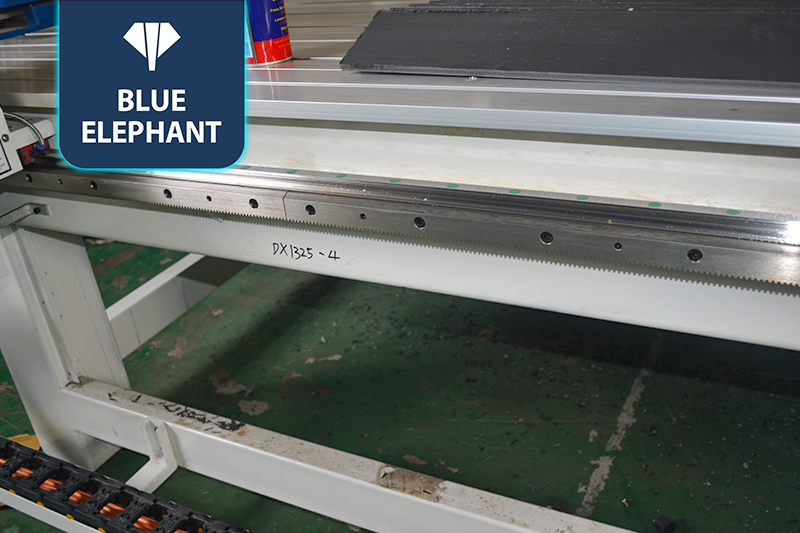

| X,Y Structure | Helical rack gear , 4pcs HIWIN #30 Linear guide |
| Z Structure | TBI ball screw,6 pcs slider for z axis |
| Max. Power Consumption | (Without Spindle) 6Kw |
| Spindle Power | Italy HSD spindle 7kw |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Japan 1.5W YASKAWA |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| Inverter | E-type 7.5kw Taiwan Delta Inverter |
| Operating System | DSP A11 |
| Computer Interface | USB |
| Flash Memory | 512M |
| Collet | ER32 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | UG,Power mill |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
| Command Language | G Code |
Application
Die and mold industries: The machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds,etc.
Musical instrument industry: The machine can also engrave large 3D curved surface instruments and contour cutting.
Production Facility
Quality Control & Testing
