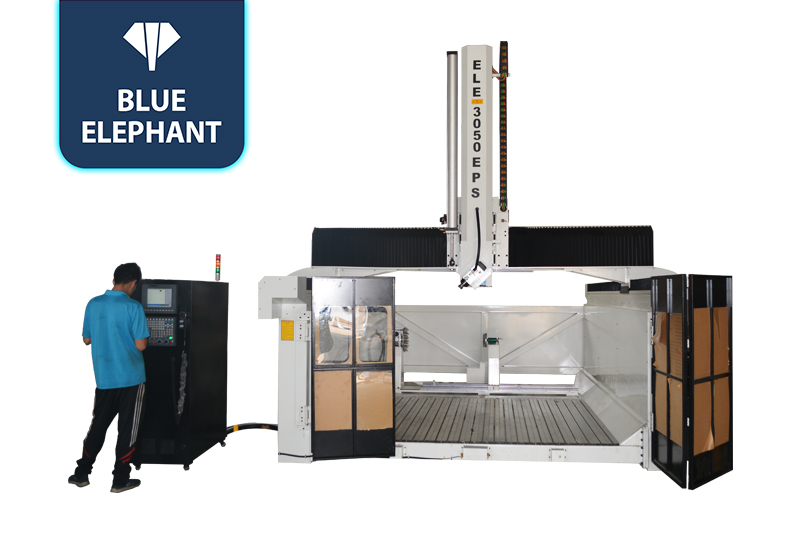

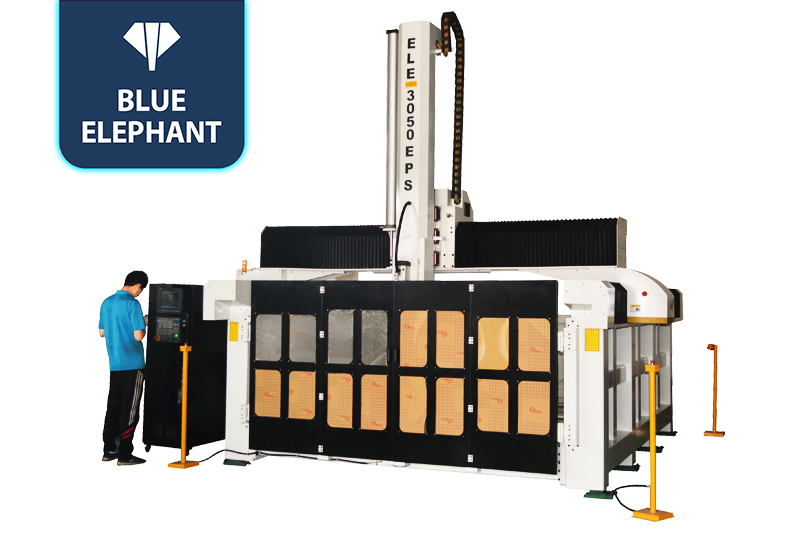

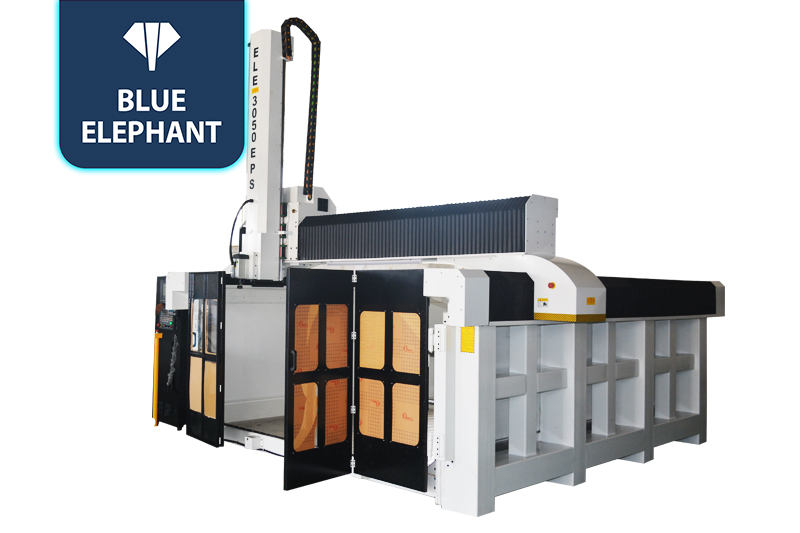

Best EPS Styrofoam 5 Axis CNC Router for Sale in Chile,UK, Australia
☆This machine has a much larger working table and higher Z axis, which can process big foam molds with high efficiency.
CNC Router Machines Video
features
- The height of z axis and the whole working size can be heightened according to your special requirements.
- Automatic lubrication system can prolong the machine service life.
- Cycloidal pin wheel precision reducer is with high transmission accuracy and torsional stiffness, which can swing from -90 degree to +90 degree.
Parameters
| Model | ELECNC3050 EPS |
| X,Y axis travel | 3000*5000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 800mm, option: 1100mm, 1200mm,1000mm, etc |
| Spindle type | 6kw HSD air cooling spindle |
| Inverter type | 7.5kw Delta inverter |
| The 4thaxis | cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |
| Control system | SYNTEC 60WE controller |
| Driving system | 850W Japan Yaskawa servo motor and 1kw Yaskawa driver |
| Reducer | Japan Shimpo Reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | T-Slot & aluminum work table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | automatic lubrication system |
| Tool calibration | Autotool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire,etc |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.8mpa |
| Rotary device | 200mm rotary device |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Die and mold industries: The machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds,etc.
Musical instrument industry: The machine can also engrave large 3D curved surface instruments and contour cutting.
