Best 2030 3D EPS Styrofoam Cutting Machinery in Dominica, Ecuador for Sale

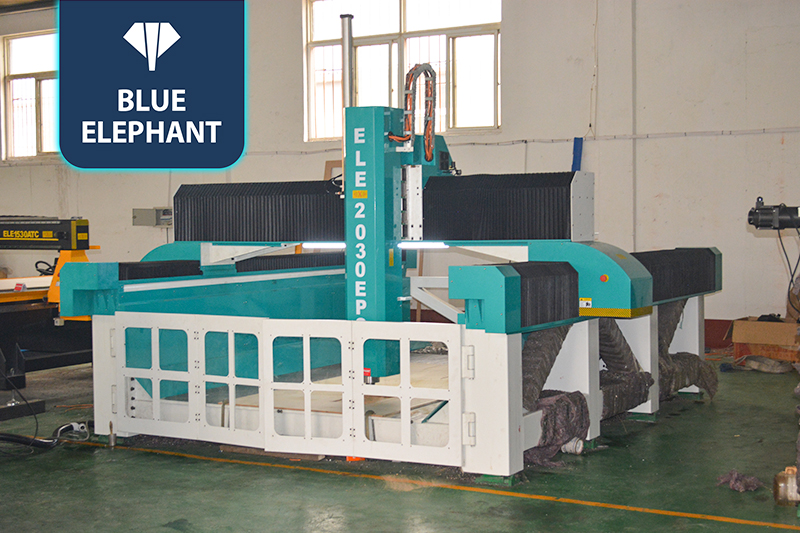

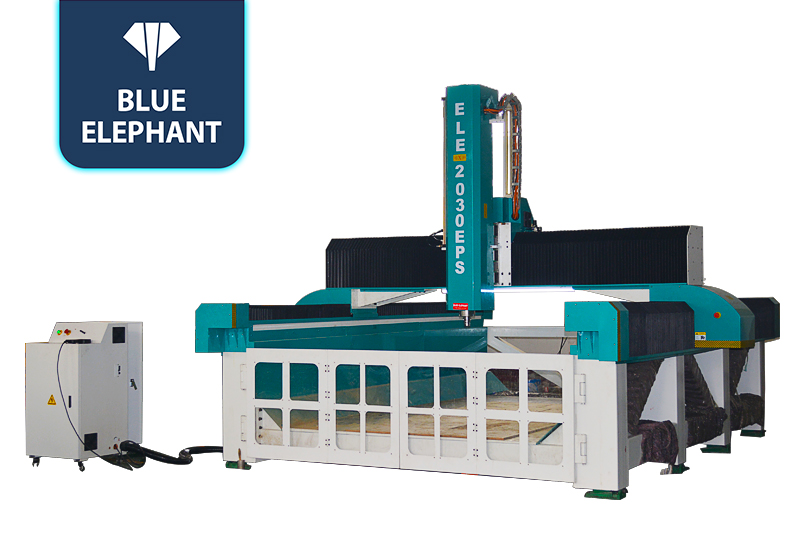

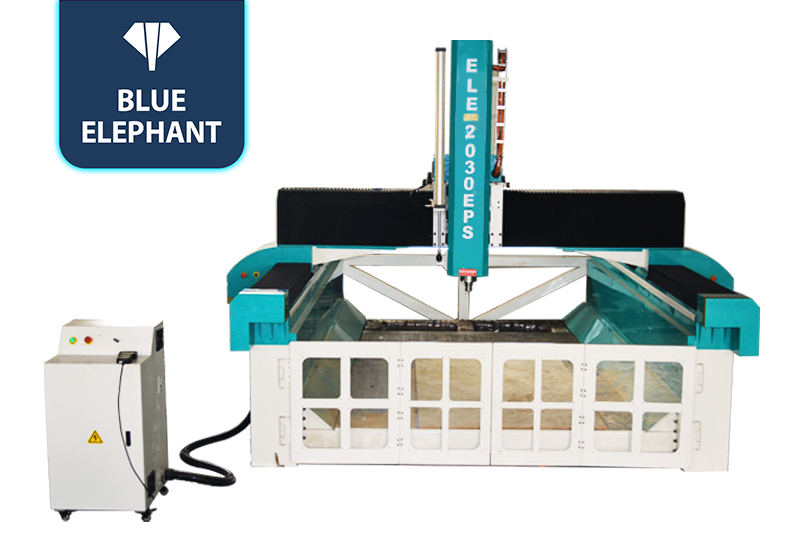

☆This 3D CNC foam cutting machine is tested to the limit for sturdiness and reliability. And it is the first choice for large workpieces.
CNC Router Machines Video
features
- Adopting 7.5kw Changsheng water cooling spindle, it can guarantee maximum processing efficiency.
- The working size can be increased according to your special requirements.
- With NK 105 controll system, it has the break point resume function and high precision.
Parameters
| Model | ELECNC2030 EPS |
| X,Y axis travel | 2000x3000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 8000mm, option: 900mm, 1000mm, etc |
| Spindle type | 7.5KW water cooling spindle |
| Inverter type | 7.5kw Fuling Inverter |
| Control system | Weihong NK105 controller with hand wheel guide |
| Driving system | 850KW YASKAWA servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot work table with PVC Protection |
| Linear guide | Taiwan linear guide with dust proof |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |

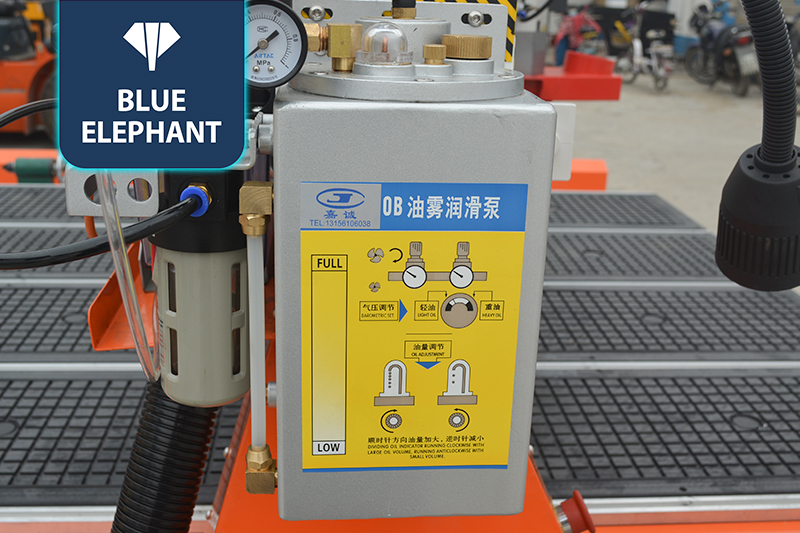

| Lubrication system | Manual lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-45m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.
Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials.
Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.
