Buy Best Steel Laser Cutter with Exchange Platform in Dominica, Sudan

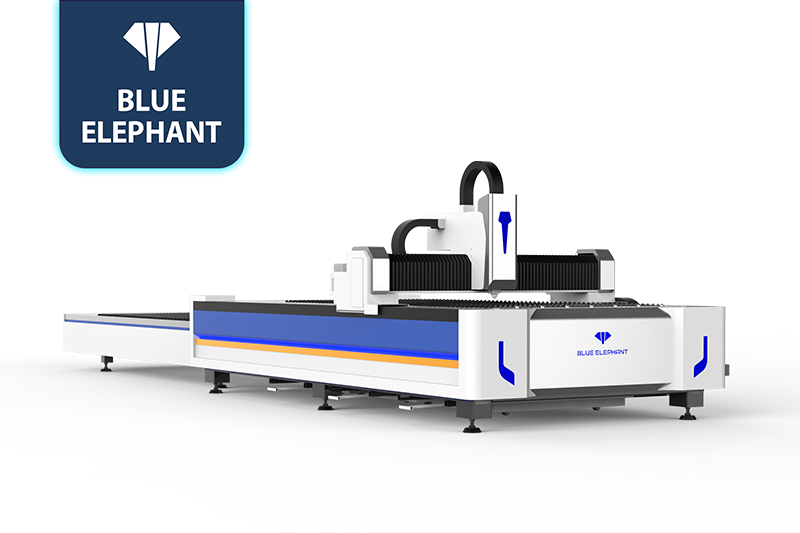

☆This sheet steel fiber laser cutting machine is equipped with an exchange platform.The two processing platforms can realize the loading and unloading at the same time, which saves a lot of time than the manual method.

Laser CNC Machines Video

Features

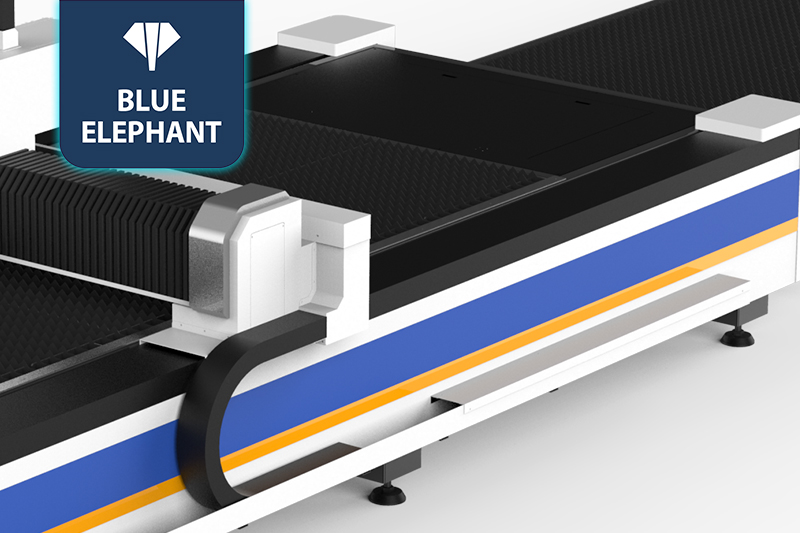

  • Equipped with an up and down exchange working table, it can finish the platform exchange within 15s, which greatly improve the processing efficiency.
  • It has low electric power consumption, only about 20%-30% of traditional CO2 laser cutting machine.
  • Adopt world-class fiber laser kits, it has the features if stable performance, high precison, and good processing effects.
pro-bed

The Tube Welded Bed

High strength, not easily deformed

Heavy duty design ensures that the bed will not be deformed for many years, it is more stronger and has a high tensile.

More stable

We choose rectangular tubes with thicker wall than common machines. It is well welded, and make the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.

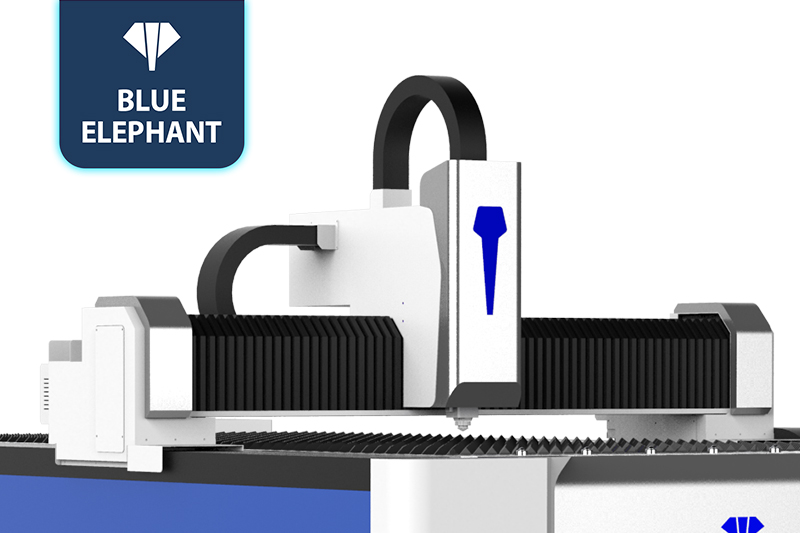

Aviation Aluminum Gantry

High hardness

Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.

High speed

Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.

pro-gantry
pro-raytools

Raytools

Optimized optical configuration and smooth and efficient airflow design;

Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;

A variety of fiber interfaces for adapting to a variety of fiber lasers;

The collimating mirror, focusing mirror and nozzle have a cooling structure.

Parameters

Model ELECNC-1530E ELECNC-1560E ELECNC-2560E
Worktable bearing capacity 800kg 1300kg 2200kg
Working area (mm) 1515*3030mm 1515*6050mm 2520*6050mm
Positioning accuracy ±0.03mm ±0.03mm ±0.03mm
Repositioning accuracy ±0.02mm ±0.02mm ±0.02mm
Max. exchange time 25s 35s 40s
Max. acceleration 1.5G 1.5G 1.5G
Laser power 1kW – 4kW 1kW – 4kW 1kW – 4kW
Laser Multiple options Multiple options Multiple options
Machine bed Sheet welded bed Sheet welded bed Sheet welded bed
Servo motor and driver YASKAWA/FUJI YASKAWA/FUJI YASKAWA/FUJI
Reducer Shimpo Shimpo Shimpo
Relay Schneider Schneider Schneider
Circuit breaker Schneider Schneider Schneider

Application

Suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Laser Cutting Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
