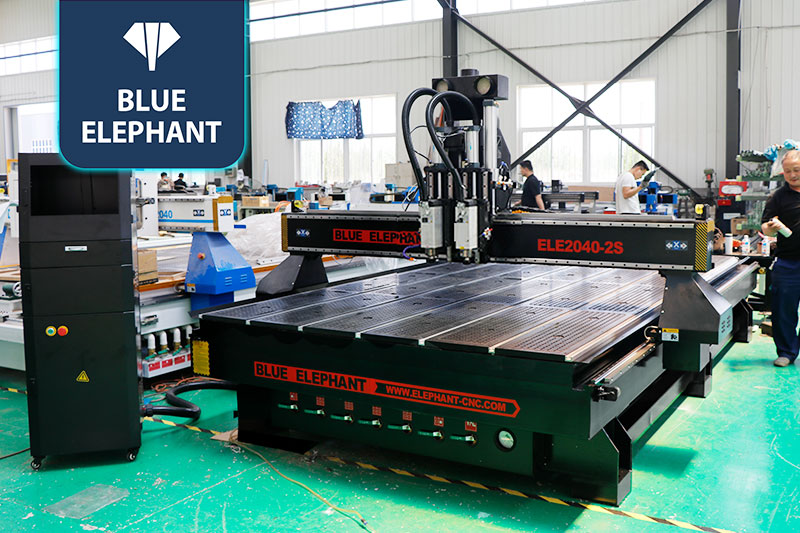

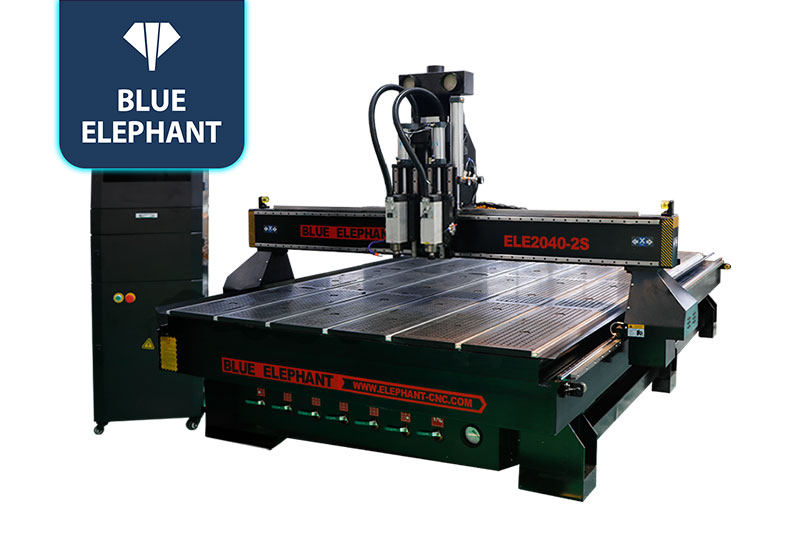

2040 Large Two Processes CNC Router for Sale in Australia

☆It is one of the most popular multi-head CNC router for realizing relief sculpture and 3D engraving. And two spindles can work one by one, which is more convenient to change the tool to engrave or cut wooden furniture.

CNC Router Machines Video

features

  • Adopts new type thicker and bigger heavy duty welded frame and gantry, it can ensure good stability and processing effects.
  • Using the large customized working area of 2000*4000mm, it can better cut and engrave big workpieces.
  •  With two independent 3.5kw HQD air cooling spindles, it can faster realize prodution processing.

Parameters

Description Parameter
Inverter 3.7kw FULING Inverter
X,Y,Z Working Area 2000×4000*200mm
Table Surface T-slot & vacuum working Table
X, Y Structure china #25 linear guide rail,helical rack gear
Z Structure Taiwan TBI Ball Screw
Spindle Power 3.5kw HQD Air Cooling Spindle*2

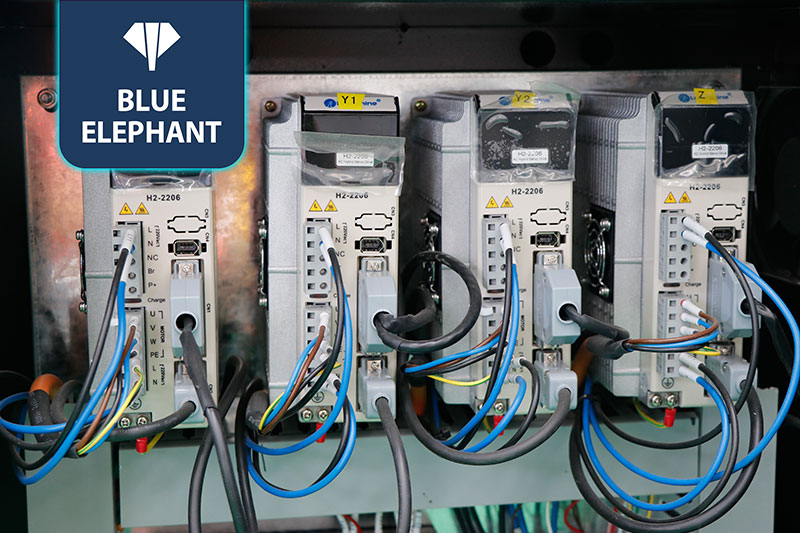

Drive Motors 750W Leadshine Servo Motor&driver
Working Voltage AC220V/50/60Hz,3PH (Option: 380V)
Command Language G Code
Operating System PM95A-3L control system
Collet ER32
X,Y Resolution <0.01mm
Vacuum pump 7.5kw water circulation vacuum pump
Software Compatibility Type3/UcancameV9 Software
Dust Collector 3.0kw Dust Collector*2bags
Running Environment  Temperature 0 – 45 Centigrade

Application

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, couches, stools, benches, beds, desks, night stands, bunks, cupboard, tea boards.
Decoration industry: door frames, handrails, building columns, pillars, table legs, chair legs, photo frames, mirror frames, screens, lights, holiday decorations.
Craft industry: artworks, gifts, souvenirs, clock frames, stamps, badges, medals, trophies, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Mold industry: wood mold, foam mold and metal mold. Musical instrument industry: 3D surface carving, shape cutting, guitar, bass, violin, viola, violoncello, erhu, and other string instrument.
Other: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
