Purchase CNC Panel Saw at Best Cost in Sweden, Russia, US

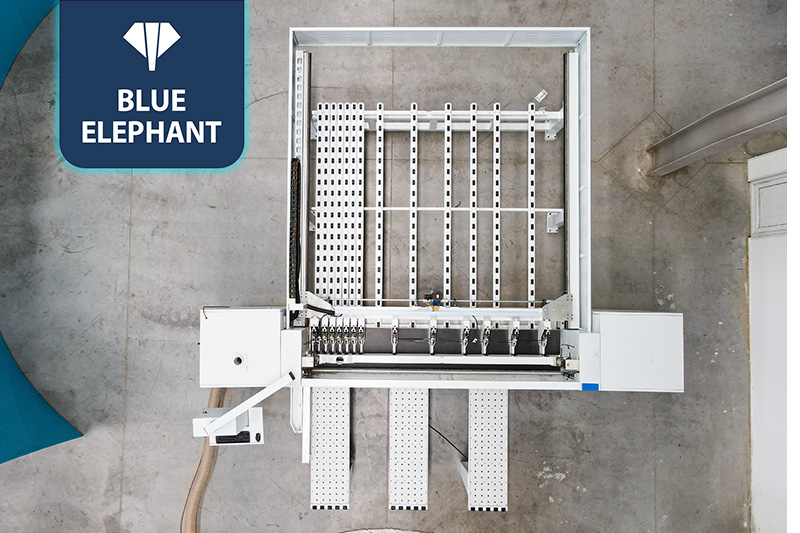

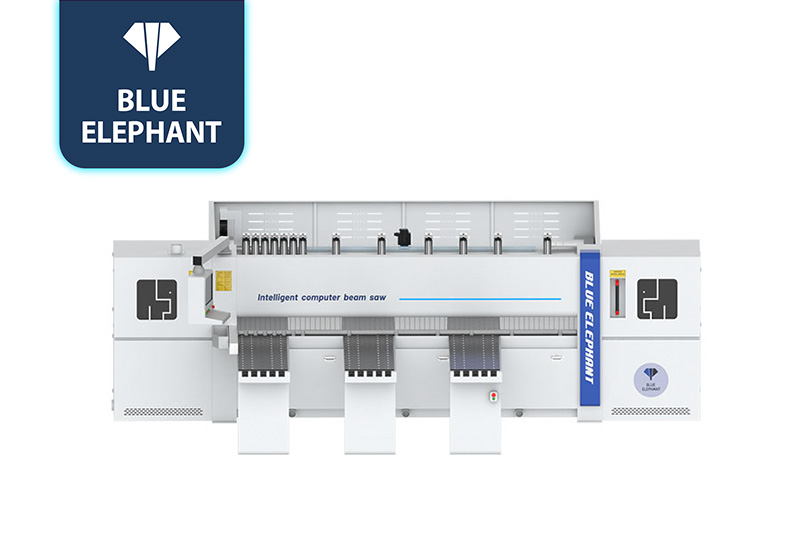

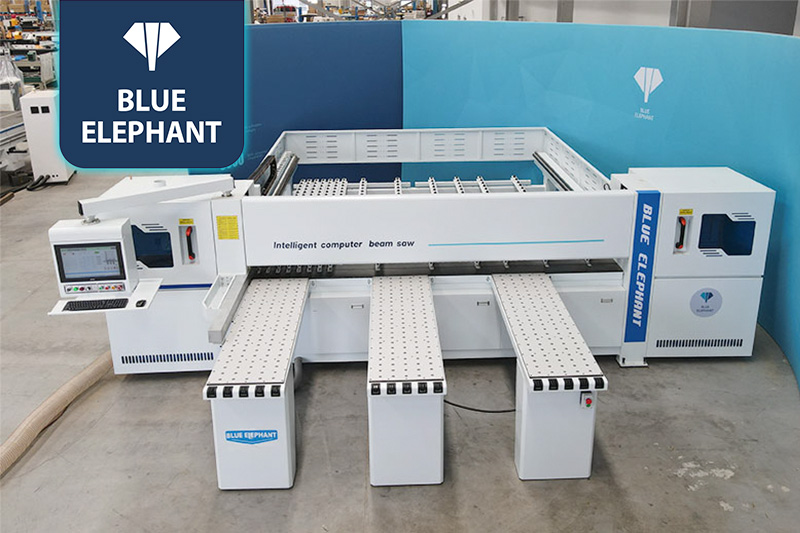

☆This automatic computer beam saw is good at cutting wood panels in panel furniture manufacturing industry. Besides, it has is  easy to operate and without man interface.

Panel Saw Machines Video

Parameters

Model ELECNC-330
Overall dimension 5900x5800x1800mm
Cutting length 3300mm
Cutting thickness 100mm
Main saw blade diameter 350mm
Main saw blade revolving speed 4800rpm
Groove saw blade diameter 180mm
Groove saw blade revolving speed 6900rpm
Forward speed of carriage 100m/min
Backward speed of carriage 150m/min
Main saw motor 15kW
Groove saw motor 2.2kW
Auto feeding motor 2.0kW (AC, servo)
High-press ventilating motor 3kW
Total power 23kW
Auto feeding speed 100m/min
Air pressure 5-7kg/cm2
Platform height 950mm
Control switch Schneider
PLC Fatek
Converter Invt
Screen Jikowi
Contactor Schneider
Pneumatic elements Hengtong
Solenoid valve AirTac
Motor Igarashi
Servo control system Invt
Linear guide rail SLM

Application

Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.

panel-saw-samples-1_1642753240
panel-saw-samples-3_1642753324
panel-saw-samples-4_1642753338
panel-saw-samples-2_1642753303
