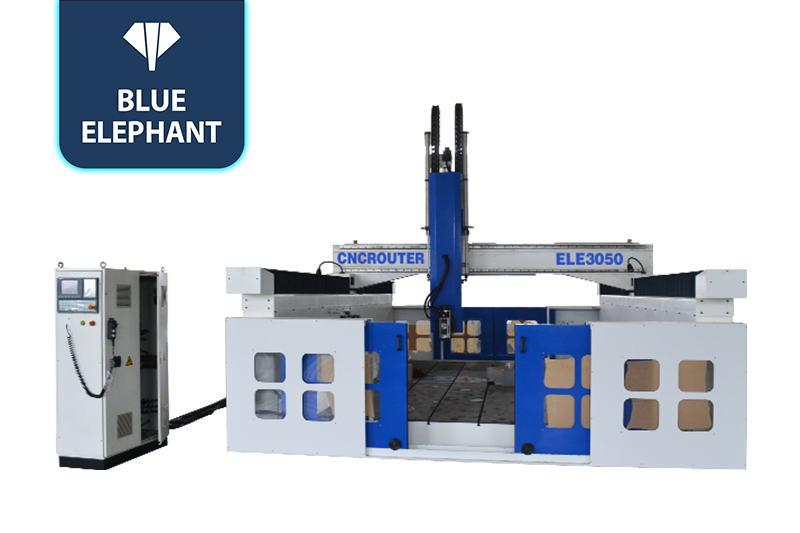

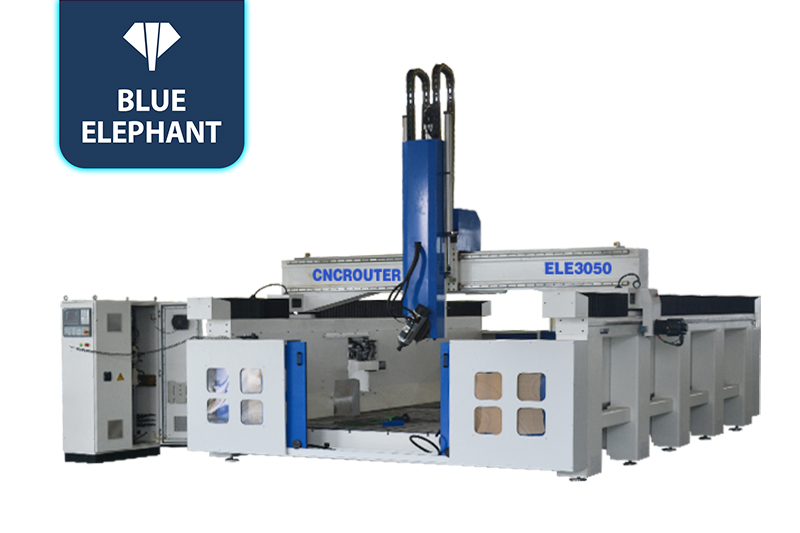

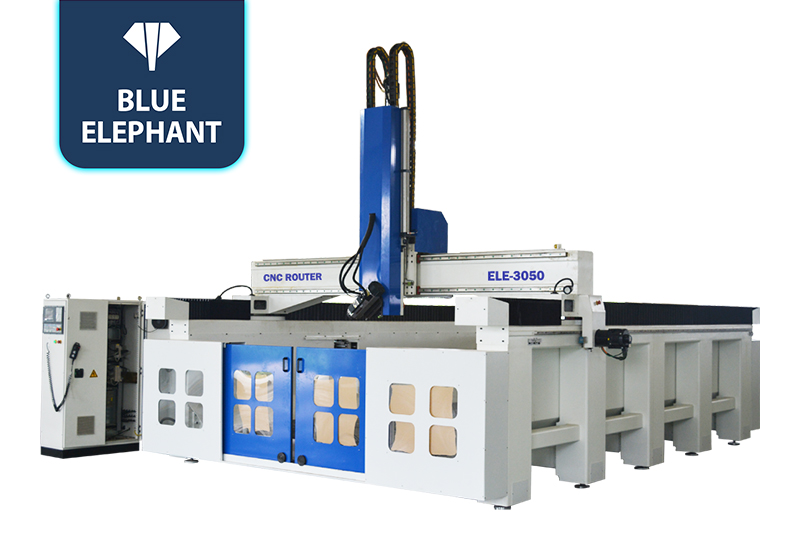

Affordable Large EPS CNC Engraving Machine Price in Malta, Spain

☆The machine uses top-quality four-row imported ball bearing, wide linear lead rail, and self-lubricating block. So it can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.

CNC Router Machines Video

features

  • It has the very large working table of 3000*50000mm.
  • The 4th axis can rotate ±90 degrees to realize 3d engraving.
  • Equipped with many high-end components like Taiwan SYNTEC control system, Taiwan TBI ball screw, Shimpo reducer, etc.

Parameters

Description ELE-3050
Working size 3000*5000*1000mm
The 4th axis ±90°
Transmission X /Y rack and pinion drive              Z Taiwan TBI ball screw
Table structure Cast steel structure
Spindle power Italy 9kw HSD ATC air cooling spindle
Spindle speed 24000rpm
Working speed 20m/min
Motor driver 850w YASKAWA servo,1 kw YASKAWA servo driver
Inverter 11kw Taiwan Delta Inverter
collet BT40
Computer Interface Ethernet
Flash  Memory 256M(with CF card)
Table Surface Milling steel table(T-slot)
Control System Taiwan SYNTEC
PS. All the working size and specifications can be customized according to your requests

Application

Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.
Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials. Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
