The best 3D woodworking 4th Axis CNC Machine with Horizontal Spindle for Sale in the United States, Britain and Bangkok

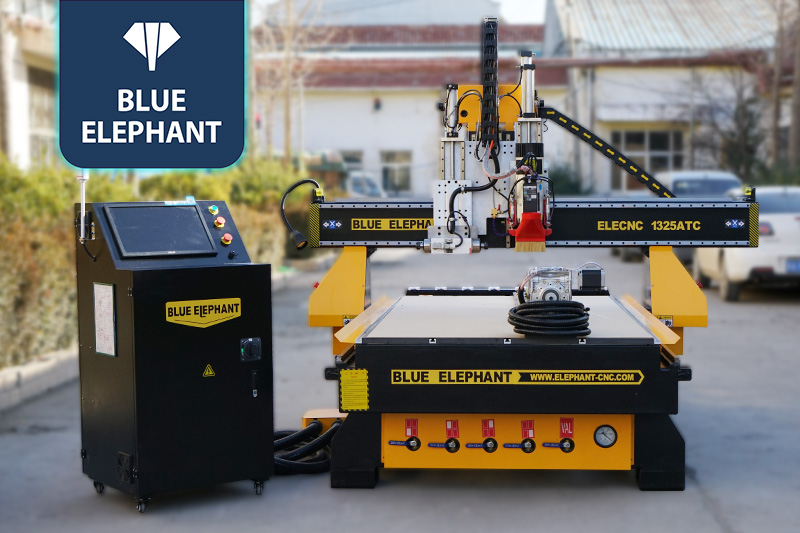

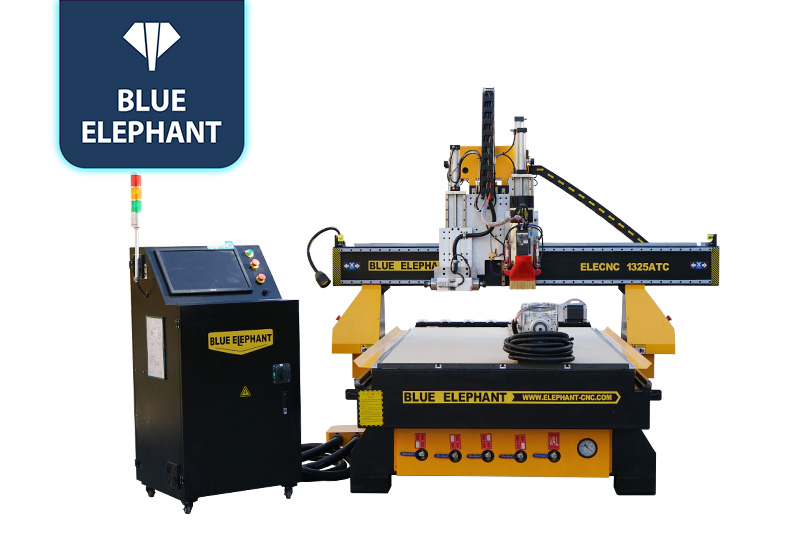

☆This multi-functional CNC router machine is quite popular with the woodworking industry. It can complete cutting, engraving, vertical drilling, horizontal drilling, and 3D carving work automatically and precisely. There is no need for cabinet makers to drill side holes manually which saves much labor and improves work efficiency.
Rotary Axis CNC Router Machines Video

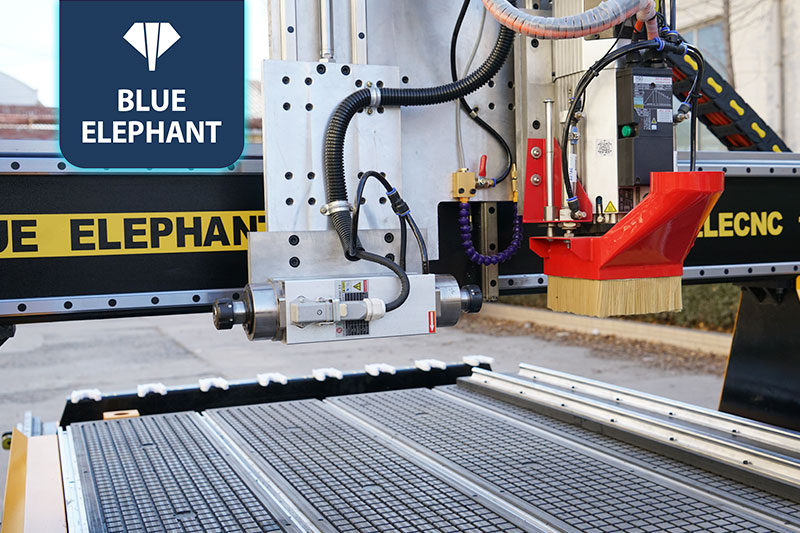

It is equipped with a horizontal shaft with two horizontal tools for slotting and drilling on the left and right sides of a wood panel.
The movable rotary device can be fixed on and removed from the worktable freely, which is suitable for the rotary device with a diameter of less than 200mm.

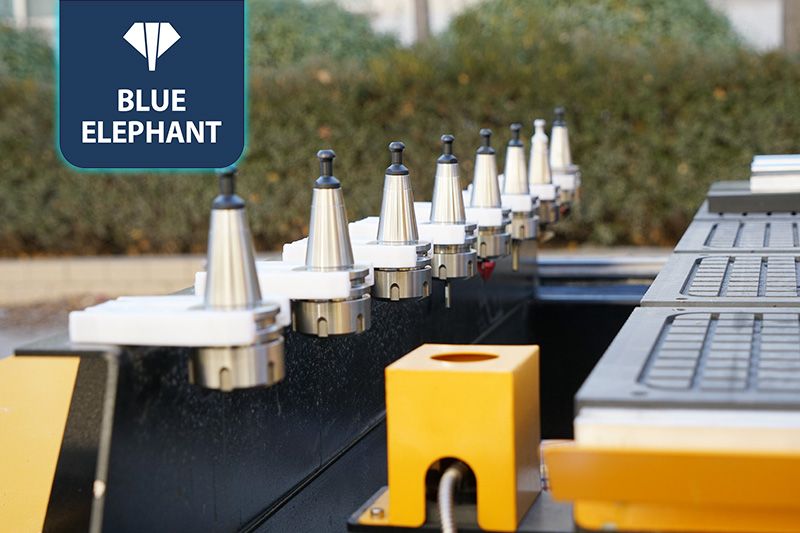

The ATC CNC machine can switch between a large number of tools without manual operation, improving accuracy and efficiency.
Parameters
Description Parameter
X,Y,Z Working Area 1300*2500*300 mm
Control system MW2200 control system with computer screen
Working Voltage 380V, 3phase, 50Hz (Option)
Spindle 9kw HQD air cooling ATC spindle+3.5KW horizontal spindle
Inverter 11kw Fuling inverter
Motor and driver Leadshine 750W servo system
Table Surface Vacuum and T-slot table
Rotary device 200mm diameter rotary device
X,Y axis Taiwan PMI 25# square guide way for X,Y axis
Z axis Taiwan TBI ball screw for Z axis
Vacuum pump 2Kw dry vacuum pump(Double segment)*2
Tool change linear tool change magazine
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
