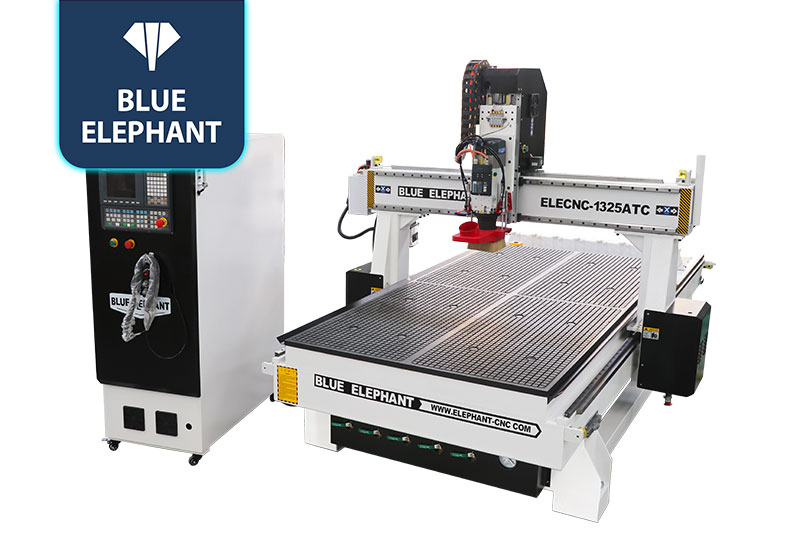

Best ATC CNC Machine 4×8 Wood Router in Australia at Affordable Price

☆As an entry-level ATC CNC router machine, this 4×8 wood router is quite cost-effective to cut, engrave, mill, and drill wooden boards for multiple wood products. It is widely used to process solid wood, softwood, MDF, melamine, PVC, acrylic, composite, aluminum, etc.

Get Details & Prices

ATC CNC Router Machines Video

Get More Videos

Features

It adopts HIWIN linear square guide rails which have large bearing capacity, stable operation, high precision, and long service life.
The 9.6kW imported air-cooled spindle can complete powerful cutting and engraving work with fast speed and high accuracy.
The whole vacuum worktable has a strong adsorption capacity to prevent the panel from sliding or moving.

Parameters

Serial Number	S20190822M
Model	ELECNC-1325
Working area	1300x2500x400mm
Spindle	ATC 9.6KW Italy HSD air cooling spindle
Inverter	Taiwan Delta 11KW inverter

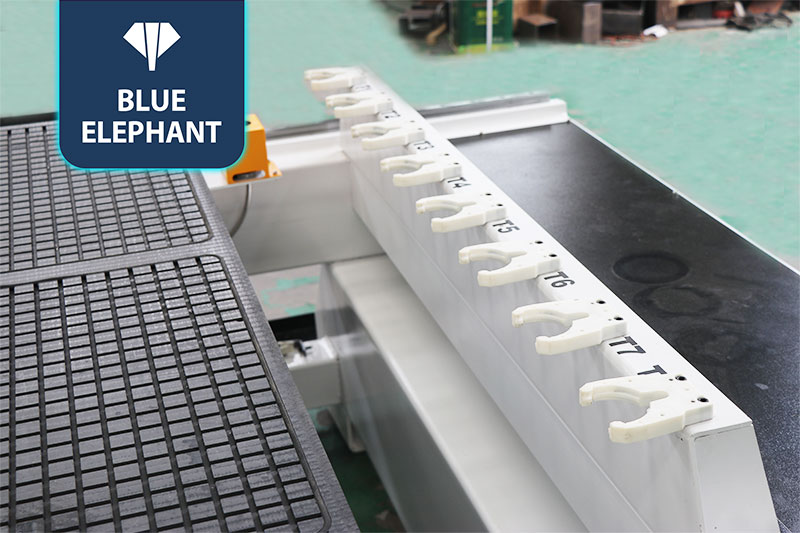

Tool magazine	Linear Automatic tool change with 8 tools
Control system	Taiwan SYNTEC 6MB control system
Motor and driver	4 sets850W Japan Yaskawa servo motor and 1000W servo driver (Z axis with brake )
Lubrication system	New type 1.5L Automatic lubrication system for rails
Cooling system	Auto oil sprayer mist system for soft metal
X,Y,Z Transmission	X, Y-helical rack pinion, Z ball screw
Voltage	380V,3phase, 50HZ(optional)
Dust collector	3kw double bags dust collector
Tool sensor	Automatic tool sensor

Get More Parameters

Application

Woodworking industry: Processing of three-dimensional wave board, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window, and auxiliary processing of shoe polishers, game machine cabinets and panels, mahjong tables, computer tables, and panel furniture.
Advertising industry: Advertising signage, logo making, acrylic cutting, plastic molding, and processing of various advertising materials and decorative products.
Mold industry: It can engrave copper, aluminum, iron, and other metal molds, as well as artificial marble, sand and stone, plastic plates, PVC pipes, wooden boards and other non-metal molds.
Craft gift industry: It can carry out a variety of shadow carvings, reliefs, and is widely used in the crafts industry.
