2040 ATC Rotary Axis CNC Router for Sale to the United Kingdom, the United States and the Philippines at cost

☆This is a high-efficiency CNC woodworking machine with an auto tool changing function and a front rotary device. For the machine with a long Y-axis travel, the front rotary device is a good choice if the processing length is less than or equal to the X-axis travel.

Rotary Axis CNC Router Machines Video

Features

The large working size of 2000x4000mm can process most large-format wooden panel for various panel furniture production.

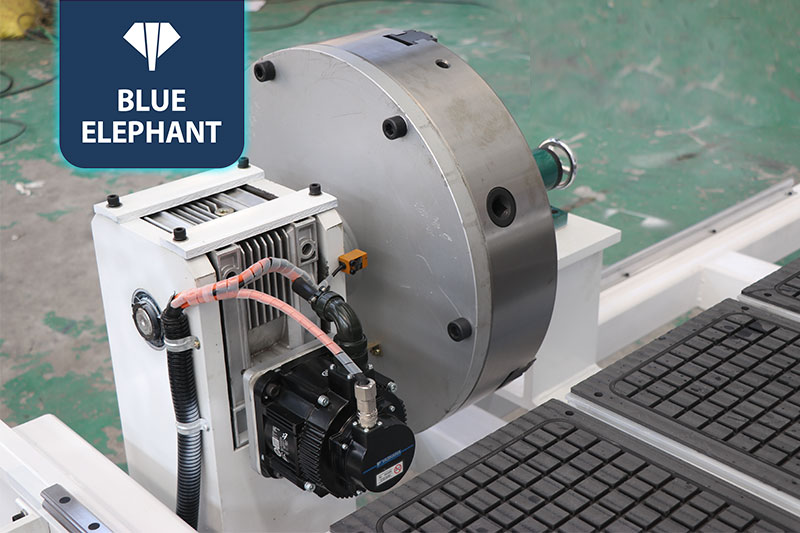

It is equipped with a large diameter rotating device installed in front of the worktable, which is suitable for processing cylindrical parts with a length of less than 2000mm.
Specifications of this CNC router machine can be customized to meet different processing demands.

Parameters

Serial Number S20190930W
Model  ELECNC-2040 ATC
Working area 2000*4000*400mm
Spindle 9.6kw Italy HSD ATC air cooling spindle
Spindle speed  24000RPM
Inverter 11.0kw Taiwan Delta inverter
Tool magazine Linear design 8 positions
Control system Taiwan SYNTEC 6MB control system
Motor and driver 850W YASKAWA servo motors and 1000 drivers
Working Table T-slot & Vacuum working table with six zones
limit switch Japan OMRON limit switch
Lubrication system 1.5L Automatic lubrication system
Voltage 380V, 3phase, 50/60HZ
Vacuum pump 7.5kw water circulation vacuum pump
X,Y,Z Transmission

Taiwan TBI ball screw for Z axis

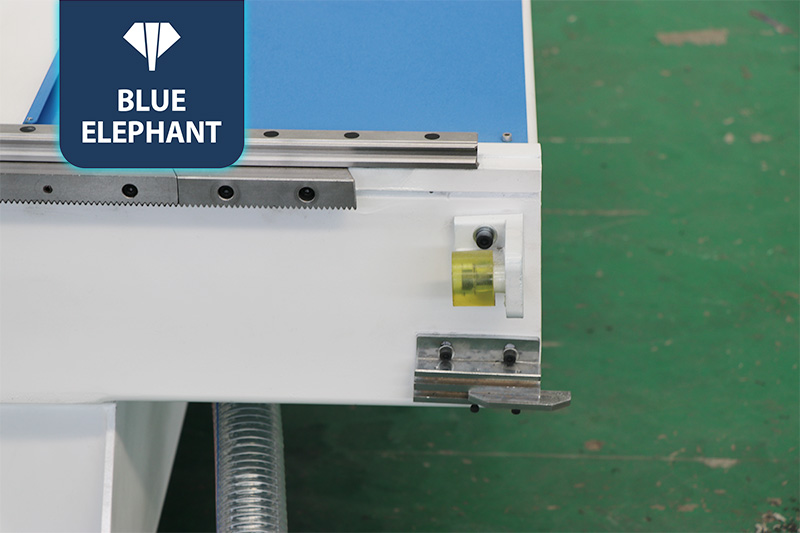

Helical rack gear for X,Y axis

X,Y,Z Rail 25mm Taiwan PMI/ Sweden ABBA Linear guide
Frame structure Heavy duty bed more thicker
Cables Shanghai Cardiff cables
Dust collector 1.5kw new design double bags dust collector
Tool sensor Auto tool sensor calibration
Software Compatibility Artcam software

Application

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
