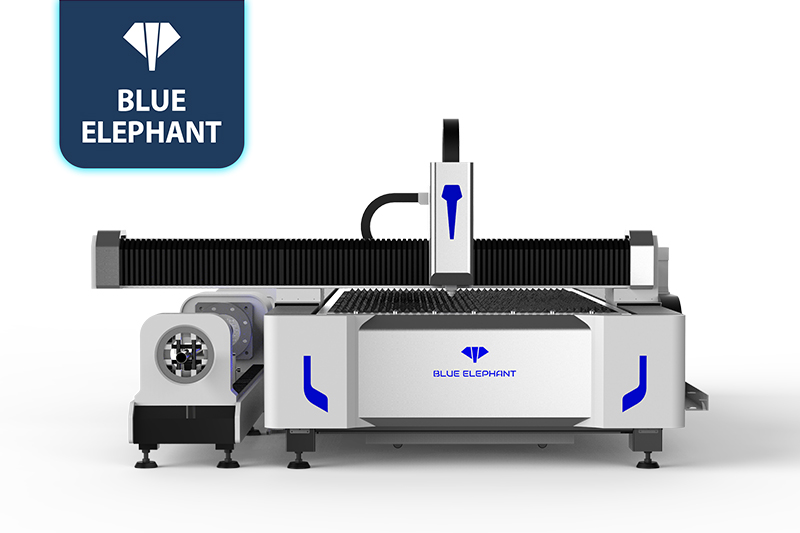

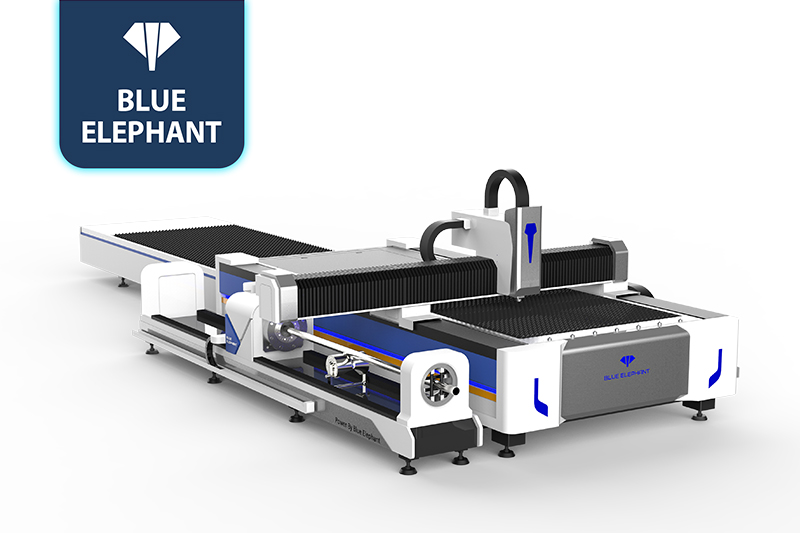

Best Sheet and Tube Metal Laser Cutter with Exchange Platform

☆Exchange table sheet and tube fiber laser cutting machine can realize the cutting of two different materials at the same time, which saves more than 50% of space and cost.

Laser CNC Machines Video

Features

  • High-rigidity heavy chassis reduces the vibration generated during high-speed cutting.
  • Using an upper and lower exchange platform, it can complet processing within 15 seconds.
  • It is a good choice for users who want to have economical plate or pipe processing.
pro-bed

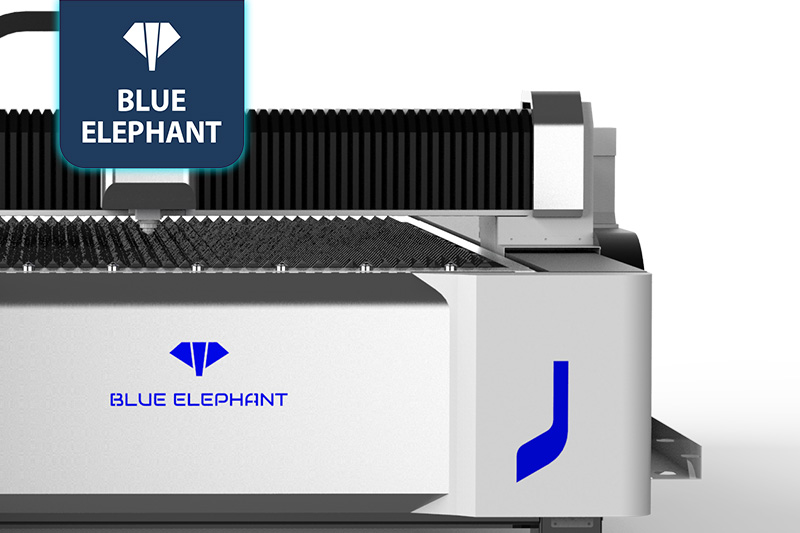

The Tube Welded Bed

High strength, not easily deformed

Heavy duty design ensures that the bed will not be deformed for many years, it is more stronger and has a high tensile.

More stable

We choose rectangular tubes with thicker wall than common machines. It is well welded, and make the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.

Aviation Aluminum Gantry

High hardness

Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.

High speed

Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.

pro-gantry
pro-raytools

Raytools

Optimized optical configuration and smooth and efficient airflow design;

Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;

A variety of fiber interfaces for adapting to a variety of fiber lasers;

The collimating mirror, focusing mirror and nozzle have a cooling structure.

Parameters

Model ELECNC-1530ET ELECNC-1545ET ELECNC-2040ET
Working area (mm) 1515*3030 1515*4545 2020*4050
Worktable bearing capacity 800kg 1100kg 1300kg
Max. acceleration 1.5G 1.5G 1.5G
Positioning accuracy ±0.03mm ±0.03mm ±0.03mm
Repositioning accuracy ±0.02mm ±0.02mm ±0.02mm
Pipe section shape Round/square/rectangular Round/square/rectangular Round/square/rectangular
Max. length of pipe 3m/6m 3m/6m 3m/6m
Laser power 1kW – 4kW 1kW – 4kW 1kW – 4kW
Laser Multiple options Multiple options Multiple options
Servo motor and driver YASKAWA/FUJI YASKAWA/FUJI YASKAWA/FUJI
Reducer Shimpo Shimpo Shimpo
Lubrication Auto lubrication Auto lubrication Auto lubrication

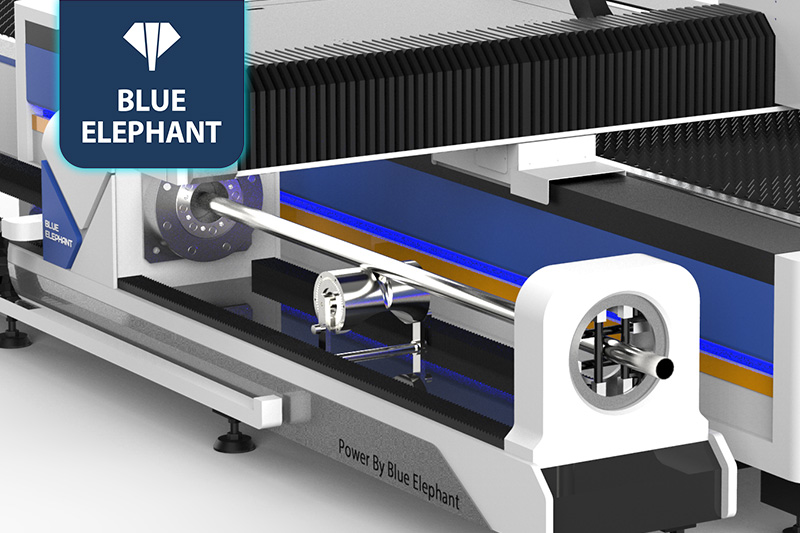

Chuck Double pneumatic chucks Double pneumatic chucks Double pneumatic chucks

Application

Suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Laser Cutting Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
