Affordable Sheet and Tube Metal Laser Cutting Machine for Sale

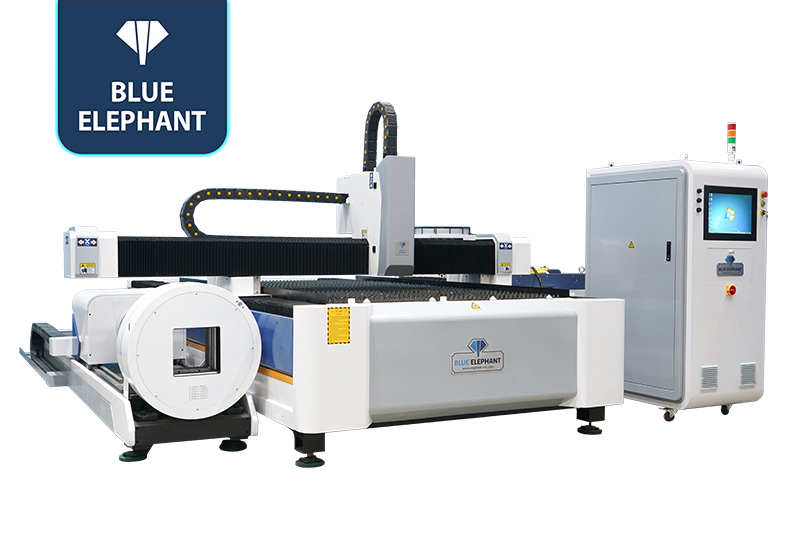

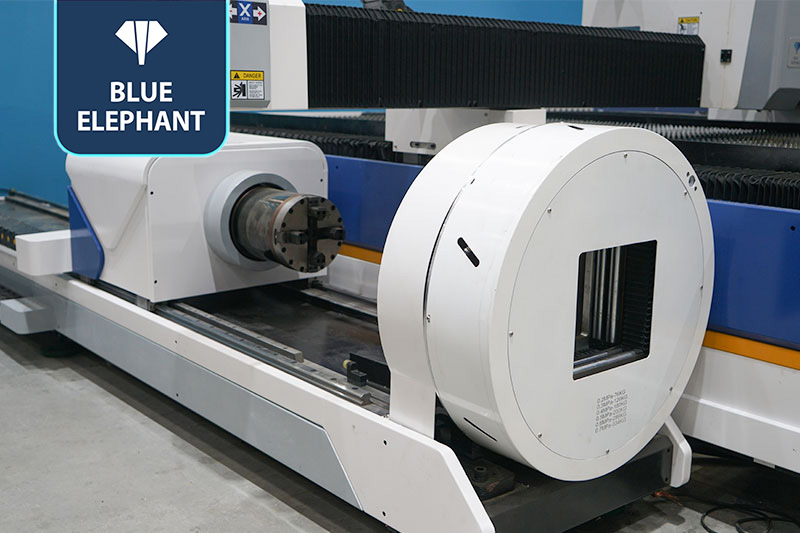

☆This is a dual-use fiber laser cutting machine that can cut both metal sheets and metal tubes.Besides, the two worktables can realize automatic exchanging to increase the working efficiency by 50%.
Laser CNC Machines Video
Features
- The staggered blade worktable can hold the metal sheet steadily.
- Aircraft-grade aluminum has the features of corrosion resistant, light weight, and high hardness, guaranteeing high speed laser cutting and excellent cutting precision.
- The dust removal system can remove all the smoke generated from the cutting process, which protects the operator’s health and the working environment.
The Tube Welded Bed
High strength, not easily deformed
Heavy duty design ensures that the bed will not be deformed for many years, it is more stronger and has a high tensile.
More stable
We choose rectangular tubes with thicker wall than common machines. It is well welded, and make the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.
Aviation Aluminum Gantry
High hardness
Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
High speed
Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.
Raytools
Optimized optical configuration and smooth and efficient airflow design;
Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;
A variety of fiber interfaces for adapting to a variety of fiber lasers;
The collimating mirror, focusing mirror and nozzle have a cooling structure.
Parameters
| Model | ELECNC-1325FL | ELECNC-1530FL |
| Working area | 1310*2520mm | 1515*3030mm |
| Positioning accuracy | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.2G | 1.2G |
| Laser power | 1kW, 2kW | 1kW, 2kW |
| Laser | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual |
| Max. running speed | 100m/min | 100m/min |
Application
The laser metal cutting machine is widely used to cut various metal sheet products in the advertising, craft, decoration, and other industries. It is suitable for cutting carbon steel, stainless steel, aluminum, brass, and copper parts, signs, crafts, logos, letters, etc.
Production Facility
Quality Control & Testing
