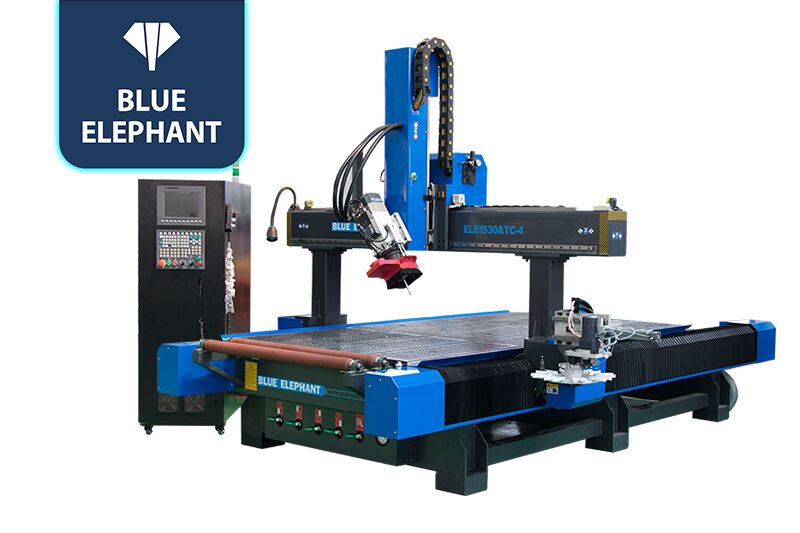

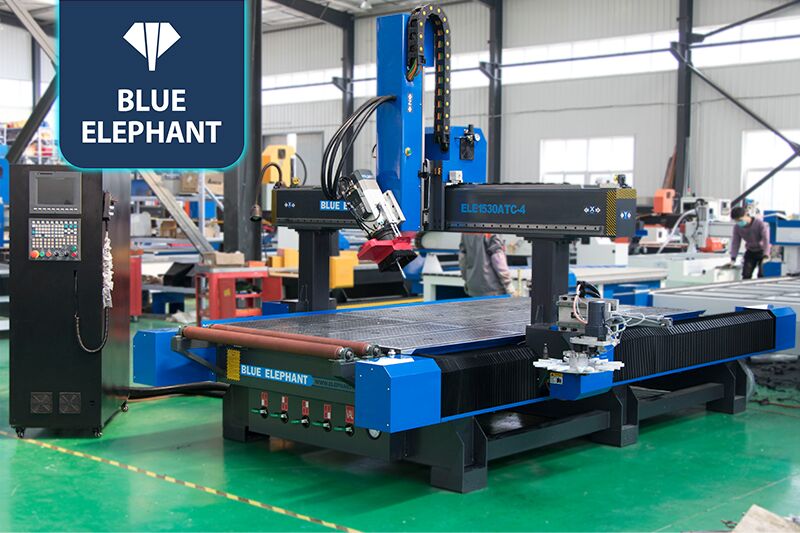

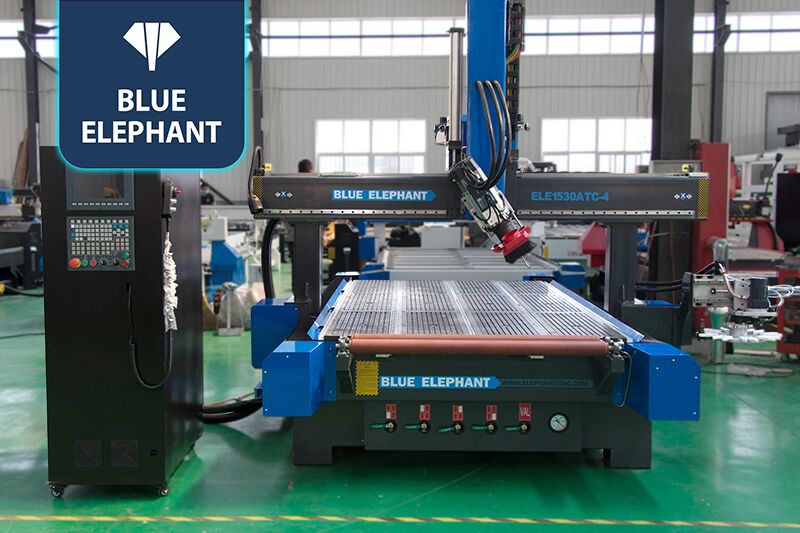

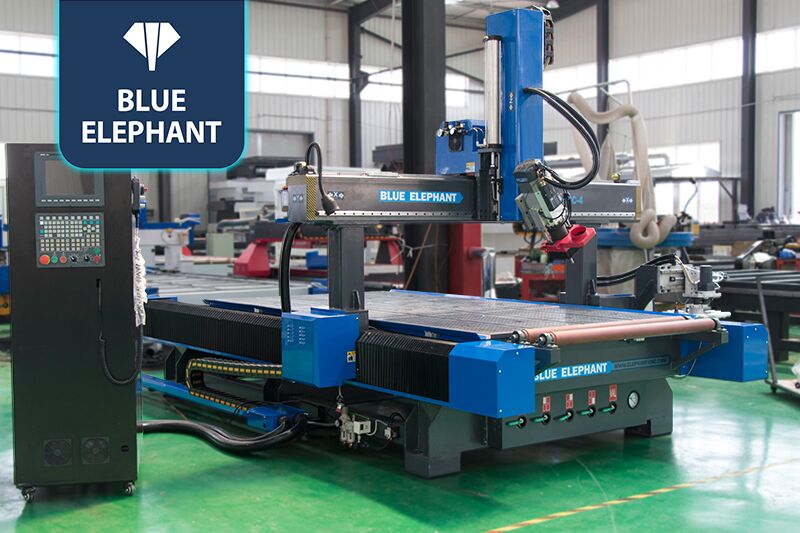

Hot Sale Automatic Tool Change 4 Axis CNC Wood Router for Sale to Nigeria,UK

☆Equipped with a carousel tool magazine, this 4 axis CNC wood router machine can not only process 3D parts but also complete various complex designs on the workpieces. Specifications of this machine can be customized based on your requirements.

4 Axis CNC Router Machines Video

Features

  • The 4 axis CNC router with a swing spindle can process the top, left, and right sides of a workpiece in one operation, reducing clamping times.
  • It is equipped with two press rollers to help fix and press the wooden board during operation, avoiding moving and sliding.
  • The guide rails and racks along the Y axis are protected by a dust cover to prevent wood chips from accumulating in the rails.

Parameters

Description Parameter
Model ELE1530ATC-4
Tool magazine Round or Carrousel type auto tool changer with 12 tools storage
X, Y, Z Working Area 1500x3000x400mm
Table Size 1500×3000mm
Table Surface Vacuum and T-slot working table, 6 zones;

2 pieces of rollers in the front of the table

Structure Industrial class square tube strong structure, heavy-duty 8-10mm
X, Y Structure Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail;

Dust cover for Y-axis

Z Structure Sweden ABBA #30 Linear Square Rail and TBI Ball Screw
Spindle Rotary spindle, 9kw Italy HSD ATC air cooling spindle, Swing -90°to +90°

ISO30 tool holder

Spindle Speed 0-24000RPM
Drive Motors 850wJapan YASKAWA servo motors and 1kw drivers
Inverter 11kw Taiwan DELTA inverter
Working Voltage 220v, 3phase, 60HZ (or customized)
Command Language G Code
Operating System Taiwan SYNTEC 21MA 4 axis control System with handle
Computer Interface USB
Collet ISO30
Software UG
Running Environment  Temperature 0 – 45 Centigrade
Relative Humidity 30% – 75%
Lubrication system Automatic lubrication system
Tool sensor Automatic tool sensor calibration
Position cylinder Auto Position cylinder
Optional Japan Shimpo reducer;

4kw vacuum pump;

Automatic oil sprayer cooling system;

new type 1.5kw double pocket dust collector;

Application

The 4 axis ATC CNC router here refers to the ATC CNC router with a rotating spindle, which can swing 180° from left to right. The working path of the 4 axis ATC CNC router includes X, Y, Z and A axis. So it is also suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
