Cost Effective Single Head CNC Drilling Machine for Sale in Slovakia, India

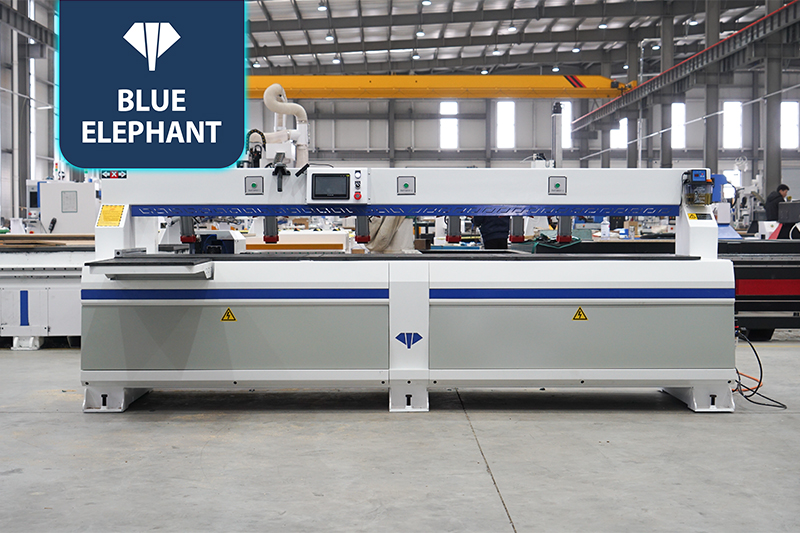

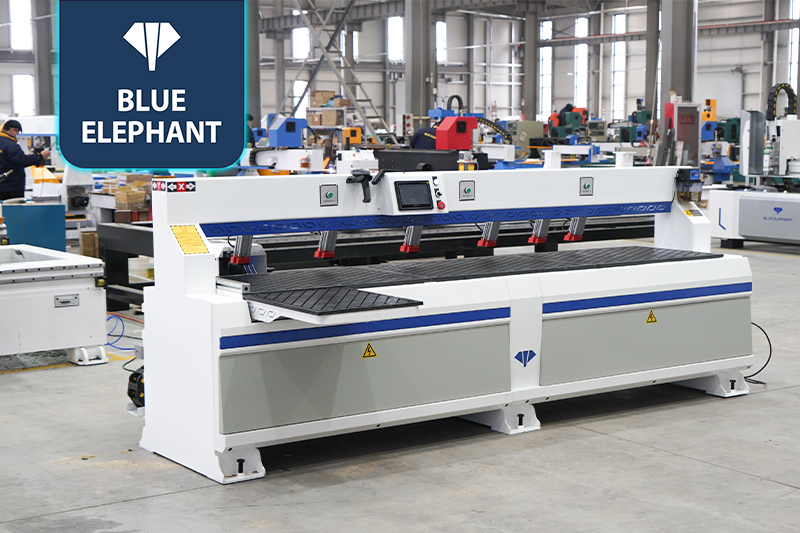

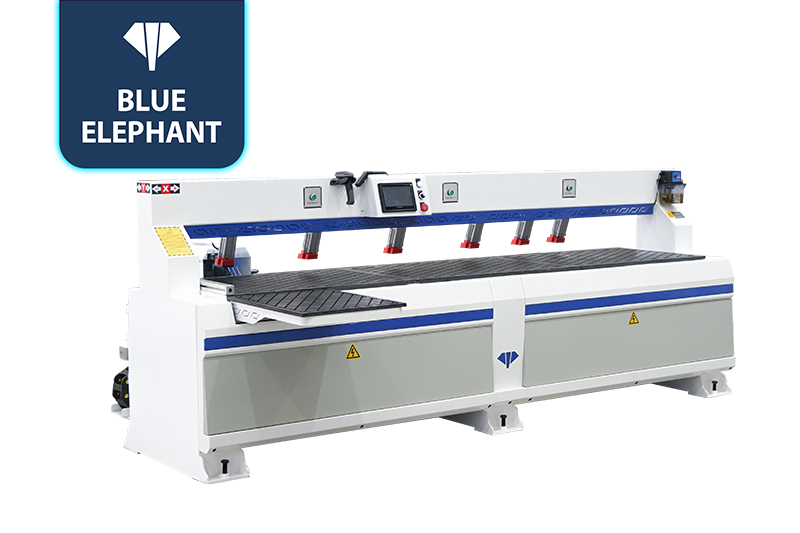

☆This is an entry-level CNC side drilling machine for drilling side holes, dowel holes, blind holes, and making slots on the sides of wooden panels in the furniture production. It is a high cost-performance ratio and can meet the drilling demands of small cabinet making businesses.

Wood Drilling Machines Video

Features

  • The custom limits provide safety protection for the processing.
  • It uses laser scanning to accurately locate and intelligently determine the punching position.
  • It is very cost-effective for small cabinet-making manufacturers.

Parameters

Model ELE100

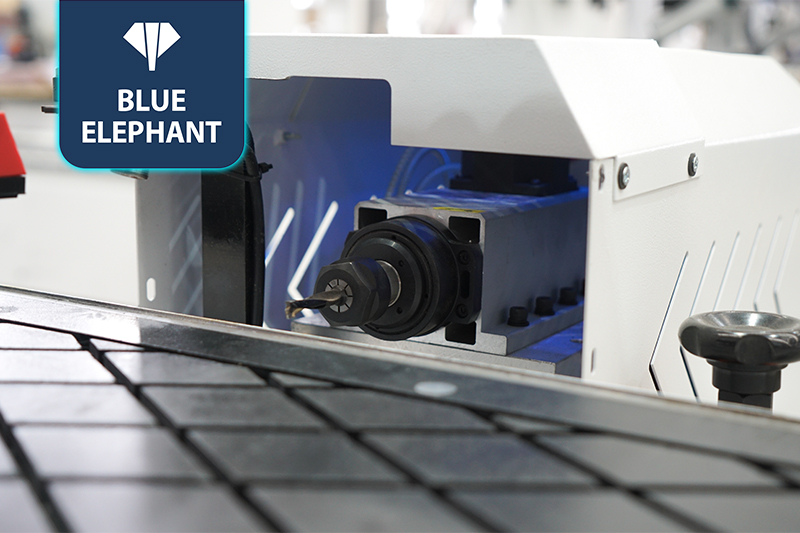

Spindle 2.2kw Changsheng air cooling spindle
Spindle speed 0-18000RPM/MIN
Traveling speed 10-120 m/min
Working speed 10-80 m/min
Effective travel of table 2800 mm
Height of table 750 mm
Drive and motor servo motor and drive
Sensor BANNER
Controller QIYUE
Guild #20 square rail
Rack Taiwan JUELI
Screw TBI
Electrical elements Schneider Electric
Whole size 3300*1250*1300mm
Whole weight 1100kg

Application

Side drilling machines are mainly used to drill side holes or make slots or grooves on side surface of wooden panels. It is designed with simple structure and easy operation. We provide three major side drilling machine models for now. The major difference between them is the number of drill bits or saw blade that they have. All three models of side hole drilling machine have three work stations, which enables to process three panels at the same time. It greatly improves the side drilling efficiency.

side-drilling-machine-samples-1_1642986355
side-drilling-machine-samples-2_1642986379
side-drilling-machine-samples-3_1642986394
side-drilling-machine-samples-4_1642986409
