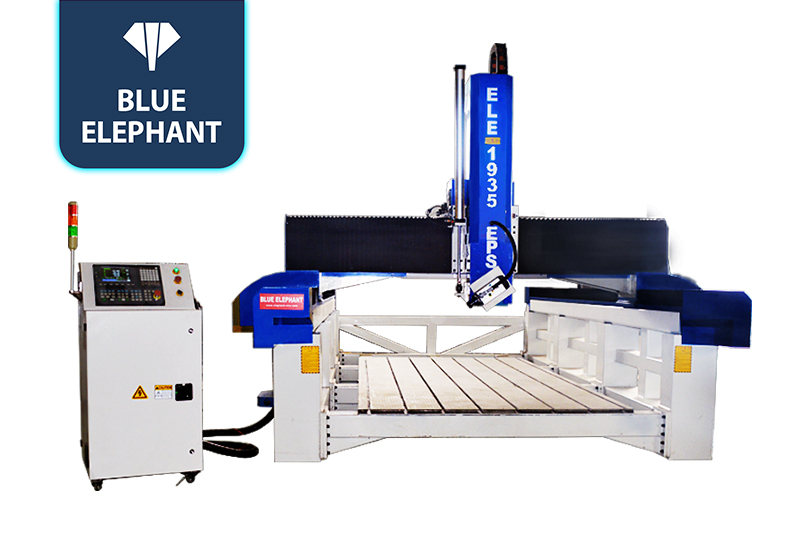

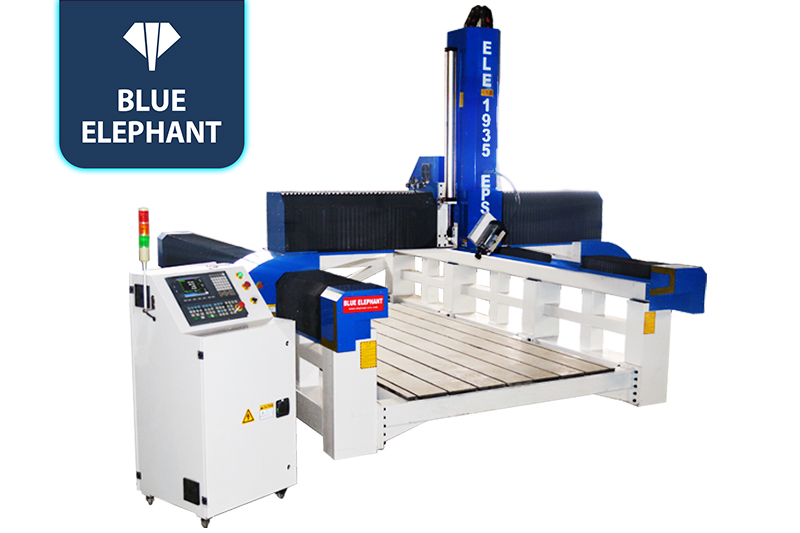

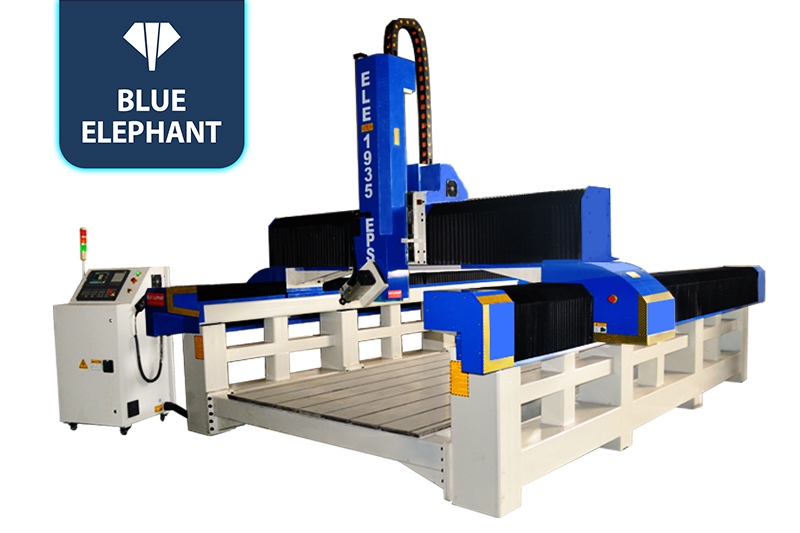

EPS Styrofoam 4 axis C and C Router in Colombia, America for Sale
☆It was designed with a linear tool change magazine.Therefore, various kinds of tools can be changed automatically during the engraving process, which can save a lot of time.
CNC Router Machines Video
features

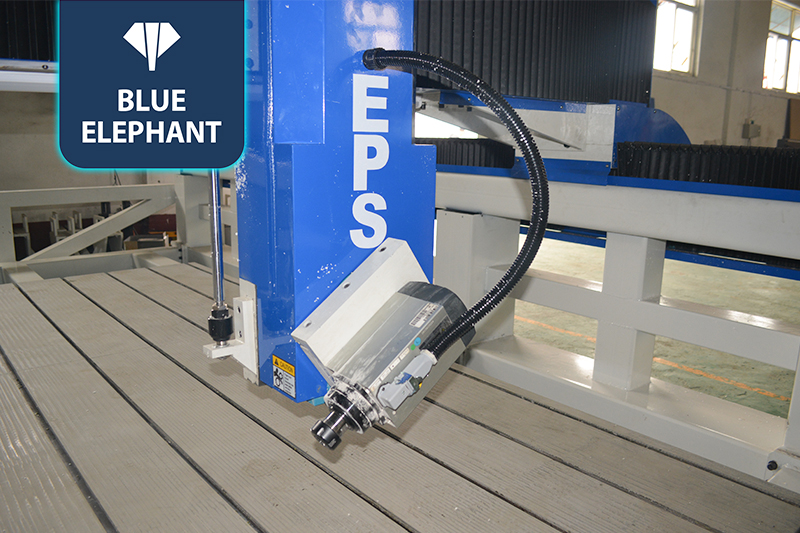

- The spindle can swing 180 degree to make 3D processing.
- It has high Z axis, and the whole working size also can be customized.
- Designed with a linear tool change magazine, it will greatly improve working efficiency.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 1900x3500x800 mm*±100° |
| Effective working area | 2860x3500x1450 mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| X,Y,Z Repositioning Accuracy: | ±0.01mm |
| Table Surface | T-slot Table |
| Frame | Divided structure bed structure,Fixing with screws |
| X,Y Structure | Helical rack gear , 4pcs HIWIN #35 Linear guide |
| Z Structure | TBI ball screw,4 pcs slider |
| Max. Power Consumption | (Without Spindle)6Kw |
| Max. Rapid Travel Rate | 40000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | HSD spindle 4.5kw |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Japan 850W YASKAWA servo |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| Command Language | G Code |
| Operating System | SYNTEC Control System 6MB |
| Computer Interface | USB |
| Flash Memory | 512M |
| Collet | ER30 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | UG , Power mill |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
Application
Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.
Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials. Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.
