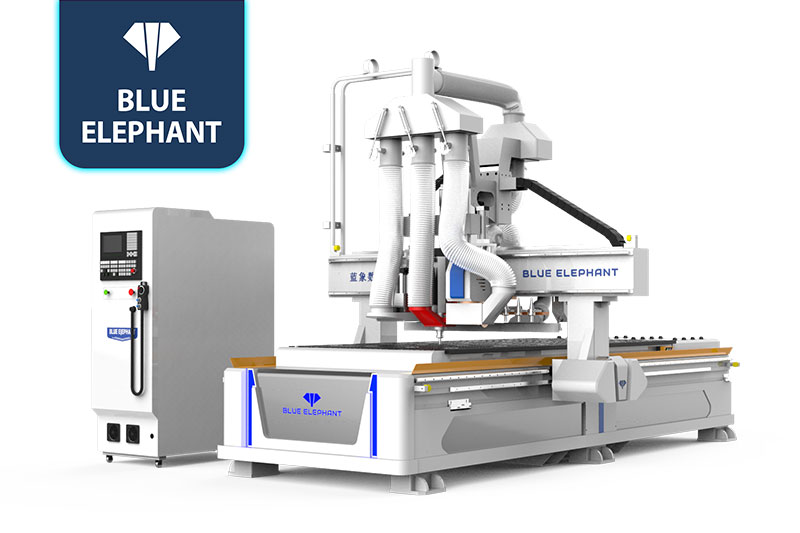

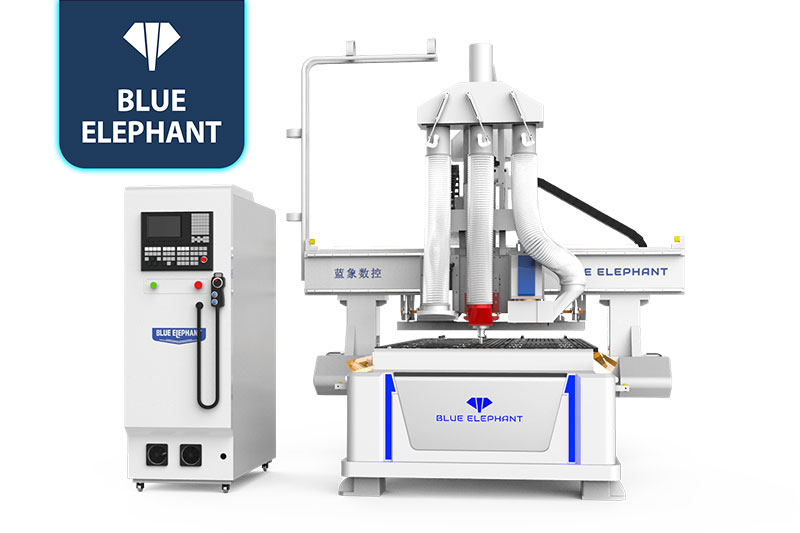

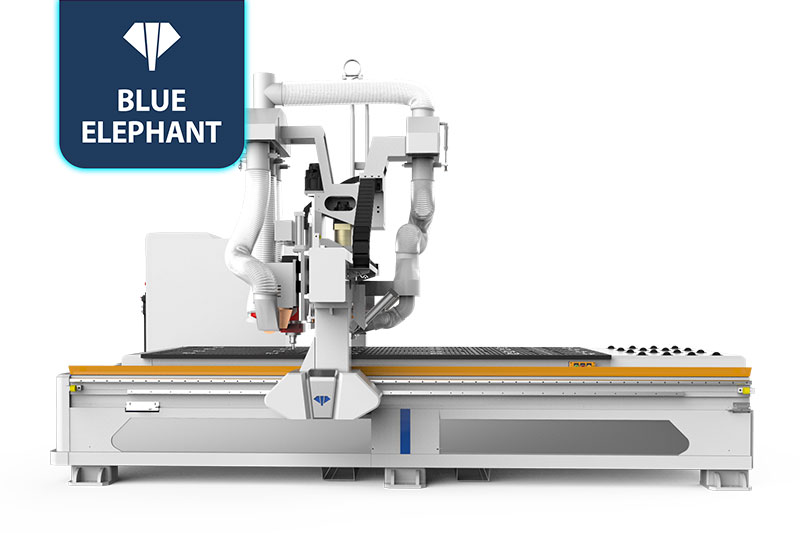

Best CNC Nesting Machine Wood CNC Machine with Drill Bank to Purchase

☆This is the best CNC router machine for cabinet making factories as it can achieve multiple functions, such as cutting, engraving, drilling, and making slots for invisible connectors with one machine. Three spindles can be switched freely to meet different processing needs.

Features

  • It is provided with three spindles to meet customers’ demands for cutting, drilling, and making lots for Lamello parts.

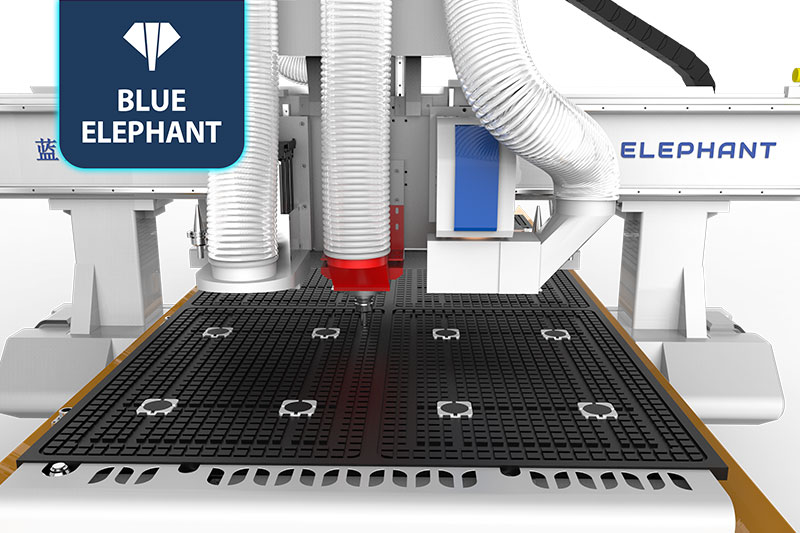

  • The T-slot and vacuum worktable can fix the wooden panels firmly on the worktable, avoiding sliding and moving during the cutting process.
  • Optional automatic loading and unloading platforms can be selected to improve work efficiency.

Parameters

Product Name Nesting CNC router
Color White
Voltage 380V/50HZ
Control system LNC 2200
Spindle 9kw HQD air cooling ATC spindle with special saw blade spindle for Lamello
Invert Hpmont Invert
Motor and Driver Leadshine 1300W servo motor + NEWGEAR reducer
Frame structure New type Square tube
Reducer NEWGEAR Reducer1:5
Working Table T-slot &vacuum working table(6 zone)
Lubrication system Automatic lubrication
Positioning cylinder Y3+X2
Tool sensor Auto tool
Chassis Rittal

Application

Wood furniture industry: Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

atc-cnc-router-sample126_1643074727
atc-cnc-router-sample22_1641781803
3-axis-cnc-router-sample-46
atc-cnc-router-sample137

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
