Most Popular Wood CNC Machine Vacuum Press Machine Price in Costa Rica, Ecuador, Rwanda at Cost Price

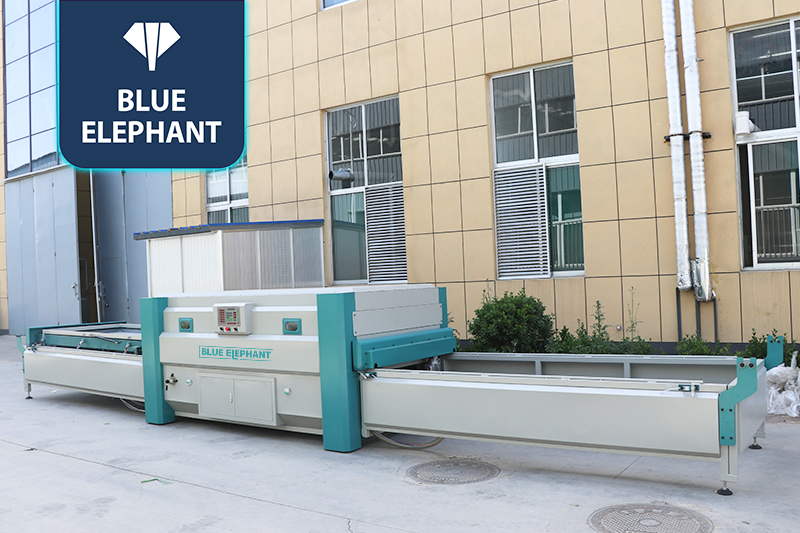

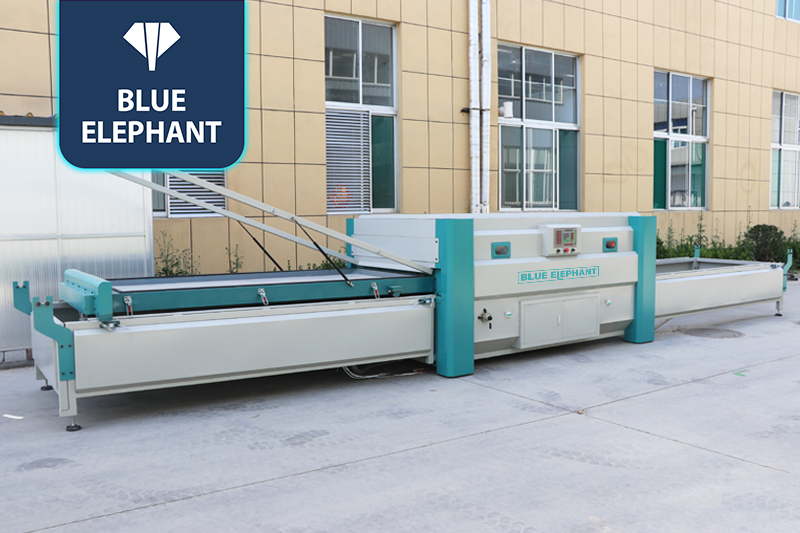

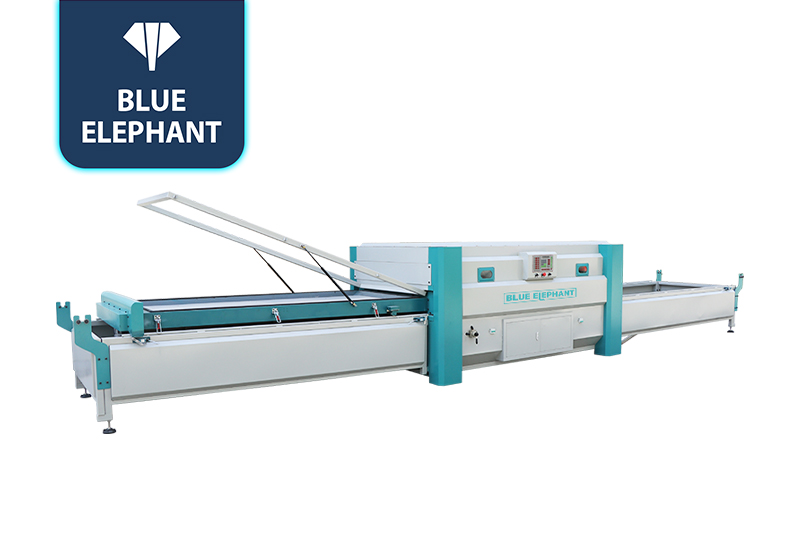

☆ The vacuum press machine is used to apply PVC or other veneers or films on the wooden panels under thermal and vacuum conditions. It is quite popular in the production of thermofoil doors, cabinet doors, high gloss doors, etc.
Vacuum Press Machines Video
- Two worktables can realize automatic loading and unloading of wooden panels, preventing operators from getting burnt and saving human labor.
- The machine adopts an intelligent digital heating system with enhanced heat preservation materials on six sides and good sealing performance, saving energy and electricity.
- A strong and rigid machine structure is resistant to high temperature and corrosion.
Parameters
| Items | Parameter |
| Model | ELECNC-A4L |
| Working desk size | 2550*1300mm/2550*1150mm |
| Whole machine size | 9700*1780*1400mm |
| Maxium processing height | 60mm |
| Fixed work stress | >=-0.095Mpa |
| Total power | 21-30kw |
| Actual power consumption | 6-8kw |
| Total weight | 1.6T |
| Maxium temperature | 185° |
