4th Axis CNC router for cylinder engraving is the best seller in the United States, India and Canada

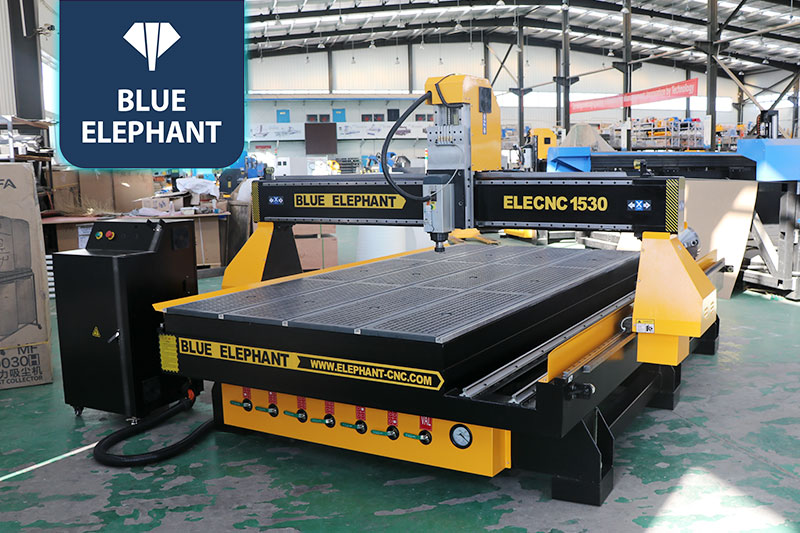

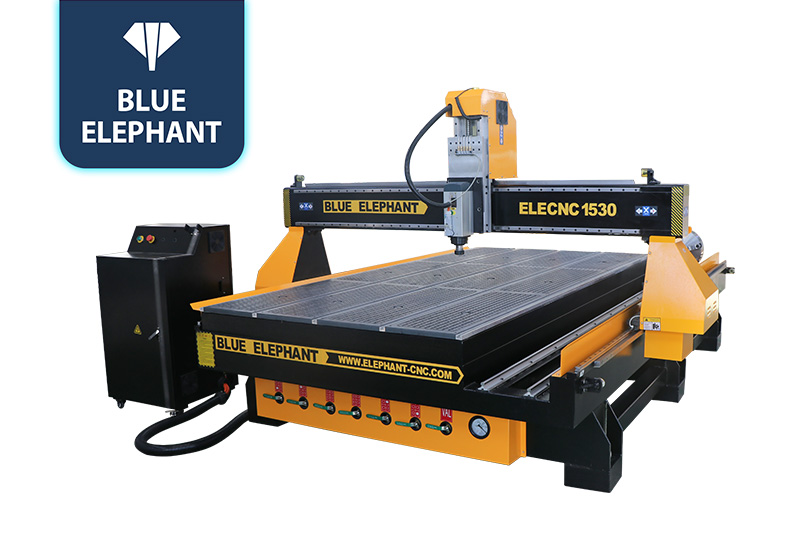

☆This is one of the best-selling rotary axis CNC routers with a working size of 1500x3000mm and a rotary device. It has multiple functions to process both 2D and 3D workpieces. It is relatively cost-effective because it adopts a manual tool changing method, saving much cost than an ATC one.
Rotary Axis CNC Router Machines Video
Features
Equipped with a 6kW air-cooled spindle, this CNC machine can complete powerful cutting and engraving work with fast speed and high accuracy.
The DSP control system is easy to learn for beginners and flexible to use .
All parts and components of this CNC router machine adopt famous-brand or high-quality products to ensure long service life and safe and reliable operation.
Parameters
Serial Number S20191126L
Model ELECNC-1530
Working area 1500*3000*300mm
Spindle 6kw Italy HSD air cooling spindle
Inverter 7.5kw Taiwan Delta inverter
Control system DSP B18 control system
Motor and driver 750w Japan Yaskawa servo motor and driver
Working Table T-slot & vacuum working table
Voltage 380v, 3ph, 50hz
Vacuum pump 7.5kw water circulation vacuum pump
X,Y,Z Transmission
Helical rack gears transmission on X,Y axis
Taiwan TBI ball screw transmission on Z axis
X,Y,Z Rail Taiwan linear guide rails for X,Y,Z axis
Dust collector 1.5kw new type double bag dust collector
Software Compatibility Artcam software
Application

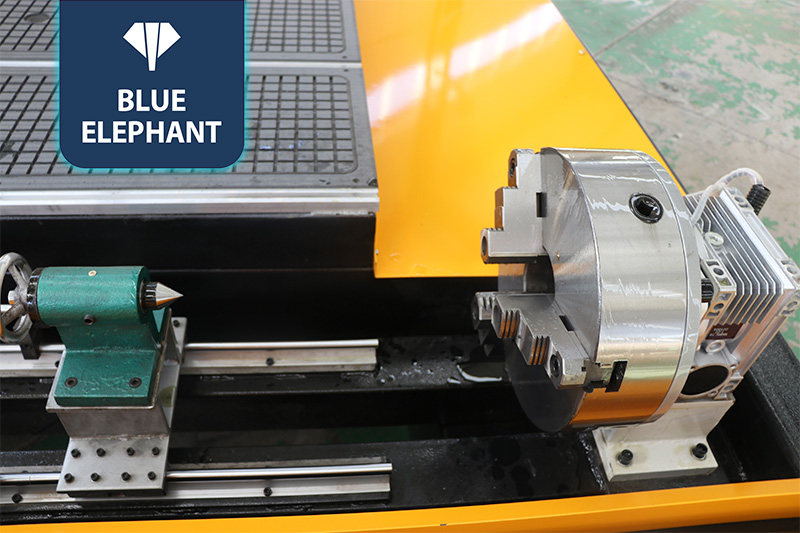

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
