The best customized Rotary Axis CNC Machine for Sale at affordable prices in Kenya, India and Canada

☆This rotary axis is provided with a high Z-axis travel of 400mm and a large diameter rotary device. So it can carve and engrave cylindrical workpieces with a large diameter. Besides, it can also cut panels and engrave various patterns on panels with fast speed and high accuracy.

Get Details & Prices

Rotary Axis CNC Router Machines Video

Get More Videos

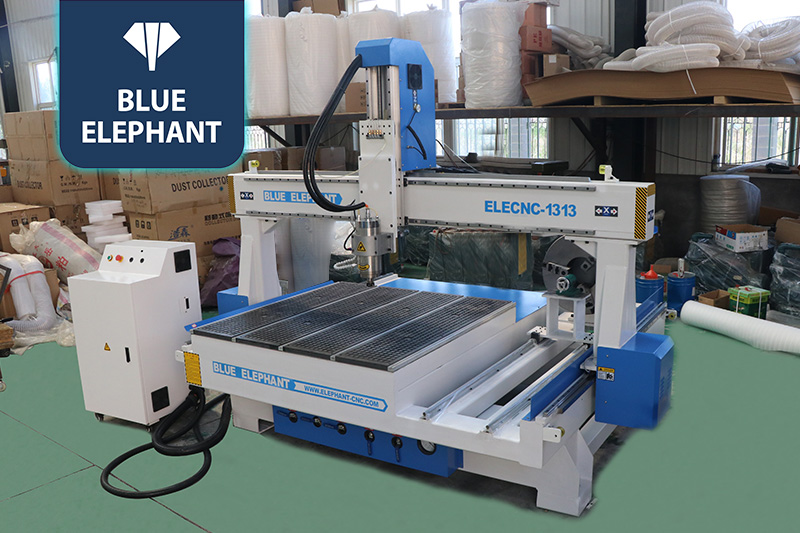

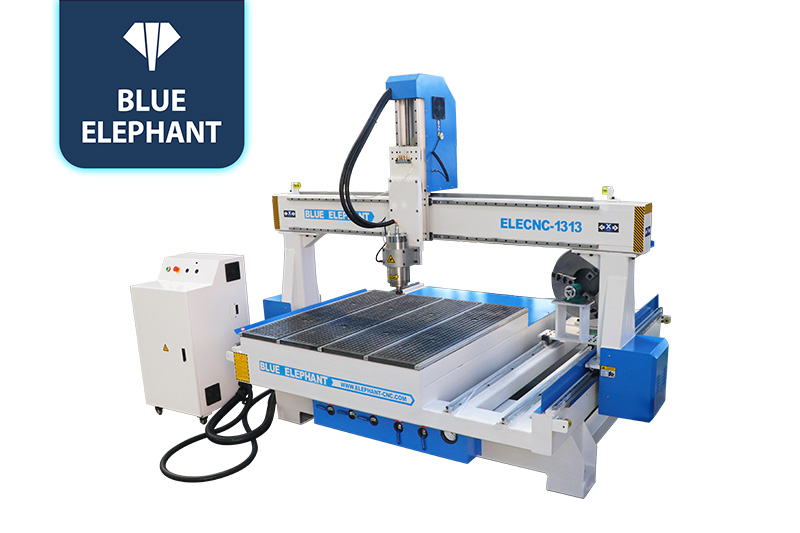

This CNC router has a customized working size of 1.3×1.3×0.4m, which can perfectly meet the customer’s demands.
The rotary device can be used to carve square sticks, rods and other cylindrical parts with larger diameters.
Specifications of this CNC router machine can be customized to meet different processing demands.

Parameters

Model ELECNC1313
X,Y axis travel 1300*1300mm, option: 1300x2500mm, 1500*3000mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 400mm, option: 200mm, 300mm, etc
Spindle type 6kw water cooling spindle
Inverter type 7.5kw inverter
Control system Mach3 controller for 4 axis
Driving system 750w Leadshine hybrid servo motor and driver
Machine structure Heavy duty body with quenching treatment
Work table T-slot & vacuum table
Linear guide Taiwan linear guide
Transmission X,Y axis: Taiwan helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system Semi-auto lubrication system
Tool calibration Tool sensor
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam / Aspire, etc
Command language G Code & M Code
Traveling speed 30m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.05mm
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Get More Parameters

Application

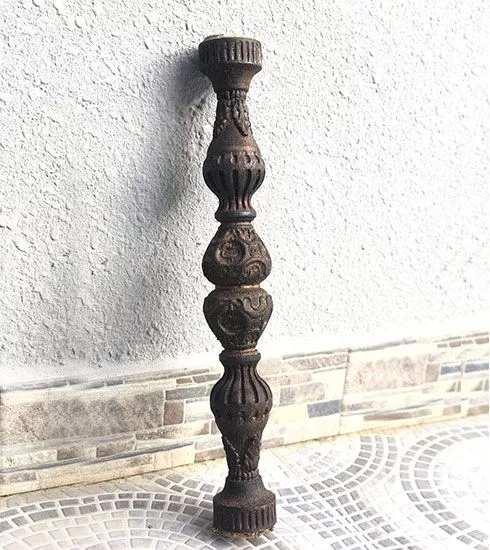

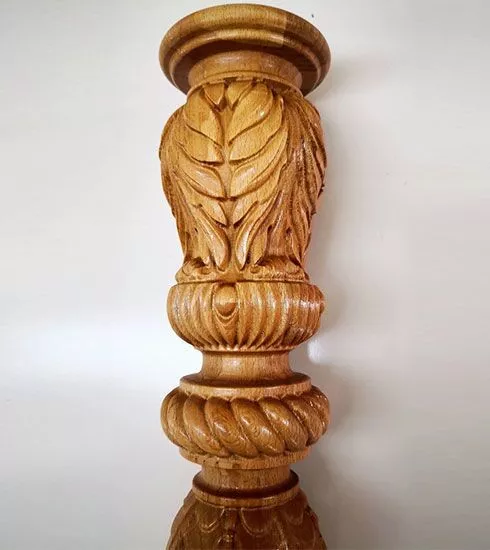

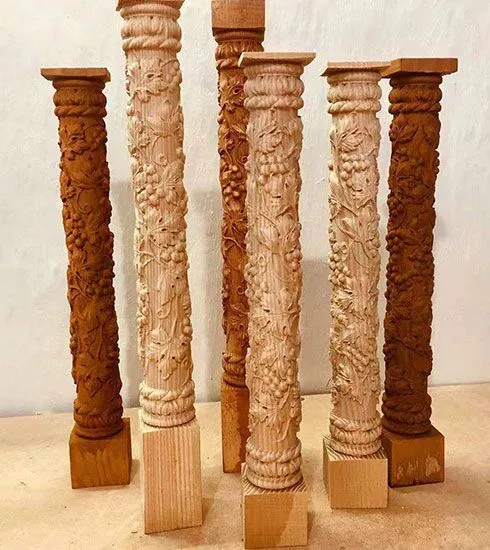

The rotary axis CNC router is the other type of 4 axis CNC router. Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
