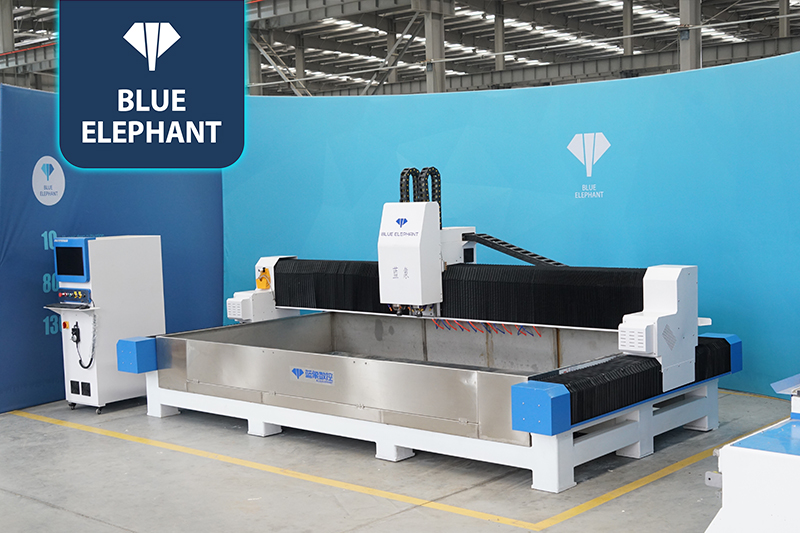

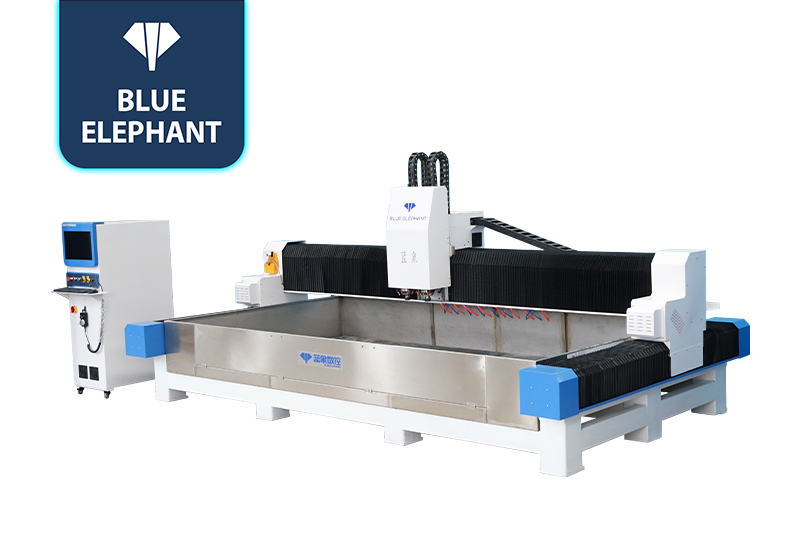

Affordable Two-process CNC Marble Machine Center for Sale in Russia, Denmark

☆This CNC stone processing center is designed with two processes. It has the advantages of low investment cost and high utilization. And it is suitable for various countertop processing.

CNC Machining Center Video

features

  • It can help users realize different stone cutting, edging, polishing, and engraving.
  • The stone countertop edging and engraving can be switched in one-key operation.
  • It can realize fast tool change in 3 seconds, which greatly improves the working efficiency.

Parameters

Model ELECNC1530
X,Y axis travel 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 200mm, option: 300mm, 400mm,etc

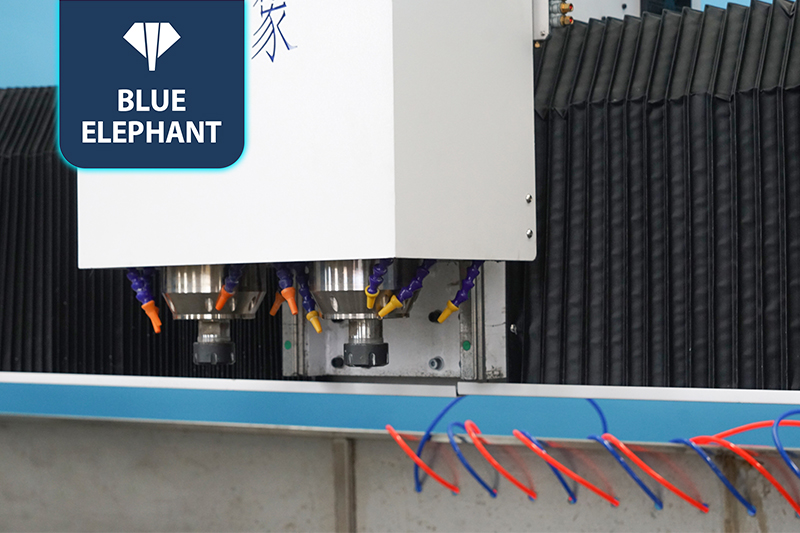

Spindle type 5.5kw water cooling spindle*2,
Inverter type 5.5kw inverter
Control system Weihong 95A-3L controller
Driving system 1.5kw servo motor and driver
Reducer Japan Shimpo reducer
Machine structure Heavy duty body with quenching treatment
Work table Stone special working table
Linear guide Taiwan linear guide
Transmission X,Y axis: Taiwan Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system automatic lubrication system
Tool calibration Autotool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Command Language G Code & M Code
Traveling speed 60m/min
Working speed 0-30m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working voltage 220V 1PH/ 3PH 50HZ/ 60HZ
380V 3PH 50HZ/ 60HZ

Application

Processing materials:
The quartz countertop processing center is mainly used to process quartz stone, marble, granite, artificial stone slabs, etc.
Applications:
Kitchen cabinet countertops, stone coffee table tops, basin hole cutting, bar counters, bathroom countertops, background wall carvings, etc.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
